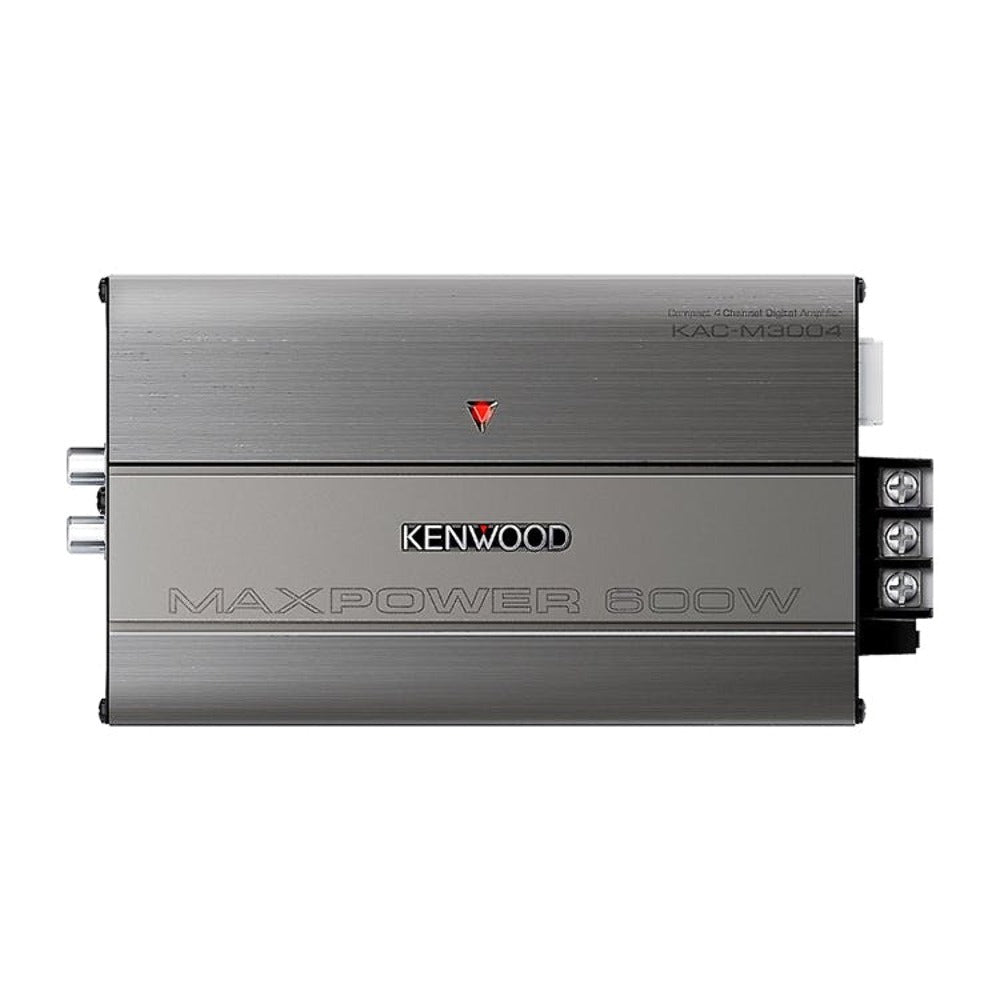

Compact 4-Channel Digital Amplifier
KAC-M3004
General Features:
RMS POWER Output 4and Omega;: 50W x 4
RMS POWER Output 2and Omega;: 75W x 4
RMS POWER Output Bridged: 150W x 2
Dimensions(WxHxD): 6-1/2" x 1-3/4" x 3-7/8"
Singal Sensing Turn-on
Conformal Coating *1
*1: Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
Multi-Application:
Many of todayand rsquo;s powersports have very limited space to work in and tend to be a harsh environment for electronics because of the exposure to outdoor environments. KENWOODand rsquo;s compact performance amplifiers are small in size so they fit even the most limited installation areas. The amplifiers also use a conformal coated main PCB (printed circuit boards) which offer extra layers of protection to help prevent moisture or damp air from damaging the product.
Specs:
| Title | Compact 4 Channel Digital Amplifier | |
|---|---|---|
| Amplifier Type | Class D | |
| CEA-2006 Primary Ratings | Power Output | 50 Watts RMS x 4 at 4 Ohms and and le;1%THD+N |
| Signal-to-Noise Ratio | 76dBA (Reference: 1Watt into 4Ohms) | |
| Maximum Power Output | 600W | |
| Specifications | Signal to Noise Ratio | 89dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency Response | 20Hz-20kHz (+0dB, -1dB) | |
| Input Impedance | 10k ohm | |
| Speaker Impedance | 4and Omega; (2and Omega; to 8and Omega; allowable) | |
| Bridged connection | 4and Omega; to 8and Omega; allowable | |
| Audio Section | Low-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct) |
| High-Pass Filter | Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct) | |
| Filter Selector 1 | LPF-OFF-HPF | |
| RCA Input Sensitivity | 0.2 V - 5.0 V | |
| Speaker Level Input Sensitivity | 4.0 V - 12.0 V | |
| Terminals | Battery and amp; Ground | Screw Type Terminal Block (Ni) (M4) |
| Speaker Output | MOLEX Connector with AWG16 200mm Wire | |
| Line In | RCA (Ni) | |
| General | Dimensions(WxHxD) | '6-1/2 X '1-3/4 X '3-7/8 inch |
| Weight(kg) | - | |
| Operating Voltage | 14.4V（11-16V allowable） | |
| Current Consumption | 22 A | |
| Key Features |
CEA-2006 Compliant Class D 2 Ohms Load Capability Speaker Level Input Signal Sensing Turn-on Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design |
|
| Others |
Triangle Indicator |
|
