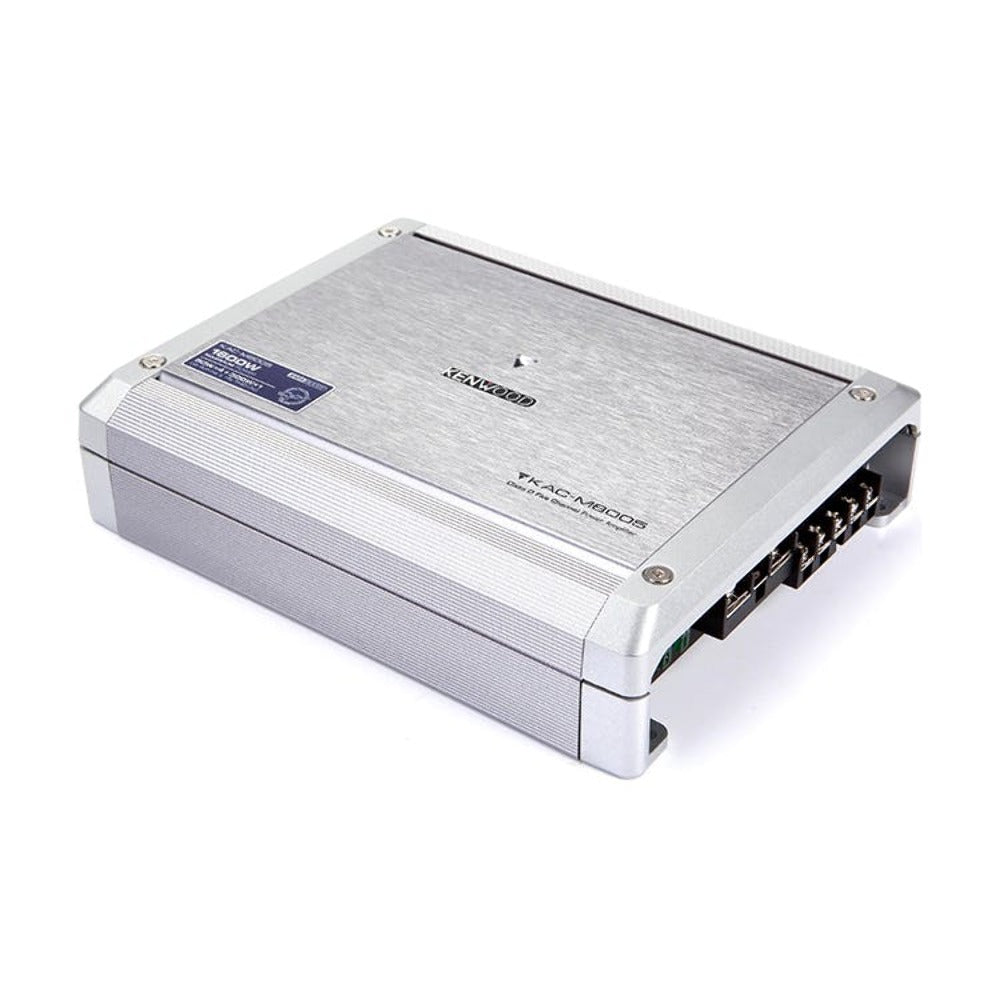

Class D 5-Channel Marine Power Amplifier

KAC-M8005


General Features:

MAX Power 1600W

RMS Power

50W x 4 + 300W (4and Omega;)
and
75W x 4 + 500W (2and Omega;)
and
150W x 2 (Bridged) + 300W (4and Omega;)
Conformal Coating*
Speaker Level Input
Signal Sensing Turn-on
Variable Low and amp; High-pass Filter
Bass Boost
(W)9and rdquo; x (H)2-3/16and rdquo; x (D)7-3/8and rdquo;
* Conformal Coating: Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

Specs:

CEA-2006 Primary Ratings Power Output 50 Watts RMS x 4 + 300 Watts RMS x 1
at 4 Ohms and and le;1%THD+N
Signal-to-Noise Ratio 80dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output MAX POWER 1600W
Rated Power Output at 14.4V A/B (4 Ohms) 50Watts RMS x 4 (4 Ohms, 20-20kHz, and le;1.0% THD)
A/B (2 Ohms) 75Watts RMS x 4 (2 Ohms, 1kHz, and le;1.0% THD)
SUB (4 Ohms) 300Watts RMS x 1 (4 Ohms, 20-200Hz, and le;0.5% THD)
SUB (2 Ohms) 500Watts RMS x 1 (2 Ohms, 100Hz, and le;0.5% THD)
A/B (Bridged 4Ohms) 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, and le;1.0% THD)
Specifications Signal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-50kHz (+0dB, -3dB) A/B
20Hz-200Hz (+0dB, -3dB) SUB
Input Impedance 10k ohm
Speaker Impedance 4and Omega; (2and Omega; to 8and Omega; allowable)
Bridged Connection 4and Omega; to 8and Omega; allowable
Audio Section Low-Pass Filter 50Hz-200Hz, -24dB/oct (SUB)
High-Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
Bass Boost 40Hz, 0dB - +18dB (SUB)
RCA Input Sensitivity 0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity 4.0[V] - 12.0 [V]
Terminals Battery and amp; Ground M6 Screw Type Terminal Block
Speaker Output M4 Screw Type Terminal Block
General Dimensions(WxHxD) 9 x 2-3/16 x 7-3/8 [inch]
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 58[A]
Key Features CEA-2006 Compliant
2 Ohms Load Capability
Speaker Level Input with Signal Sensing Turn-on
Power MOS-FET Switching Power Supply
Extruded Aluminum Heat Sink Design
A B Sub Independent Gain Adjustment
