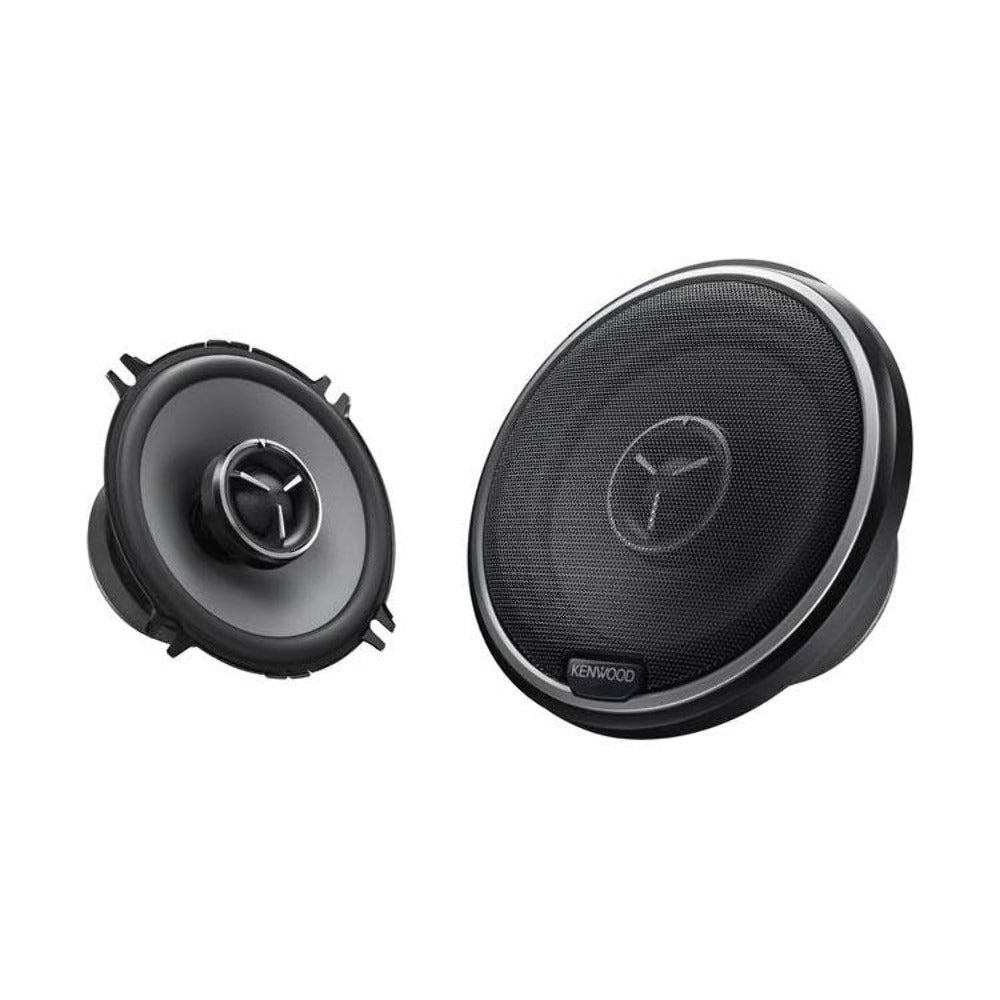

Kenwood Excelon Excelon Series 5-1/4" 2-way car speakers
KFC-X134
Product highlights:
- 2-way car speakers for 5-1/4" locations (pair)
- injection-molded polypropylene woofer
- rubber surround
- 1" soft dome tweeter
- handles up to 40 watts RMS (160 watts peak power)
- frequency response: 76-21,000 Hz
- sensitivity: 87 dB
- mounting depth: 2-3/8"
- grilles included
- warranty: 2 years
- MFR # KFC-X134
What's in the box:
- Two 2-way speakers
- 2 Grilles
- 2 Grille frames
- Two 11" lengths of speaker wire (each has female quick-slides on one end and bare wire on the other)
- Eight 1" Screws
- 8 Speed clips
- Grille putty
- Warranty information
- Specifications and template are on the box
Features and amp; specs
| General | ||
|---|---|---|
| Speaker Size | 5 1/4 | |
| Design | 2-way | |
| Tweeter Design | 1" Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Cloth | |
| Woofer Composition | Injection Molded Polypropylene | |
| Woofer Surround | Rubber | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 87 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 76 - 21k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 40 | |
| Peak Power Handling (Watts) | 160 | |
| Top-mount Depth (Inches) | 2 7/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 4 13/16 | |
| Mounting Height (Inches) | 0.542 | |
