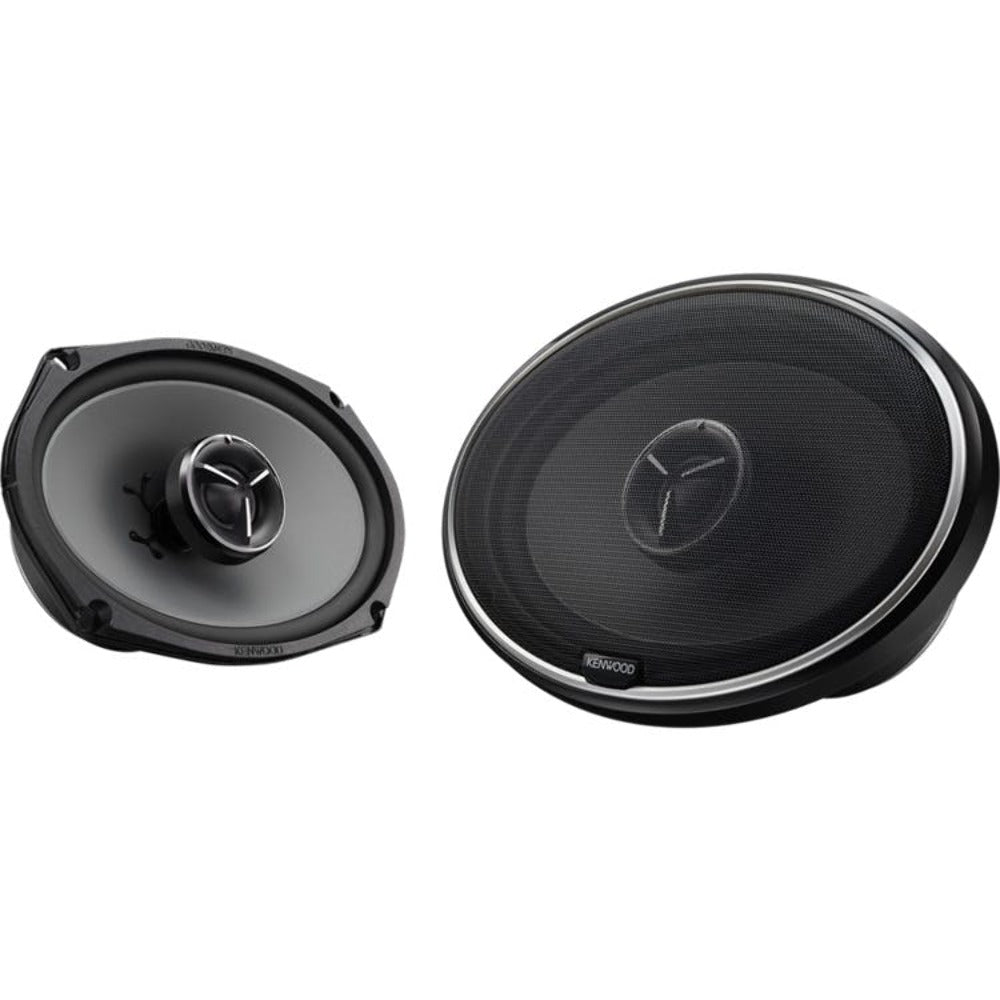

Kenwood Excelonand Excelon Series 6"x9" 2-way car speakers
KFC-X694
Product highlights:
- 2-way car speakers for 6"x9" locations
- injection-molded polypropylene woofer
- rubber surround
- 1-3/16" soft dome tweeter
- handles up to 130 watts RMS (300 watts peak power)
- frequency response: 51-20,000 Hz
- sensitivity: 89 dB
- mounting depth: 3-3/8"
- grilles included
- warranty: 2 years
- MFR # KFC-X694
What's in the box:
- Two 2-way speakers
- 2 Grilles
- 2 Grille frames
- Two 11" lengths of speaker wire (each has female quick-slides on one end and bare wire on the other)
- Eight 1-5/8" Screws
- Eight M4x70mm Machine screws
- 8 Split lock washers
- 8 Large flat washers
- 8 Small flat washers
- Eight M4 Hex nuts
- Grille putty
- Warranty information
- Specifications and template are on the box
Features and amp; specs
| General | ||
|---|---|---|
| Speaker Size | 6X9 | |
| Design | 2-way | |
| Tweeter Design | 1-3/16" Dome | |
| Impedance (Ohms) | 3 | |
| Tweeter Composition | Cloth | |
| Woofer Composition | Injection-Molded Polypropylene | |
| Woofer Surround | Rubber | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 89 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 51 - 20k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 130 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 3 3/8 | |
| Bottom-mount Depth (Inches) | 3 7/8 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.796 | |
