Kenwood Excelon Excelon Series 7" component speaker system
KFC-XP184C
Product highlights:

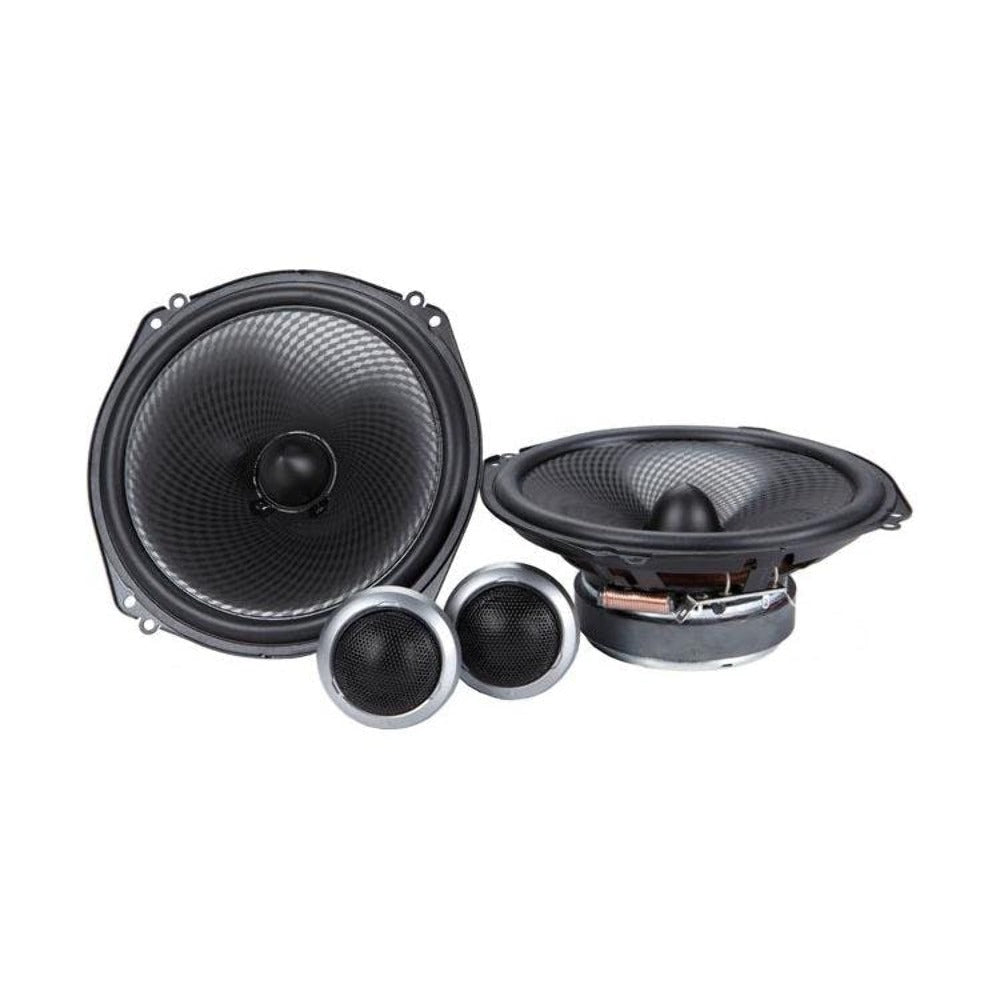

- component speaker system includes 2 woofers and 2 tweeters with inline crossovers
- brackets included for 6-3/4" and 6"x9" locations
- Diamond Array Pattern carbon-polypropylene woofer
- butyl rubber surround
- 1" silk dome tweeter with neodymium magnet
- power range: 6-80 watts RMS (280 watts peak power)
- frequency response: 63-18,000 Hz
- sensitivity: 86 dB
- depth: 2-3/8"
- grilles not included
- warranty: 2 years
- MFR # KFC-XP184C
What's in the box:
- Two Woofers
- 2 Tweeters (each has a 5" Length of wire attached)
- 2 Flush-mount tweeter housings (installed on tweeters)
- 2 Flush-mount retaining clips
- 2 OEM tweeter mounting brackets
- Two 6x9 Adapter brackets (Dodge)
- 2 Multi-purpose adapter brackets (include GM and Toyota applications)
- Two 29" Tweeter wires with integrated crossovers
- Two 11" Woofer wires (each has quick-slides on one end and bare wire on the other)
- Eight 3/4" Self-tapping screws
- Eight 3/8" Self-tapping screws
- Four 5/8" Self-tapping screws
- 2 Wing nuts
- 4 Speed clips
- Adhesive backed foam gaskets
- Instructions (English/ French/ Spanish/ Portuguese)
- Warranty information
- Tweeter templates on box
Features and amp; specs
General | ||
---|---|---|
Speaker Size | 7 | |
Design | 2-way | |
Tweeter Design | 1" Dome | |
Impedance (Ohms) | 4 | |
Tweeter Composition | Silk | |
Woofer Composition | Carbon/Polypropylene | |
Woofer Surround | Rubber | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 86 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 63 - 18k Hz | |
Minimum RMS Wattage | 6 | |
Maximum RMS Wattage | 80 | |
Peak Power Handling (Watts) | 280 | |
Top-mount Depth (Inches) | 2 3/8 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 6 | |
Mounting Height (Inches) | 0.291 |
