Kenwood Excelon Excelon Series 12" 2-ohm component subwoofer


Product highlights:

  • 12" 2-ohm component subwoofer
  • 2-piece polypropylene cone with rubber surround

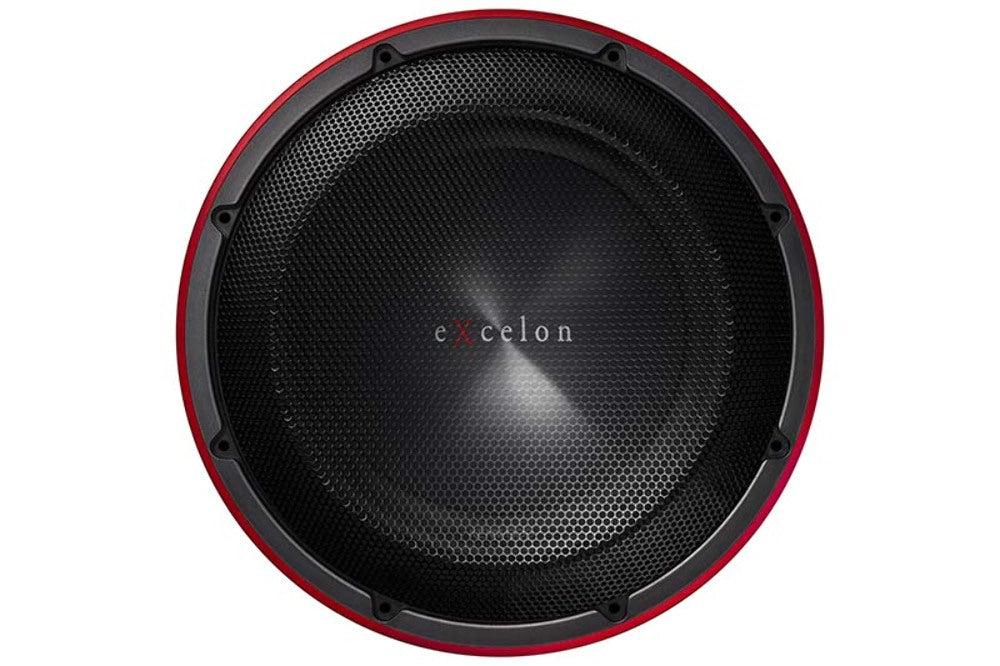

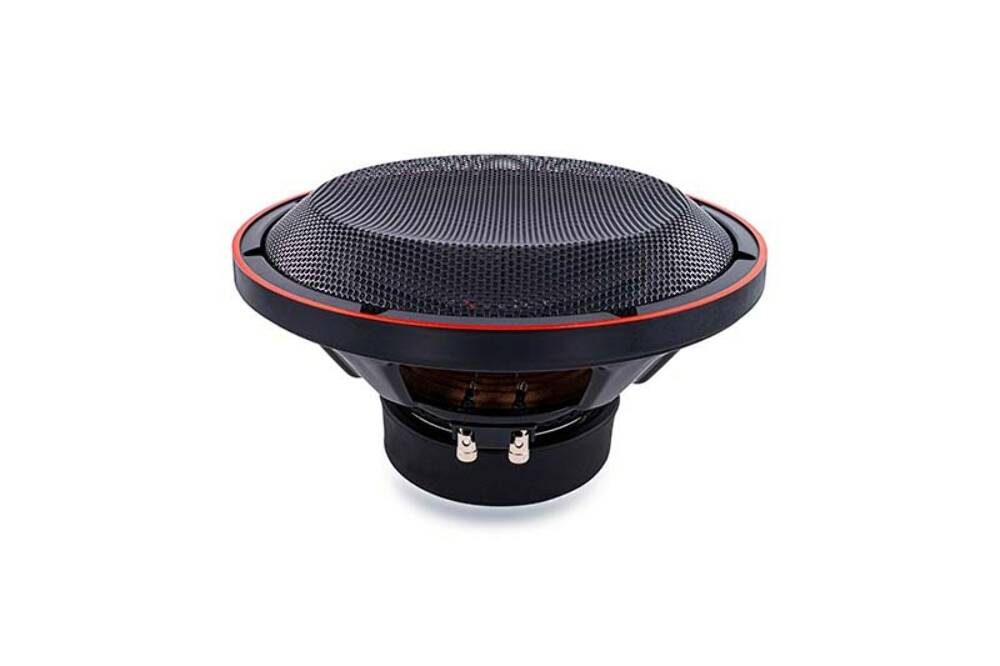

  • grille sold separately
  • power handling: 500 watts RMS (2000 watts peak)
  • frequency response: 25-300 Hz
  • mounting depth: 5-11/16"
  • sealed box volume: 1.25 cubic feet
  • ported box volume: 1.5 cubic feet
  • warranty: 2 years
  • MFR # KFC-XW1221HP

What's in the box:

  • One 12" Subwoofer
  • Trim ring
  • Eight 1-3/8" Screws
  • Adhesive backed foam gasket
  • Connection guide
  • Template on box lid
  • Specs printed on the box

Features and amp; specs:

Size 12 -inch
Impedance 2 ohms
Cone Material Polypropylene over Paper
Surround Material Urethane
Ideal Sealed Box Volume (cubic feet) 1.25
Ideal Ported Box Volume (cubic feet) 1.5
Port diameter (inches) N/A
Port length (inches) N/A
Free-Air No
Dual Voice Coil No
Sensitivity 81 dB at 1 watt
Frequency Response 25 - 300 Hz
Max RMS Power Handling 500
Peak Power Handling (Watts) 2000
Top Mount Depth (inches) 5 7/8
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 10 15/16
Vas (liters) 118
Fs (Hz) 19.5
Qts 0.256
Xmax (millimeters) 8.8
Parts Warranty 2 Years
Labor Warranty 2 Years
