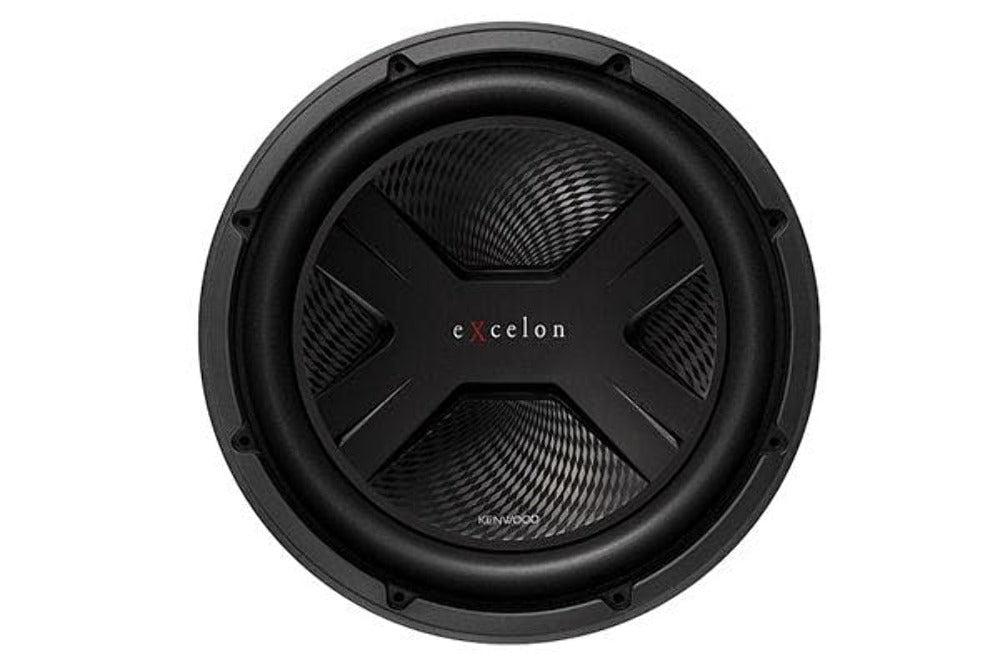

Kenwood Excelon Excelon Series 12" 4-ohm component subwoofer
KFC-XW1241HP
Product highlights:
- 12" 4-ohm component subwoofer
- 2-piece polypropylene cone with rubber surround
- grille sold separately
- power handling: 500 watts RMS (2000 watts peak)
- frequency response: 26-300 Hz
- mounting depth: 5-11/16"
- sealed box volume: 1.25 cubic feet
- ported box volume: 1.5 cubic feet
- warranty: 2 years
- MFR # KFC-XW1241HP
What's in the box:
- One 12" Subwoofer
- Trim ring
- Eight 1-3/8" Screws
- Adhesive backed foam gasket
- Connection guide
- Template on box lid
- Specs printed on the box
Features and amp; specs
| Size | 12 -inch | |
| Impedance | 4 ohms | |
| Cone Material | Polypropylene over Paper | |
| Surround Material | Urethane | |
| Ideal Sealed Box Volume (cubic feet) | 1.25 | |
| Ideal Ported Box Volume (cubic feet) | 1.5 | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | No | |
| Sensitivity | 83 dB at 1 watt | |
| Frequency Response | 26 - 300 Hz | |
| Max RMS Power Handling | 500 | |
| Peak Power Handling (Watts) | 2000 | |
| Top Mount Depth (inches) | 5 7/8 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 10 15/16 | |
| Vas (liters) | 114 | |
| Fs (Hz) | 20.5 | |
| Qts | 0.268 | |
| Xmax (millimeters) | 7.8 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
