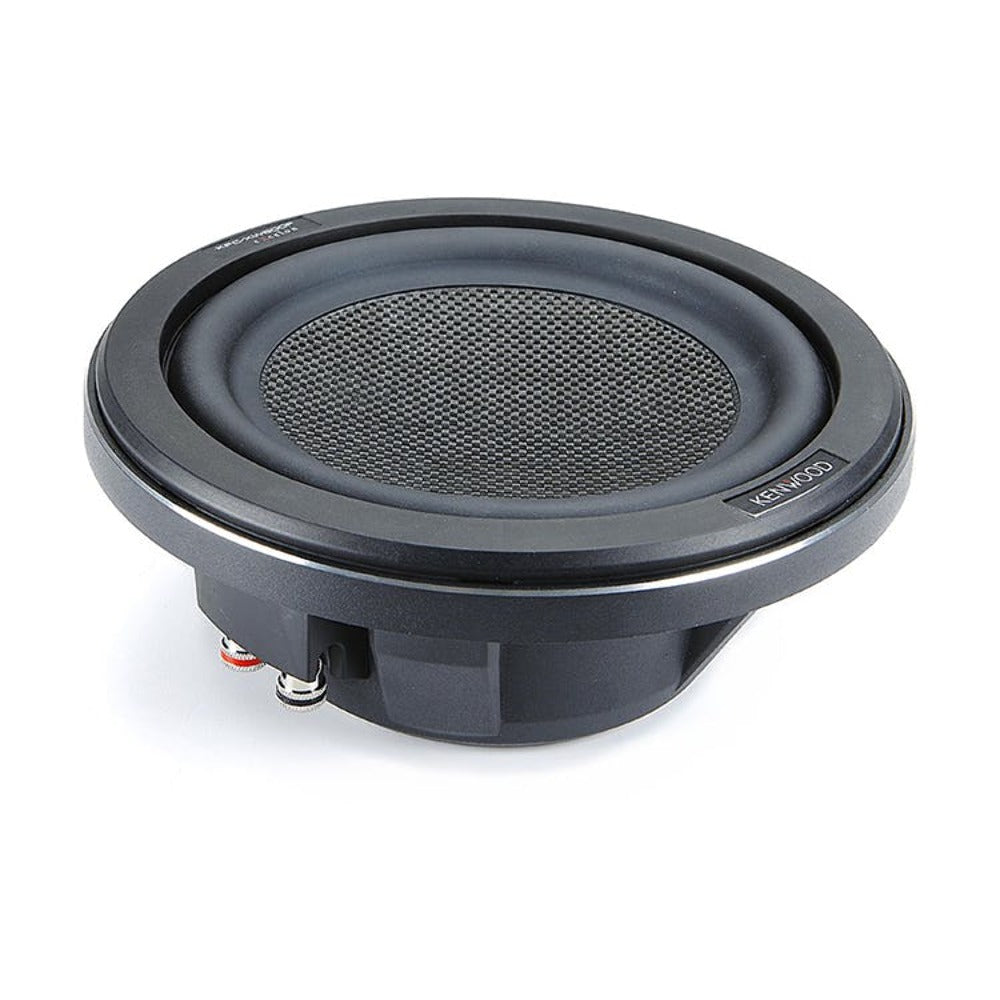

Kenwood Excelon Shallow-mount 8" 4-ohm subwoofer


Product highlights:

  • 8" 4-ohm shallow-mount subwoofer
  • carbon-glass fiber composite cone with butyl rubber surround
  • cast aluminum basket
  • power range: 50-150 watts RMS
  • peak power: 600 watts
  • frequency response: 40-500 Hz
  • sensitivity: 78 dB
  • mounting depth: 2-3/4"
  • sealed box volume: 0.5 cu. ft.
  • ported box volume: 0.5 cu. ft.
  • grille not included
  • warranty: 2 years
  • MFR # KFC-XW800F

What's in the box:

  • One 8" SVC Woofer
  • Rubber concealing ring (installed)
  • Self-adhesive foam strip
  • 8 Mounting screws
  • "Kenwood" logo sticker for woofer
  • "eXcelon logo sticker for woofer
  • Cardboard template
  • Instruction Manual (Eng/Fre/Spa)
  • Warranty Card

Features and amp; specs

Size 8 -inch
Impedance 4 ohms
Cone Material Carbon-glass fiber
Surround Material Butyl rubber
Ideal Sealed Box Volume (cubic feet) 0.5
Ideal Ported Box Volume (cubic feet) 0.5
Port diameter (inches) N/A
Port length (inches) N/A
Free-Air No
Dual Voice Coil No
Sensitivity 78 dB at 1 watt
Frequency Response 40 - 500 Hz
Max RMS Power Handling 150
Peak Power Handling (Watts) 600
Top Mount Depth (inches) 2 3/4
Bottom Mount Depth (inches) 3 5/16
Cutout Diameter or Length (inches) 7 3/16
Vas (liters) 10.7
Fs (Hz) 43
Qts 0.812
Xmax (millimeters) 6.5
Parts Warranty 2 Years
Labor Warranty 2 Years
