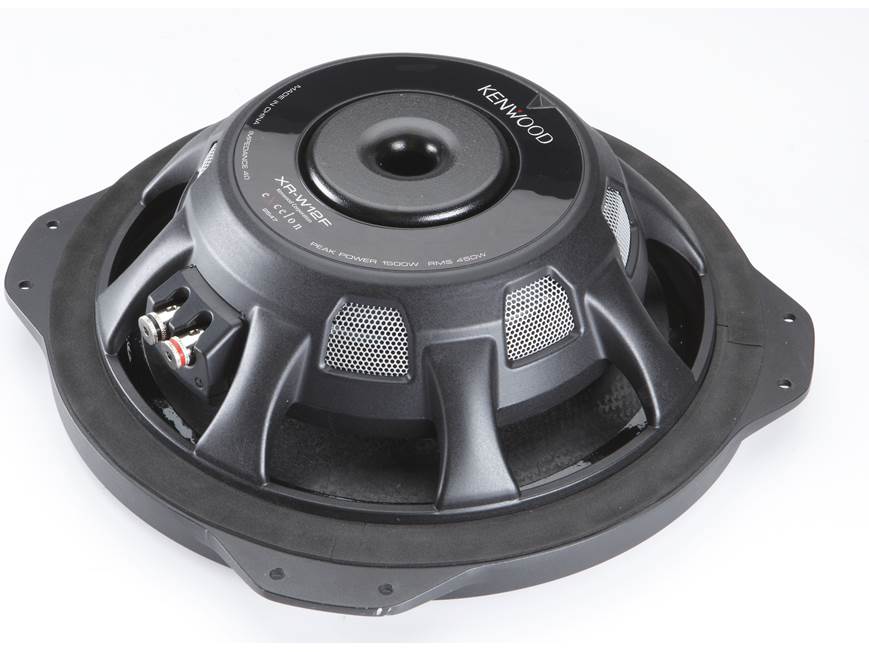

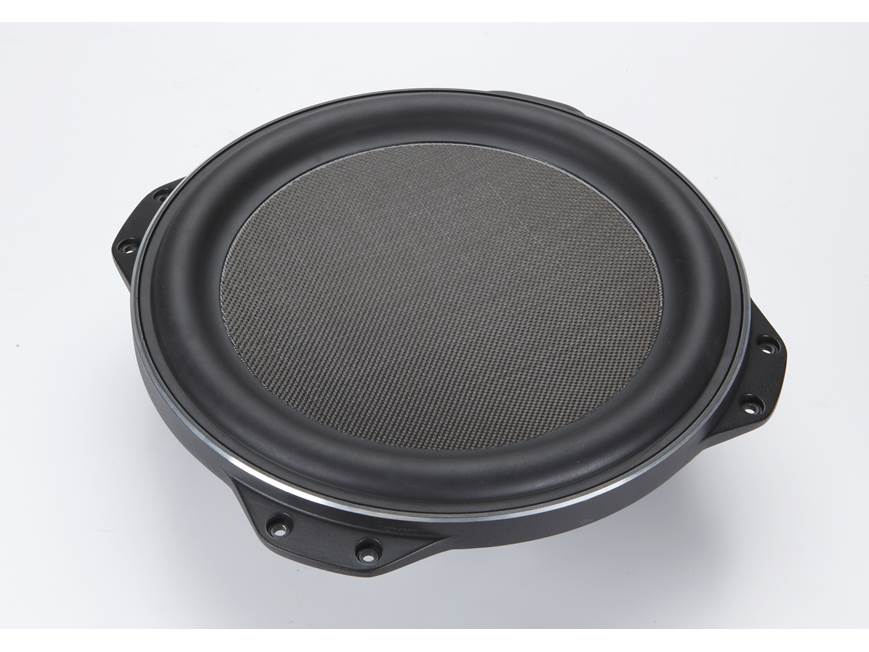

Kenwood Excelon Shallow-mount 12" 4-ohm subwoofer
XR-W12F
Product highlights:
- 12" 4-ohm shallow-mount subwoofer

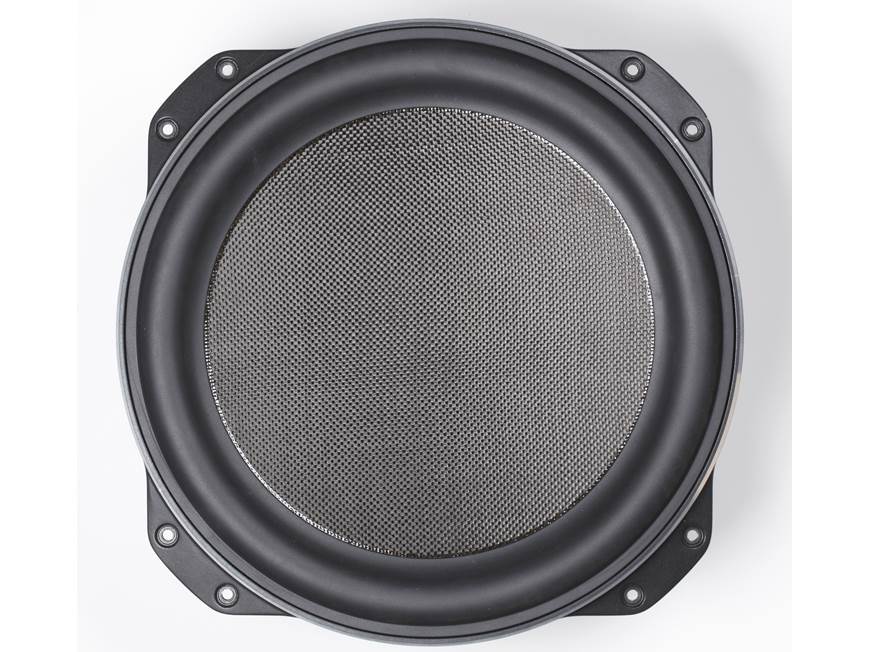

- carbon-glass fiber composite cone with butyl rubber surround
- cast aluminum basket
- push terminals handle up to 8-gauge wire
- power range: 50-450 watts RMS
- peak power: 1,500 watts
- frequency response: 38-200 Hz
- sensitivity: 83.5 dB

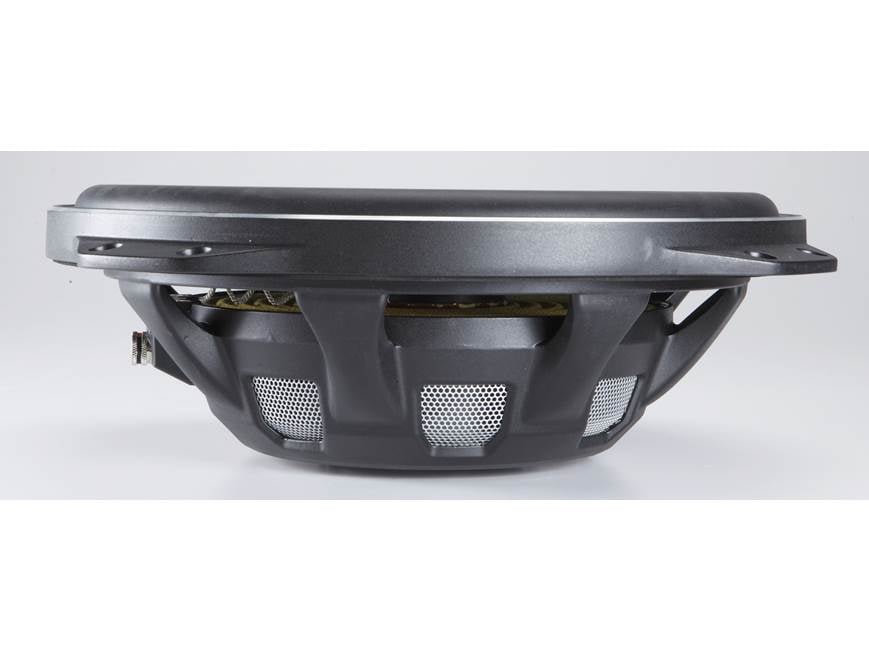

- mounting depth: 3-7/16"
- grille not included
- warranty: 2 years
- MFR # XR-W12F
What's in the box:
- One 12" SVC Woofer
- Eight 1-1/8" Self-tapping screws
- Cardboard template
- Instruction manual (English/ French/ Spanish/ Portuguese)
- Warranty information
Features and amp; specs
Size | 12 -inch | |
Impedance | 4 ohms | |
Cone Material | Carbon-glass fiber | |
Surround Material | Rubber | |
Ideal Sealed Box Volume (cubic feet) | 0.8 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity | 83.5 dB at 1 watt | |
Frequency Response | 38 - 200 Hz | |
Max RMS Power Handling | 450 | |
Peak Power Handling (Watts) | 1500 | |
Top Mount Depth (inches) | 3 7/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 11 | |
Vas (liters) | 118.2 | |
Fs (Hz) | 23 | |
Qts | 0.566 | |
Xmax (millimeters) | 8.2 | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years |
