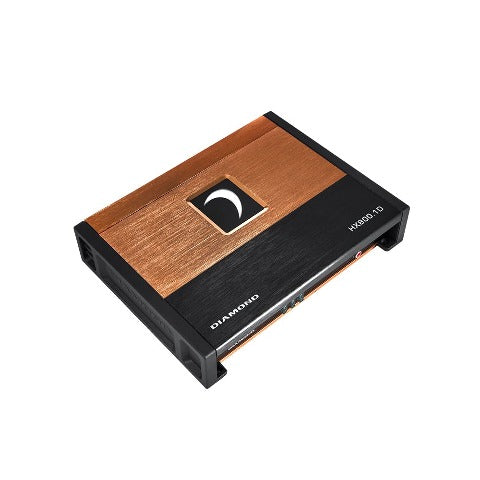

Diamond Audio HX800.1D HEX Mono Class D Subwoofer Amplifier

Diamond Audio HX800.1D HEX Mono Class D Subwoofer Amplifier

Diamond Audio
DMAHX800.1D
3 In Stock
$619.99
$619.99
$619.99
Diamond Audio HX800.1D HEX Mono Class D Subwoofer Amplifier

Diamond Audio

Diamond Audio HX800.1D HEX Mono Class D Subwoofer Amplifier

$619.99
Diamond Audio HX800.1D HEX Mono Class D Subwoofer Amplifier

Diamond Audio

Diamond Audio HX800.1D HEX Mono Class D Subwoofer Amplifier

$619.99
Description

HEX Mono Class D Subwoofer Amplifier

HX800.1D

  • Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
  • 4-Layer PCB Board with Balanced Differential Inputs
  • Full Range Class D IR Chipset
  • "SNAP" Capacitors used Throughout the Circuit
  • Audiophile Grade High Tolerance Components
  • Spring Steel FET Clips Provide a Cleaner Board Design
  • Illuminated Logo / Fully Concealed Mounting
  • Output Clip Indicators for Precise Set-Up
  • Fine Tuned Fully Variable Crossovers and Phase Control
  • Top Mounted Controls for Convenient Amplifier Adjustment

Specifications:

RMS Power (4 ohm) 340 W RMS
RMS Power (2 ohm) 560 W RMS
RMS Power (1 ohm) 800 W RMS
Topology Class D
Power Supply Full PWM
Power Supply Threshold 10.0DVC - 17.0DVC
Idle Current (0.7A)
THD (1KHz @4ohm) 0.01%
S-N Ratio (A-weighted @ 1W) -80dBA
S-N Ratio (A-weighted @ 1W) -95dBA
Input Sensitivity - Low Input Level 200mV - 5.0V
Input Sensitivity - High Input Level N/A
Input Impedance - Low Input Level 20 Kohm
Impedance - High Input Level N/A
Output Impedance 0.011ohm
Damping Factor (50Hz @ 4ohm) >250
Bandwidth (-3dB) 10Hz-300Hz
Crossover (-12 dB/ Oct) - Variable High Pass N/A
Crossover (-12 dB/ Oct) - Variable Low Pass 30Hz-300Hz
Crossover (-12 dB/ Oct) - Variable Sub-Sonic 10Hz-55Hz@12dB
Fuse Rating (ATC) 30A X 3
Dimentions- Length x Width x Height (inches) 9.9″ x 7.67″ x 2″
Dimentions- Length x Width x Height (mm) 252 x 195 x 51.5 mm
Fitment
