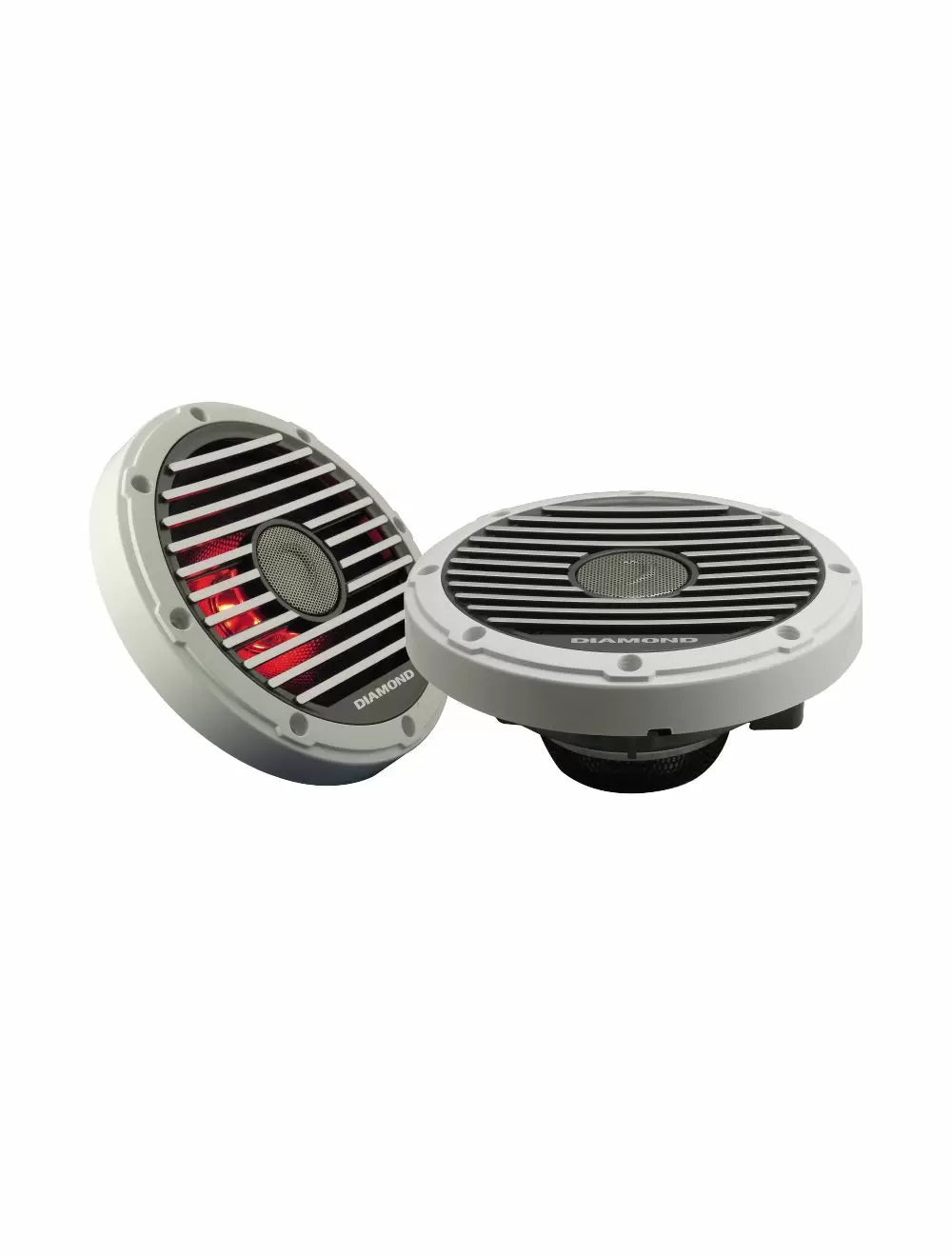

Diamond Audio HXM8 8" Marine Coaxial 25mm Titanium Dome Tweeter

Diamond Audio HXM8 8" Marine Coaxial 25mm Titanium Dome Tweeter

Diamond Audio
DMAHXM8
4 In Stock
$489.99
$489.99
$489.99

Universal Fit
This product may require modification.
 More payment options
Diamond Audio HXM8 8" Marine Coaxial 25mm Titanium Dome Tweeter

Diamond Audio

Diamond Audio HXM8 8" Marine Coaxial 25mm Titanium Dome Tweeter

$489.99
Diamond Audio HXM8 8" Marine Coaxial 25mm Titanium Dome Tweeter

Diamond Audio

Diamond Audio HXM8 8" Marine Coaxial 25mm Titanium Dome Tweeter

$489.99
Description

8" Marine Coaxial 25mm Titanium Dome Tweeter

HXM8

Manufactured to IP65 marine grade compliant specifications - Bridge mounted, 25mm titanium dome neodymium tweeter - Neodymium motor structure used on 5.25, 6.5 and 8 “ mid-woofers - Thermal molded, waterproof, Kevlar® cone - Radial zip-ring to enhance high frequency reproduction - UV-treated poly carbonate cloth surround - Thermal molded, poly carbonate fiber spider is moisture and fatigue resistant - High temperature, UV-treated, injected composite basket - Waterproof wire management includes ultra-flexible high-strand PVC jacketed wire - Integrated RGB LED lights - Integrated 12dB per octave crossover - White and Black Grills Included
  • 120W RMS
  • Mounting Diameter: 7 inches / 178mm
  • Mounting Depth: 3.01 inches / 76.5mm
  • Over-All Diameter: 8.58" / 218mm

Specifications:

Nominal Diameter - inch (mm) 8″ (203)
Description 3-Way
Nominal Impedance (Ohms) 4ohm
Frequency Response (Hz) 35-23kHz
Kapton Voice Coil Diameter - inch (mm) 1.52 (38.55)
Power Handling - Watts (RMS/Peak) 120/500
Fs - Free Air Resonance (Hz) 58
Qts 0.78
Vas - cu. ft. (Liter) 0.689 (19.5)
Sensitivity (1W/1M) 92dB
Sensitivity (2.83V/1M) 95dB
Xmax - Inch (mm) 0.2 (5)
Mounting Diameter 7″ (178mm)
Mounting Depth 3.01″ (76.4mm)
Grille Yes
Fitment
Universal Fit
This product may require modification.
Read More
