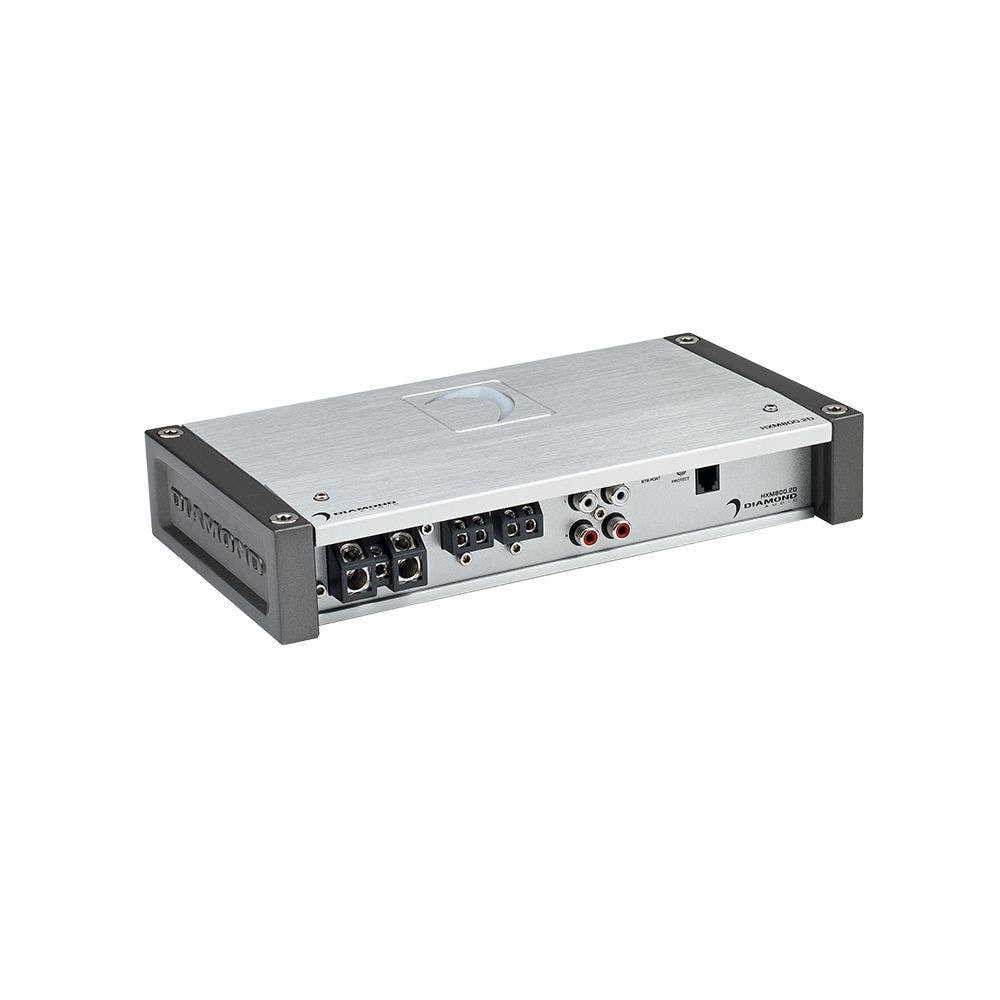

Diamond Audio HXM800.2D HXM 2-Channel Full Range Class D Amplifier

Diamond Audio HXM800.2D HXM 2-Channel Full Range Class D Amplifier

Diamond Audio
DMAHXM800.2D
3 In Stock
$619.99
$619.99
$619.99

No Fitment Data
This product doesn't have fitment application data. Please verify fitment manually.
 More payment options
Diamond Audio HXM800.2D HXM 2-Channel Full Range Class D Amplifier

Diamond Audio

Diamond Audio HXM800.2D HXM 2-Channel Full Range Class D Amplifier

$619.99
Diamond Audio HXM800.2D HXM 2-Channel Full Range Class D Amplifier

Diamond Audio

Diamond Audio HXM800.2D HXM 2-Channel Full Range Class D Amplifier

$619.99
Description

HXM 2-Channel Full Range Class D Amplifier

HXM800.2D

  • 300 W x 2 @ 4ohm
  • 400 W x 2 @ 2ohm
  • 800 W x 1 @ 4ohm bridged
  • S/N: ≤ 98.9 dBA / THD: .05%
  • Dimensions:
  • 9.74 x 5.28 x 1.75 inches
  • 247 x 134 x 45 mm
  • Remote Level Control Included

Specifications:

RMS Power (2 ohm) 400W X 2
RMS Power (4 ohm) 300 W X 2
Bridged (mono 4 ohm) 800 W X 1 (4ohm Only)
Topology Full-Range Class D
Power Supply Full PWM
Power Supply Threshold 10.0DVC - 17.0DVC
Idle Current (0.7A)
THD 4 (1KHz @4ohm) 0.05%
S-N Ratio (A-weighted @ 1W) -77.2dBA
S-N Ratio (A-weighted @ 1W) -98.9dBA
Input Sensitivity - Low Input Level 0.2mV - 10.0V
Input Sensitivity - High Input Level YES- UP to 25 W RMS
Input Impedance - Low Input Level 22 Kohm
Impedance - High Input Level N/A
Output Impedance 0.047ohm
Damping Factor (50Hz @ 4ohm) >250
Bandwidth (-3dB) 10Hz-350Hz
Crossover (-12 dB/ Oct) - Variable High Pass 40Hz-400Hz
Crossover (-12 dB/ Oct) - Variable Low Pass 40Hz-400Hz
Crossover (-12 dB/ Oct) - Variable Sub-Sonic N/A
Fuse Rating (ATC) N/A
Dimentions- Length x Width x Height (inches) 9.74″ x 5.27″ x 1.75″
Dimentions- Length x Width x Height (mm) 247.6 x 133.9 x 44.5 mm
