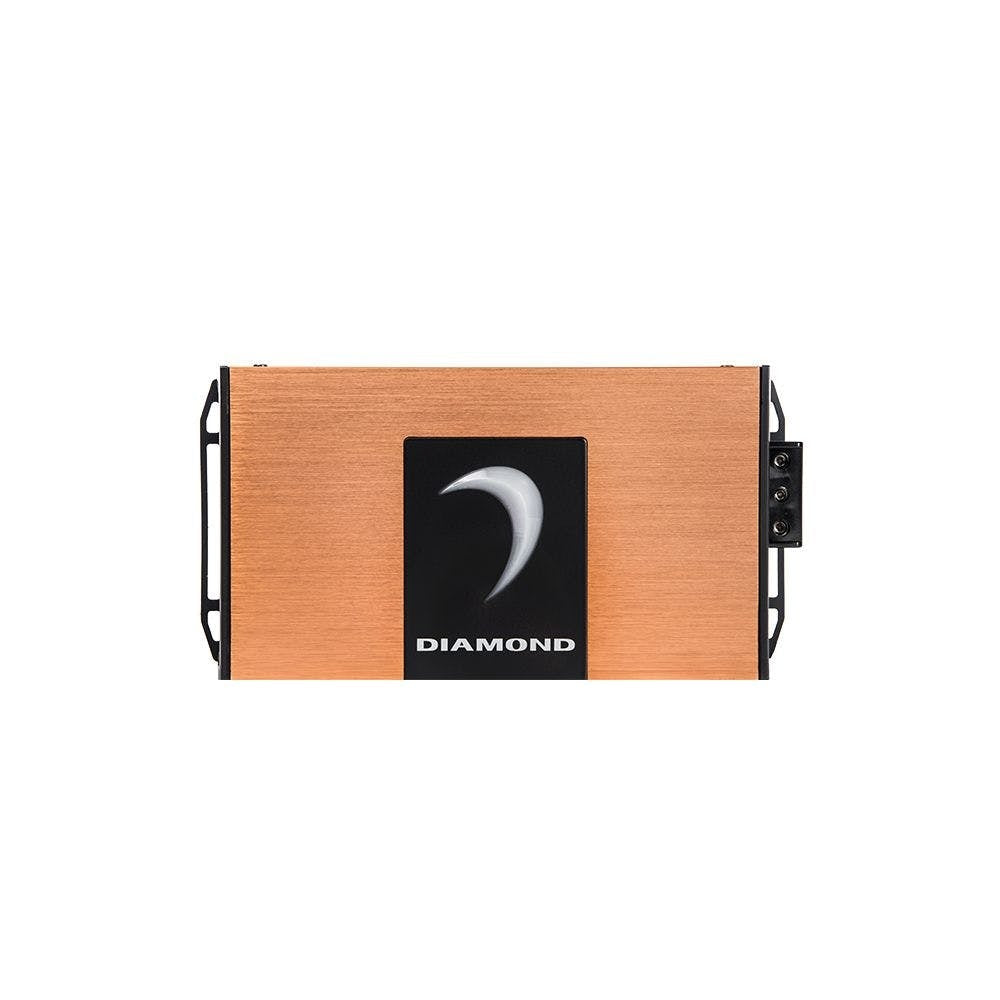

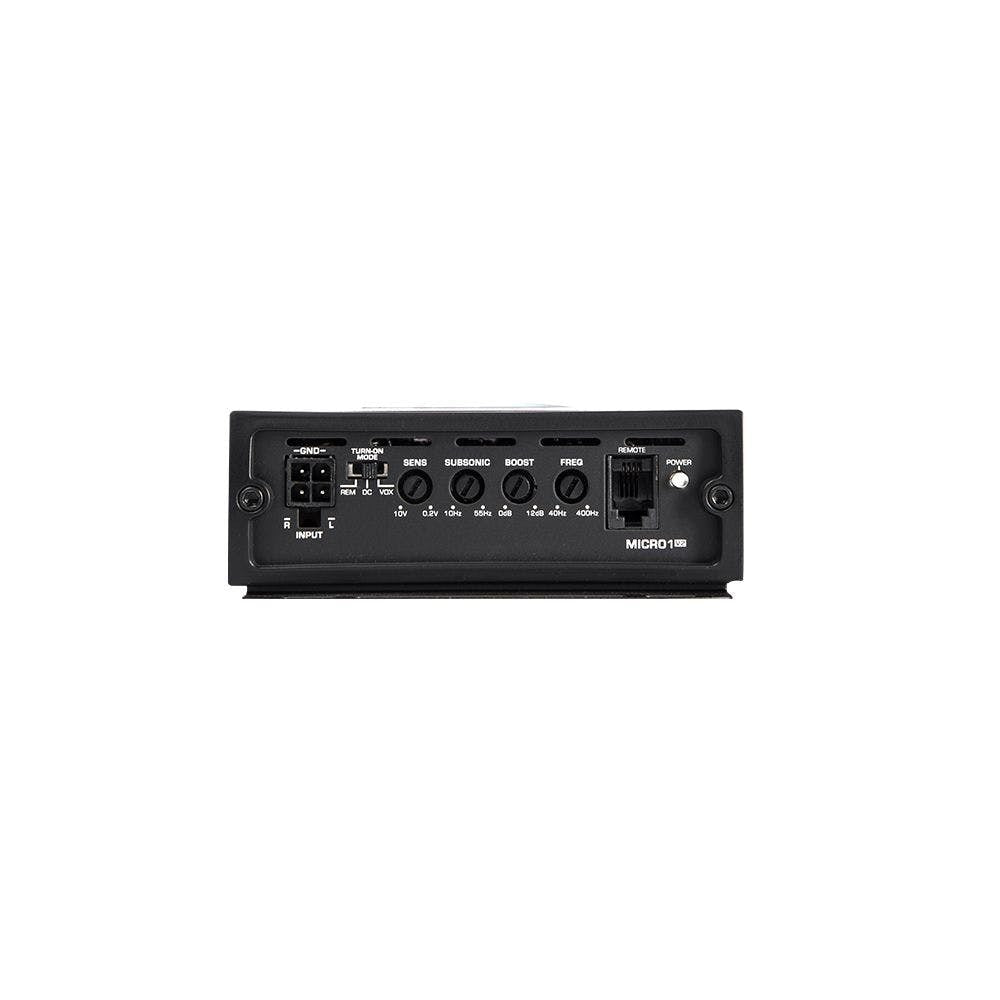

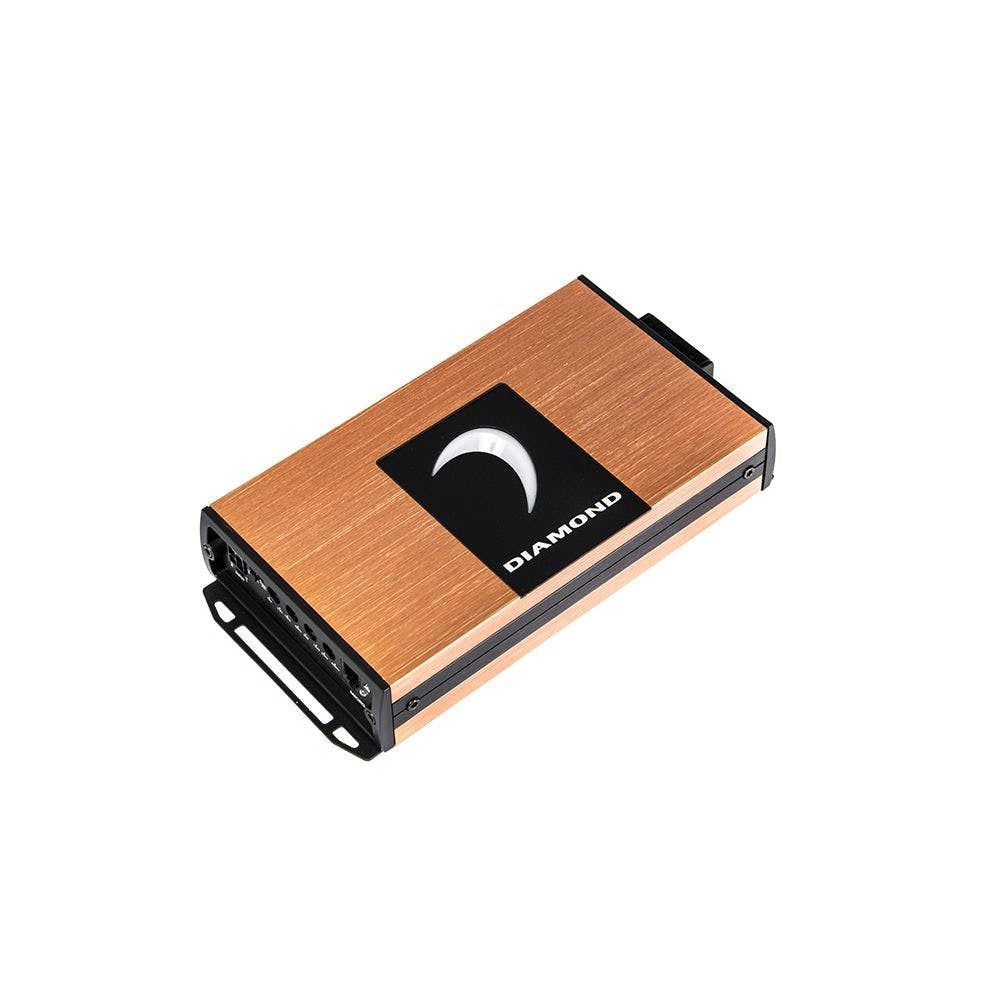

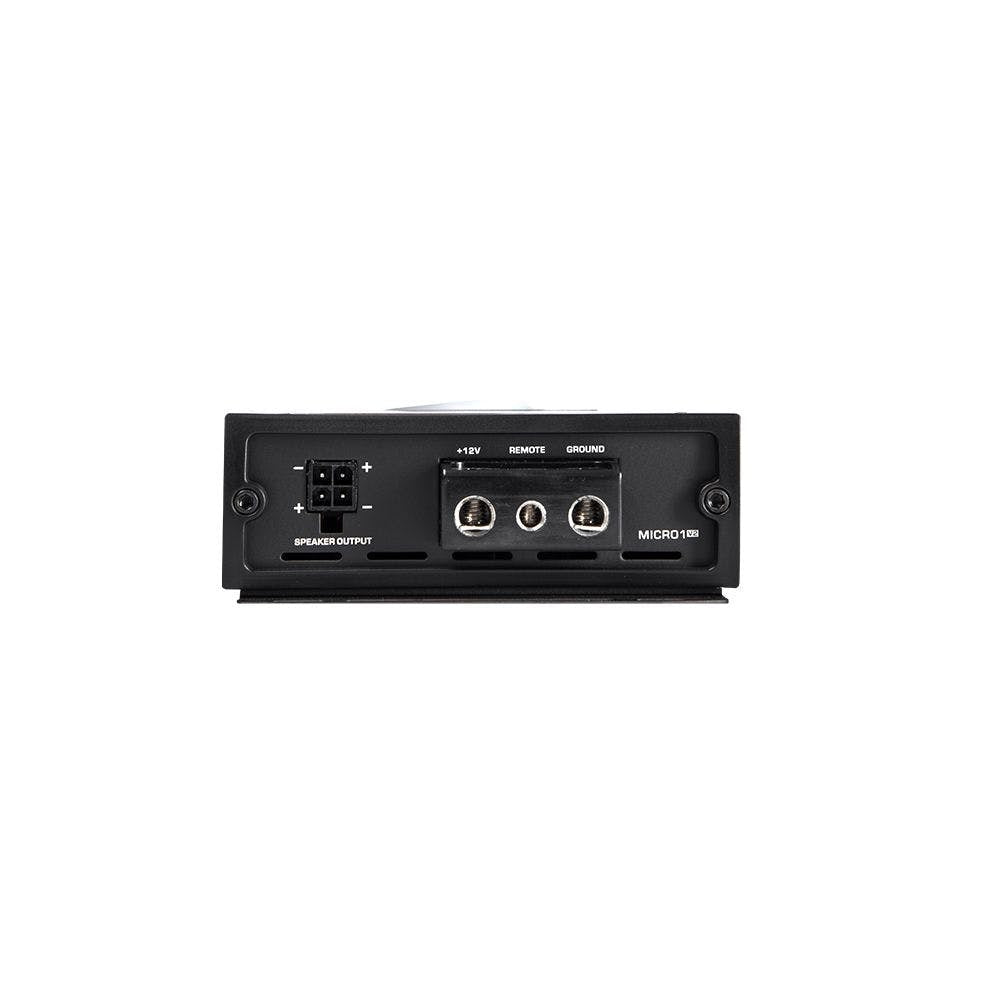

Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier
Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier
Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier
Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier
Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier

Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier

Diamond Audio
DMAMICRO1V2
8 In Stock
$369.99
$369.99
$369.99

Universal Fit
This product may require modification.
Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier

Diamond Audio

Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier

$369.99
Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier
Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier
Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier
Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier
Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier

Diamond Audio

Diamond Audio MICRO1V2 MICRO Mono Full Range Class D Sub Amplifier

$369.99
Description

MICRO Mono Full Range Class D Sub Amplifier

MICRO1V2

  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4 layer Glass PC Board
  • ICAD circuit provides superior overload protection
  • Frequency response 20 Hz - 30kHz
  • Variable 12db crossovers
  • Bridgeable / 2ch-4ch switch control
  • BTR (BlueTooth Receiver enabled)
  • MICRO Bass boost +12DB @45Hz
  • Premium 8 and 4 gauge power connections
  • Multi channels / Mono channel

Specifications

RMS Power (2 ohm) 300 W
RMS Power (4 ohm) 175 W
Bridged (mono 4 ohm) 175 W
Topology Full Range Class D
Power Supply Full PWM
Power Supply Threshold 10.0DVC - 17.0DVC
Idle Current (0.7A)
THD 4 (1KHz @4ohm) 0.5%
S-N Ratio (A-weighted @ 1W) -85dBA
S-N Ratio (A-weighted @ 1W) -101.1dBA
Input Sensitivity - Low Input Level 200mV - 10.0V
Input Sensitivity - High Input Level N/A
Input Impedance - Low Input Level 20 Kohm
Impedance - High Input Level 20 Kohm
Output Impedance 0.011ohm
Damping Factor (50Hz @ 4ohm) >250
Bandwidth (-3dB) 10Hz-350Hz
Crossover (-12 dB/ Oct) - Variable High Pass N/A
Crossover (-12 dB/ Oct) - Variable Low Pass 40Hz-400Hz
Crossover (-12 dB/ Oct) - Variable Sub-Sonic 10Hz-55Hz
Fuse Rating (ATC) 25A
Dimentions- Length x Width x Height (inches) 7.89″ x 4.0″ x 1.46″
Dimentions- Length x Width x Height (mm) 200.5 x 103 x 37.2 mm
Fitment
Universal Fit
This product may require modification.
