Description

MICRO 4-Channel Full Range Class D Amplifier

SKU: DMAMICRO4V2

  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4-layer Glass PC Board
  • ICAD circuit provides superior overload protection
  • Frequency response 20 Hz - 30kHz
  • Variable 12db crossovers
  • Bridgeable / 2ch-4ch switch control
  • BTR (Bluetooth receiver enabled)
  • MICRO Bass boost +12DB @45Hz
  • Premium 8 and 4-gauge power connections
  • Multi channels / Mono channel

Specifications

RMS Power (2 ohm) 150 W X 4
RMS Power (4 ohm) 80 W X 4
Bridged (mono 4 ohm) 300 W X 2
Topology Full Range Class D
Power Supply Full PWM
Power Supply Threshold 10.0DVC - 17.0DVC
Idle Current (0.7A)
THD 4 (1KHz @4ohm) 0.5%
S-N Ratio (A-weighted @ 1W) -85dBA
S-N Ratio (A-weighted @ 1W) -101.1dBA
Input Sensitivity - Low Input Level 200mV - 10.0V
Input Sensitivity - High Input Level N/A
Input Impedance - Low Input Level 20 Kohm
Impedance - High Input Level 20 Kohm
Output Impedance 0.018ohm
Damping Factor (50Hz @ 4ohm) >70
Bandwidth (-3dB) 10Hz-35Hz
Crossover (-12 dB/ Oct) - Variable High Pass 40Hz-400Hz
Crossover (-12 dB/ Oct) - Variable Low Pass 40Hz-400Hz
Crossover (-12 dB/ Oct) - Variable Sub-Sonic N/A
Fuse Rating (ATC) 40A

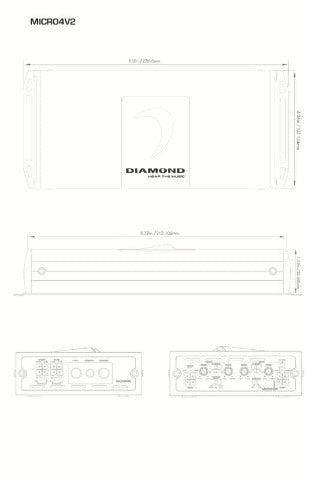

Dimentions- Length x Width x Height (inches) 9.07″ x 4.0″ x 1.46″
Dimentions- Length x Width x Height (mm) 230.5 x 103 x 37.2 mm
