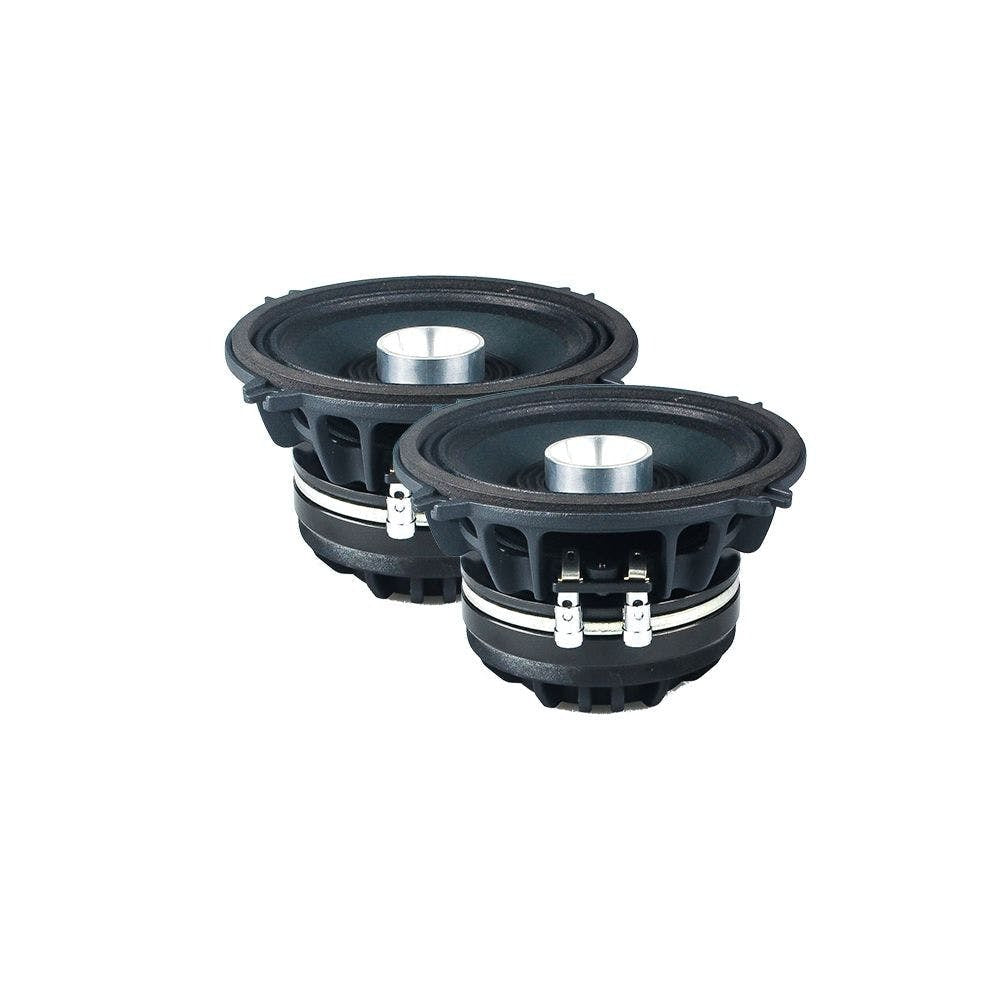

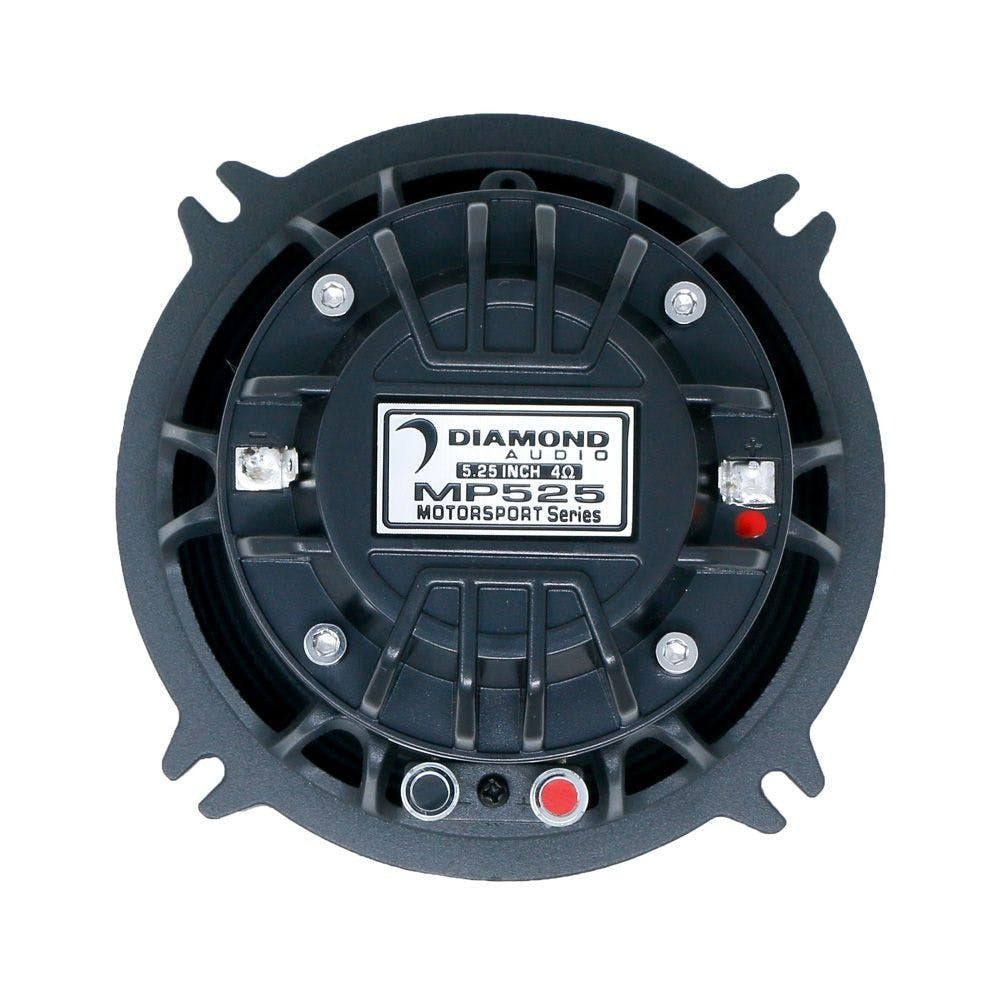

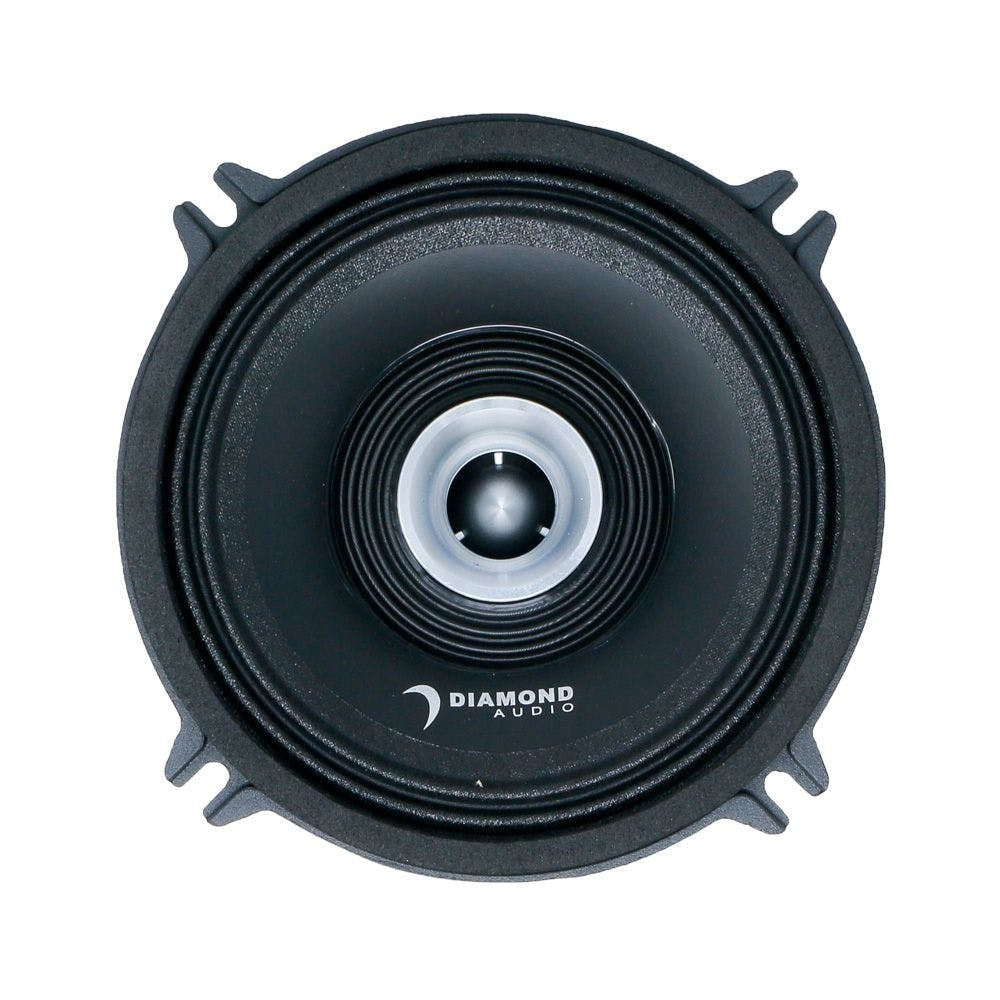

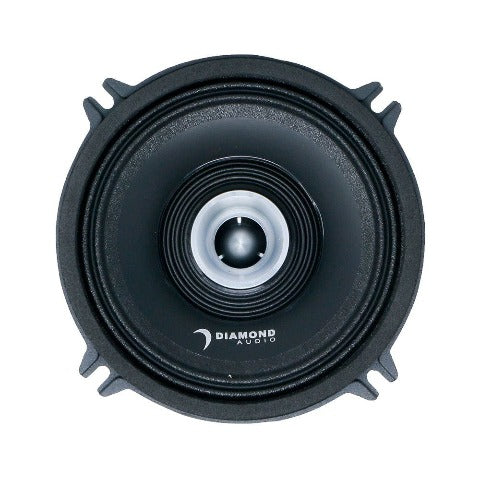

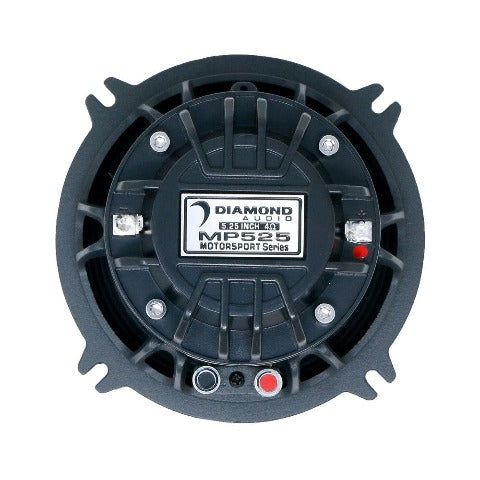

Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker

Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker

Diamond Audio
DMAMP525
3 In Stock
$440.99
$489.99
$440.99
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker

Diamond Audio

Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker

$489.99 $440.99
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker
Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker

Diamond Audio

Diamond Audio MP525 5.25" PRO Full-Range Co-Ax Horn Speaker

$489.99 $440.99
Description

5.25" PRO Full-Range Co-Ax Horn Speaker

MP525

  • 300W MAX/150W RMS Power Handling
  • Ferrite Strontium High Temp Magnet structure
  • Heavy Duty Die-cast Aluminum Basket
  • Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
  • 1.5" Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
  • 1.0" Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Tweeter
  • Frequency Response: 110Hz -18Khz
  • High Sensitivity 101dB 1W/1M
  • 12dB 2nd Order Filter Crossover for Better Protection of the Tweeter
  • Mounting Depth: 2.99" / 76mm
  • Mounting Diameter: 4.68" / 119mm

Specifications

SPL (dB-MidBass) 92.3
SPL (dB-Tweeter) 107
Re(ohm)[series] 3.2
Qms 7.55
Qes 0.64
Qts 0.59
Fs(Hz) 168.2
Vas(L) 1.5
Cms(mm/N) 0.13
Mms(g) 6.8
Sd(m2) 89.9
BL(T*M) 6.0
Xmax(mm) 1.0
Pwr(W) NOM/MAX 150/**300
Total Diameter 5.91 (150) in. (mm)
Mounting Diameter 4.68 (119) in. (mm)
Mounting Depth 2.99 (76) in. (mm)
Total Depth 3.26 (83) in. (mm)
Magnet Diameter 3.54 (90) in. (mm)
