Description

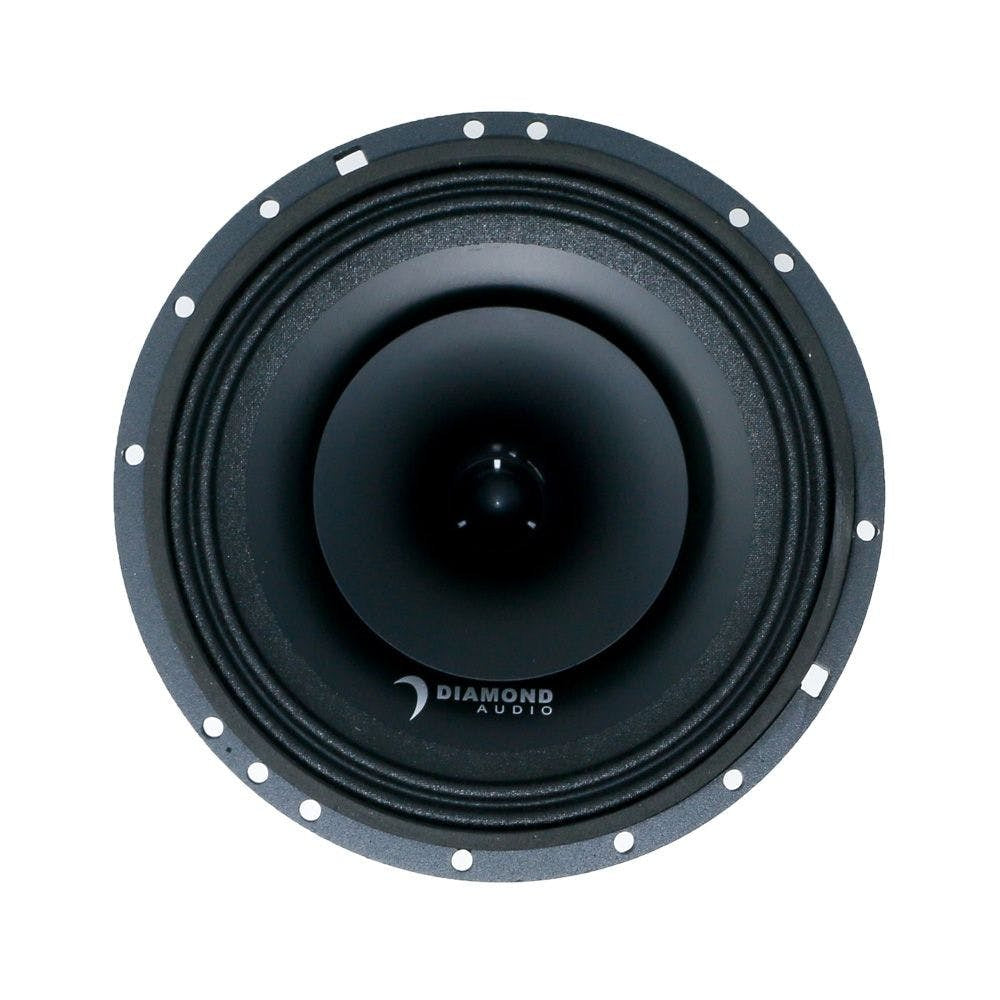

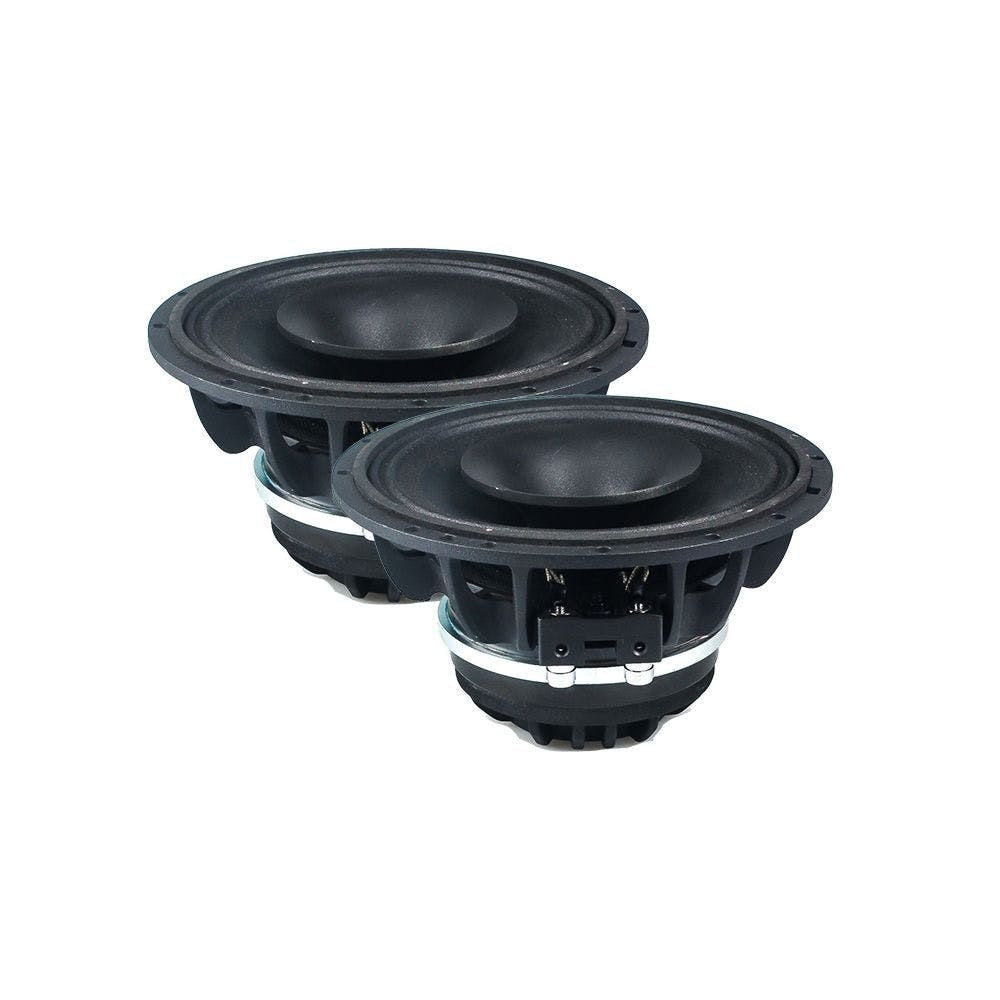

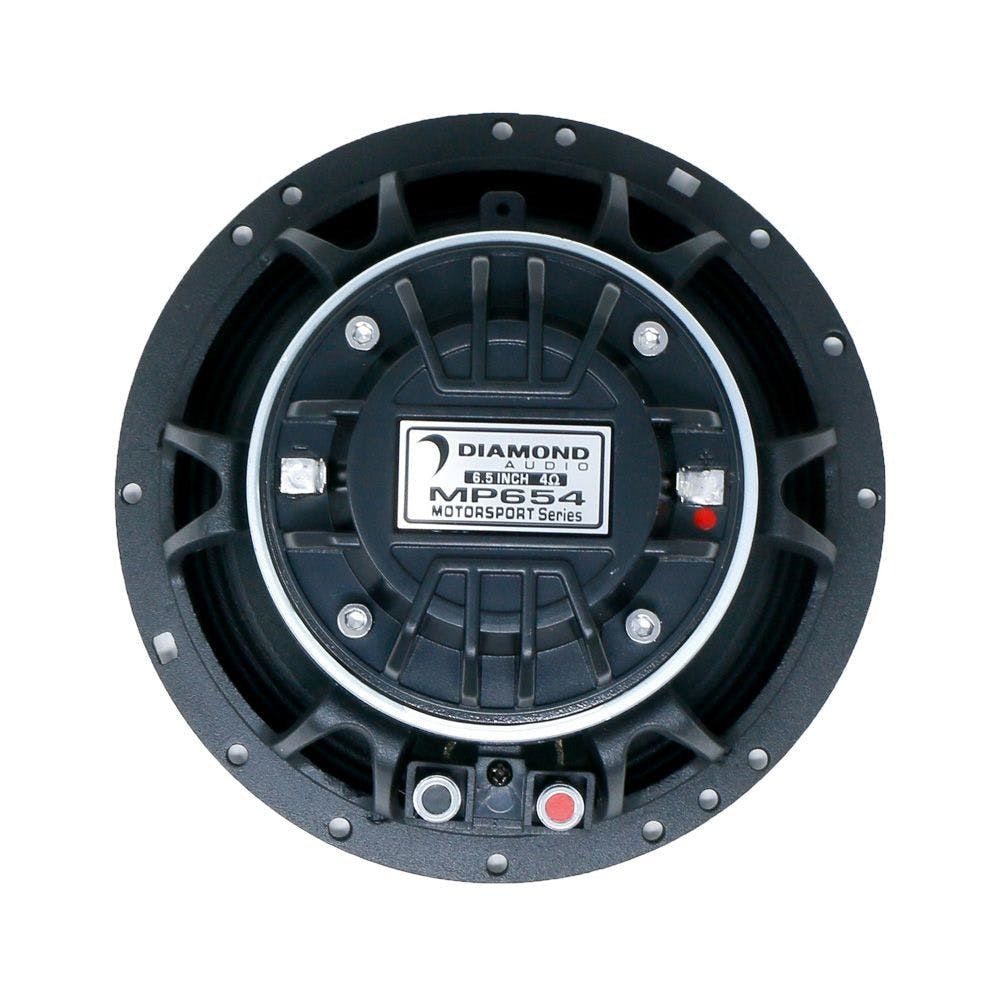

6.5" PRO Full-Range Co-Ax Horn Speaker

MP654

  • 150W RMS/300 MAX Power Handling
  • Ferrite Strontium High Temp Magnet structure
  • Heavy Duty Die-cast Aluminum Basket
  • 1.5" 4 Ohm - Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
  • 1.0" 8 Ohm - Single Layer High Temp Voice Coil for Tweeter
  • Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
  • Frequency Response: 110Hz -18Khz
  • High Sensitivity 101dB 1W/1M
  • 12dB Crossover
  • Mounting Depth: 3.33" / 84.6mm
  • Mounting Diameter: 5.73" / 145.5mm

Specifications

SPL (dB-MidBass) 92.7
SPL (dB-Tweeter) 107
Re(ohm)[series] 3.2
Qms 10.73
Qes 0.47
Qts 0.45
Fs(Hz) 103.3
Vas(L) 6.6
Cms(mm/N) 0.24
Mms(g) 9.7
Sd(m2) 138.9
BL(T*M) 6.5
Xmax(mm) 1.0
Pwr(W) NOM/MAX 150/**300
Total Diameter 6.52 (165.5) in. (mm)
Mounting Diameter 5.73 (145.5) in. (mm)
Mounting Depth 3.33 (91.6) in. (mm)
Total Depth 3.88 (98.6)in. (mm)
Magnet Diameter 3.94 (100) in. (mm)
