Description

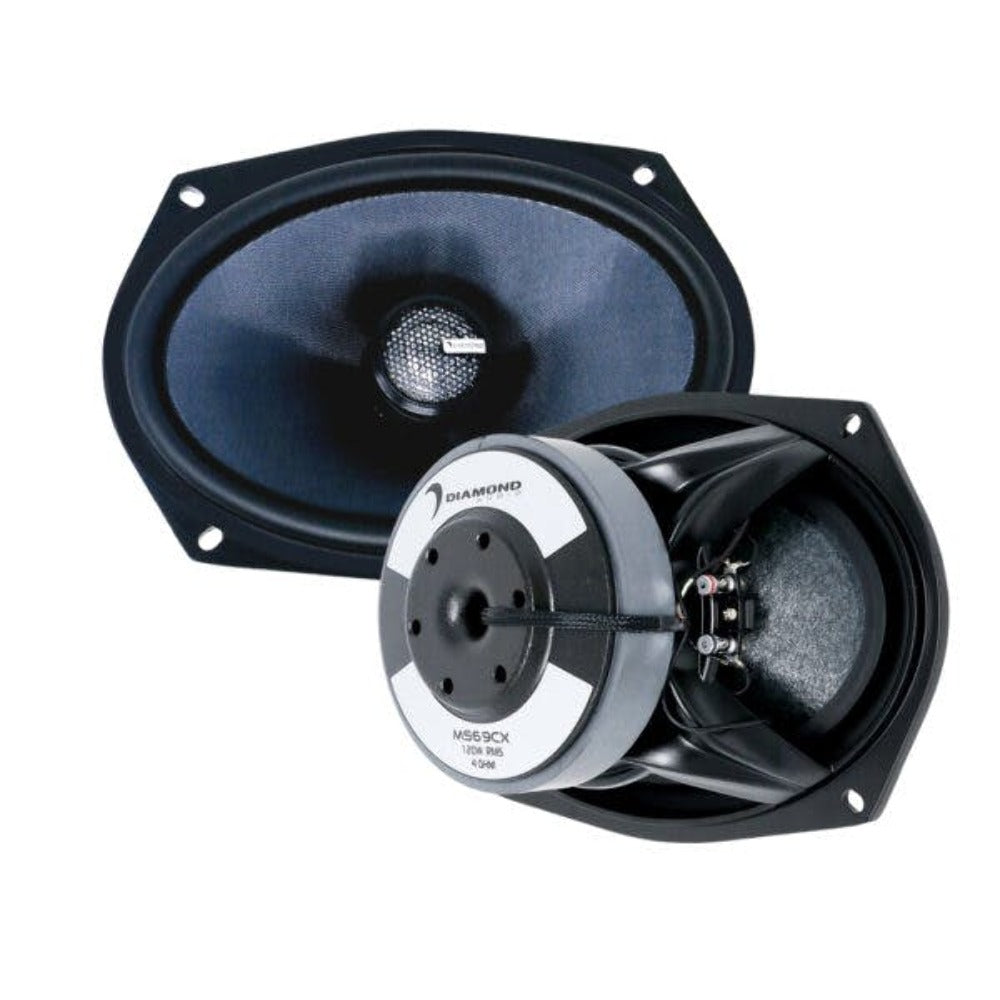

6"X 9" 2-WAY High Output Coaxsub Speaker System, Pair

MS69CX

  • 6 X 9 2-Way High Power MotorSport CoaXSub
  • Manufactured to IPx65 Marine Grade Compliant Specifications
  • 1″ High Output Titanium Dome Tweeter
  • UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
  • 12dB Bessel Crossover Network
  • Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
  • T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling
  • High-Temperature Cast Aluminum Basket

Specifications

Nominal Diameter - inch (mm) 6×9 (152.4×228.6mm)
Description 2-Way Concentric
Nominal Impedance (Ohms) 4ohm
Frequency Response (Hz) 45-23kHz
Kapton Voice Coil Diameter - inch (mm) 1.4 (35.5)
Power Handling - Watts (RMS/Peak) 125/500
Fs - Free Air Resonance (Hz) 46Hz
Qts 0.783
Vas - cu. ft. (Liter) 0.159 (4.5)
Sensitivity (1W/1M) 90.5dB
Sensitivity (2.83V/1M) 93.5dB
Xmax - Inch (mm) 0.16 (4)
Mounting Diameter 8.875″ (225.5mm) x 6.125″ (155.6mm)
Mounting Depth 3.875″ (98.425mm)
Grille YES
