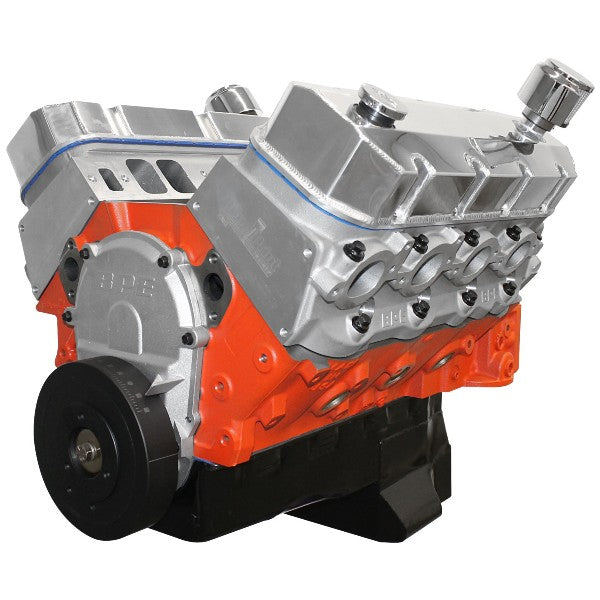

BluePrint Engines 632 ci Big Block Chevy - 775 HORSEPOWER - Long Block - Built and designed to be Power Adder Ready

E632

HP & Torque: 775 HP / 750 FT. LBS

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 9.6:1

Camshaft: Hydraulic Roller Cam - .698 Intake / .698 Exhaust Lift and 272 Intake 282 Exhaust Duration @ .050 - 110° LSA

Pistons: Forged

Crankshaft: Steel Crank - 4.750" Stroke and Forged 6.635" Rods

Description:

The old adage of “there’s no replacement for displacement” is becoming … dare we say old? These days naturally aspirated engines just aren’t enough for some – and we are here for it!

• Horsepower & Torque: 775 Horsepower / 750 FT LBS Naturally Aspirated
• Compression Ratio: 9.6:1
• Aluminum Heads
• Hydraulic Roller Cam
• Forged Crank
• Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.600" Bore
• 1-Piece Rear Main Seal
• Tall Deck (Cylinder Deck is Approx .400 Taller / Wider than OEM Block)

Rotating Assembly:

• New BluePrint Forged Crankshaft
• 4.750" Stroke
• Forged H-beam 6.635" Connecting Rods
• ARP 2000 Series Bolts
• Mahle Motorsports Forged Pistons
• Precision Gap, Power Adder Piston Rings
• Internally Balanced

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8012
• 119cc Chamber
• 2.30" Intake / 1.88" Exhaust Valves
• 358cc Intake / 125cc Exhaust Runners
• Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting.
• MLS Head Gaskets

Cam Specs:

• Cam Type: Roller
• .698 Intake / .698 Exhaust Lift
• 272 Intake / 282 Exhaust Duration
• @.050-110 Degree Lobe Separation

Also Includes:

• Valve Covers
• Oil Pan
• Timing Cover
• SFI Rated Dual Keyway 8 in. Balancer

Notes:

• Built and designed for Power Adder applications. Dual keyway crankshaft included.
• Not for use in pollution-controlled vehicles.
• This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
• Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.
• Harmonic balancer is NOT included on this engine

Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: E632

Fuel Delivery Type: Carbureted, 1050cfm recommended (to achieve similar dyno numbers)

Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)

Spark Plug Gap: .035"

Harmonic Balancer: Non-Weighted

Flexplate/Flywheel: Non-Weighted

Stall Converter: 3,800-4,200

Intake Manifold: Single plane, satin aluminum

Fuel Recommendation: 91 Octane

Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°. If using a dominator style carb, initial timing 16-20 and total timing of 32-34 by 2500 RPM.

Firing Order: 1,8,4,3,6,5,7,2

Notes: New BluePrint block manufactured and machined in the USA. Recommended break in oil for your BluePrint Crate Engine: BPP710, Not for EGR
