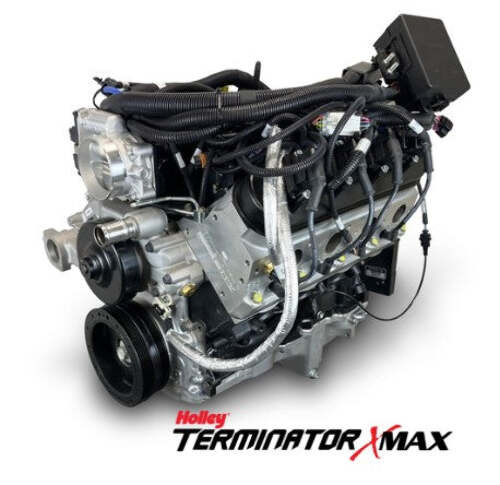

BluePrint Engines 376 ci GM LS Compatible Pro Series Base Dressed Engine with Holley Terminator X EFI System
PN. PSLS37681CTF
Horsepower & Torque: 510 Horsepower / 440 ft. lbs. Torque
Cylinder Heads: BluePrint Engines LS3 Aluminum Cylinder Heads
Compression Ratio: 10.7:1
Camshaft: Hydraulic Roller Cam - .612 Intake / .585 Exhaust Lift and 225 Intake / 238 Exhaust Duration @ .050 - 113° LSA - Three Bolt Cam
Pistons: Hypereutectic
Crankshaft: Nodular Iron Crank - 3.622" Stroke and 6.125" Rods
Multi-Port Fuel Injection: Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System
Fuel Recommendation: 91+ Octane
Overview:
The BluePrint ever popular GM LS-Compatible 376 c.i. performance crate engine is packing a punch with 510 horsepower and 440 ft-lbs of torque, this powerplant is built to dominate. At its core lies a BluePrint Engines high-strength cast iron LSX-style block, paired with LS3 aluminum heads and a 10.7:1 compression ratio for optimal combustion efficiency. The hydraulic roller cam and hypereutectic pistons ensure smooth, reliable performance, while the nodular iron crankshaft adds durability under high stress. Fuel delivery is seamless thanks to the injectors and fuel rail kit, feeding into the LS3 cast aluminum intake manifold. A drive-by-wire throttle body and Holley Terminator X Max system provide precise control and modern tuning capabilities. Completing the setup are essentials like the LS swap oil pan, water pump, and gas pedal—making this engine not just powerful, but fully prepped for a clean, efficient swap into your next build.
Description:
- Horsepower & Torque: 510 Horsepower / 440 ft. lbs. Torque
- Compression Ratio: 10.7:1
- BluePrint Engines LS3 Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Hypereutectic Pistons
- Nodular Iron Crankshaft
Block:
- BluePrint Engines High Strength Cast Iron (LSX Style) Block
- Increased Deck Thickness and Strength Webbing
- Utilizes OEM LS3 Front and Rear Covers
- Improved Water Jacket Design
- Extended Cylinder Skirt
- 1-Piece Rear Main Seal
- Priority Main Oiling
- 4.0662" Bore
- 6-Bolt Main
Rotating Assembly:
- Nodular Iron Crankshaft
- 3.622" Stroke
- 6.098" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint LS3 Aluminum Cylinder Heads
- 69cc Chamber
- 2.165" Intake / 1.590" Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .612 Intake / .585 Exhaust Lift
- 225 Intake / 238 Exhaust duration
- @.050-113 Degree Lobe Separation

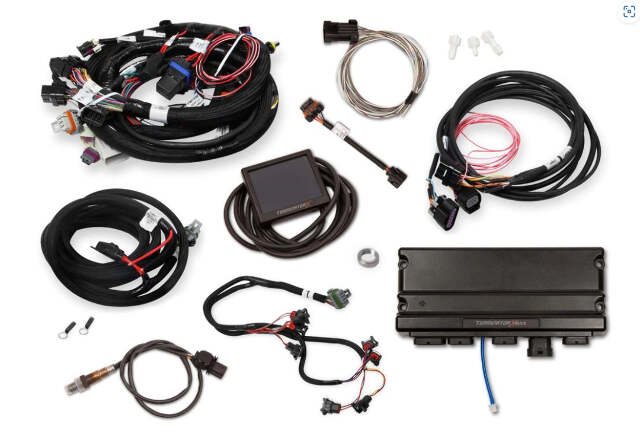

Holley Terminator X Max Specific Features and Benefits:
- Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
- On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
- Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
- Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
- 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
- Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
- Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
- Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine
Also Includes:
- Drive by Wire Throttle Body
- LS3 Cast Aluminum Intake Manifold
- LS Swap Oil Pan
- Water Pump
- Injectors and Fuel Rail Kit
- Spark Plugs & Wiring
- Harmonic Balancer
- Timing Cover
- Valve Covers
- Coil Packs
- Gas Pedal
Notes:
- This engine requires a non-weighted flex plate
- Recommended fuel: 91 Octane.
- BluePrint Engines recommends a 2200+ RPM stall converter.
- Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars.
- Not for use in pollution-controlled vehicles or in dry sump applications.
- This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
