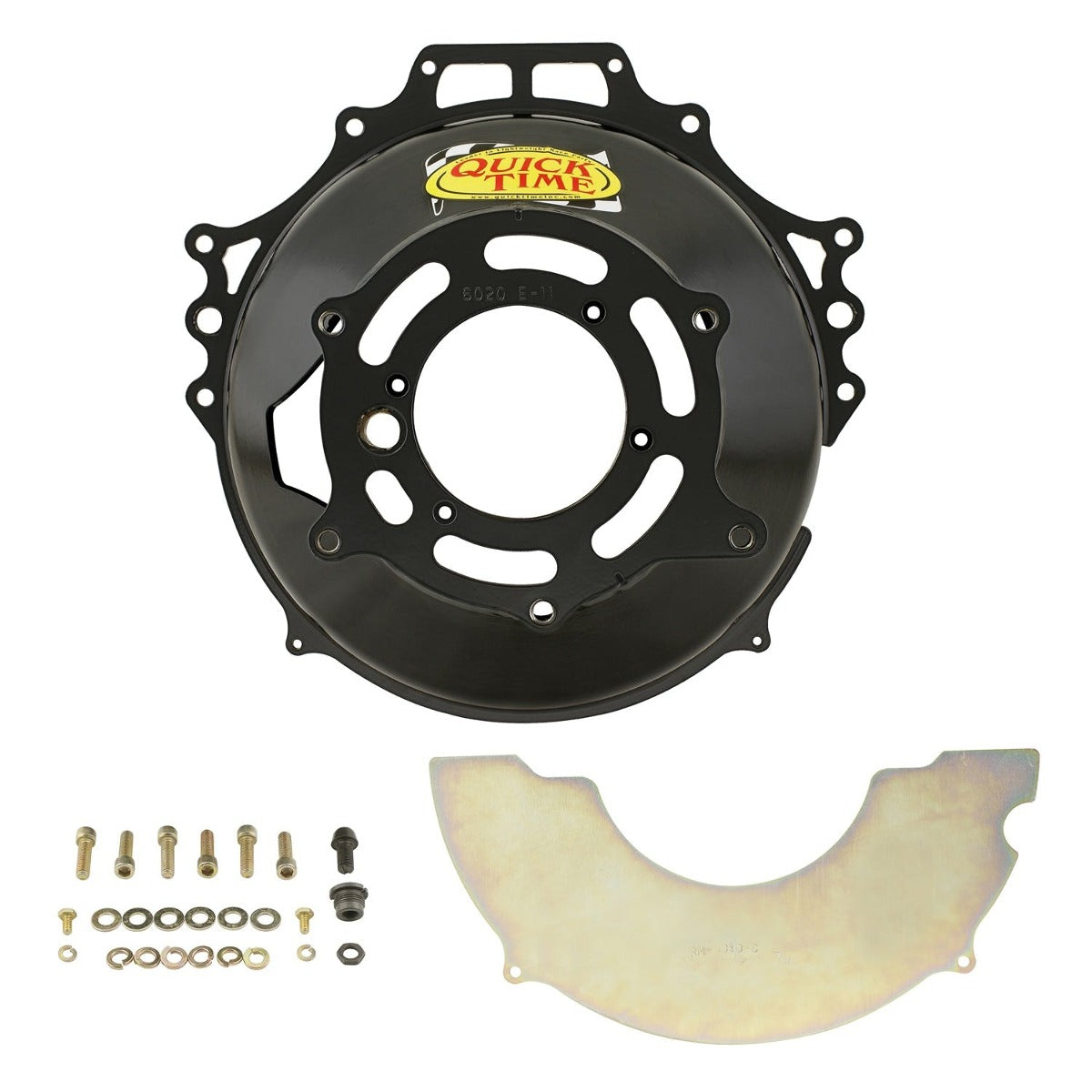

QuickTime Bellhousing; BBC/SBC Engines w/Muncie/Jerico/Richmond/Saginaw Style Trans.; 10.5 Clutch Disc; Hydraulic; 153 Tooth; 6.290 in. Height; 4.687 in. Trans. Bore;
This bellhousing is designed for circle track, strip or street application. This bellhousing fits Small Block Chevy 265-400 CID & Big Block Chevy 396-454 CID engines to Muncie, Richmond, Chevy TKO, BW-T10. Fits 153 tooth flywheel and 10.5 in clutch. Is 6.29 in deep. Built from high grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. Transmission bore is 4.685 in. This bellhousing weighs 18 pounds. Pivot ball, block plate and Grade 8 hardware included. Note: Must use mini starter. Non S.F.I. approved.
- Patent On 16 Points Of Bellhousing Design And Process
- For Appls. w/Stock Shifter Fork And Throwout Bearings
- Muncie Richmond Chevy TKO BW-T10 Transmissions
- Full Engine Plate/Grade 8 Bolts/Pivot Ball Included
- Shifter Fork Not Included
- Cone Spun Not Stamped Or Rolled
- Must Use Mini Starter
