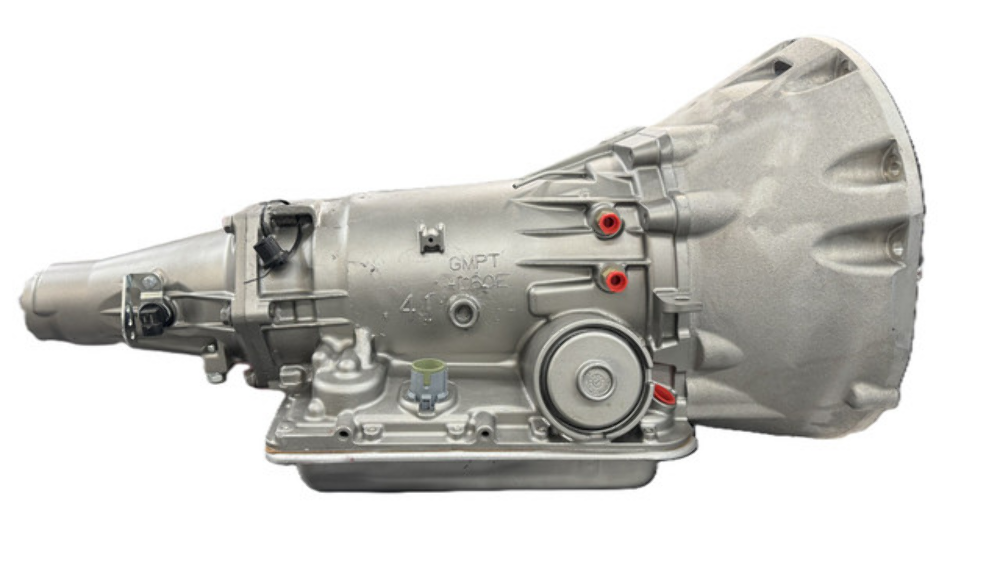

4L65E- designed to attach to a Mopar Big Block engine. The 4L60E features a 13-pin main harness connector. This is not designed for a factory application; a standalone transmission controller will need to be used.
4L65 – 2WD Level 4
Rated up to: 650 HP at the crankshaft
Rated up to: 600 ft-lbs. of torque at the crankshaft

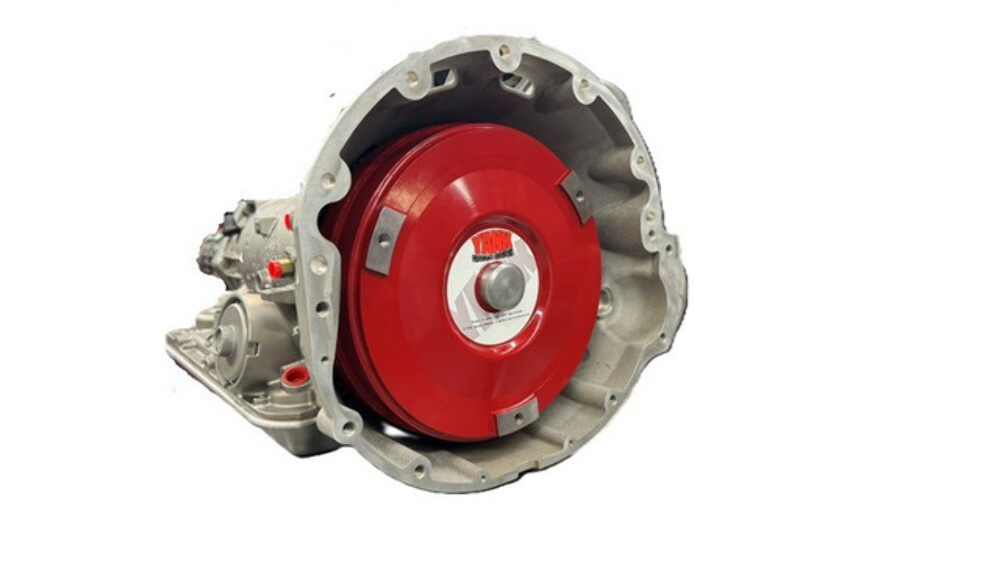

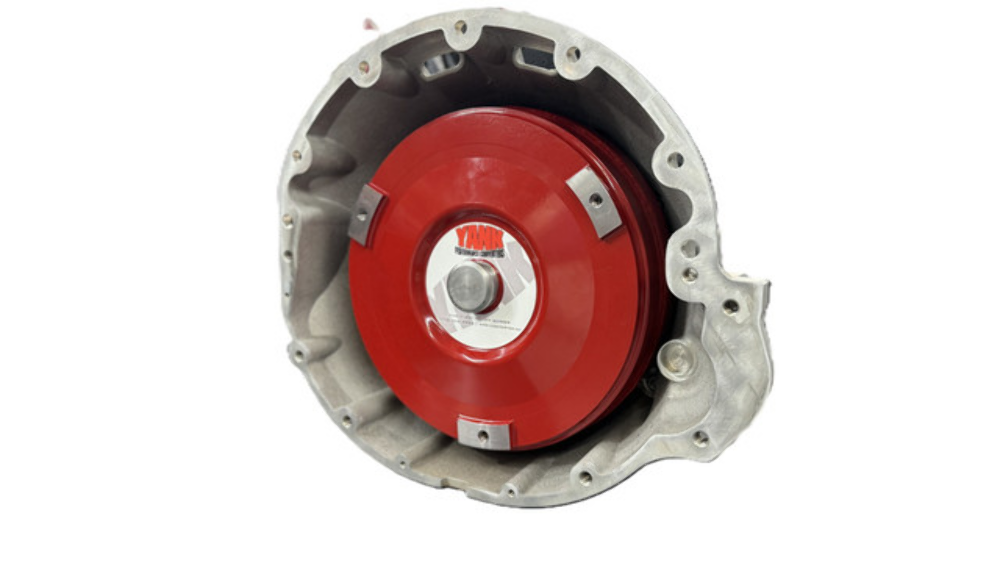

Converter: Custom Built & Custom Stalled 9.5", 10”, or 11” Lock-Up Billet Racing
Stall: 2600–4000
Master Overhaul Kit with new Steels
Raybestos Stage 1 Racing Frictions
Filter
Wide Carbon-Fiber 2-4 Band
High Capacity Upgraded Pump Assembly
New Hardened Pump Rings
New 13 Vane Pump Rotor
New Vanes
New Stator
Pressure Regulator Valve
Updated Boost Valve
Performance Sonnax valve body updates
New Valve Body Spacer Plate
Corvette Servo
Super Hold 4th Servo
New 29 Element Dual Cage Sprag
Heavy Duty Hardened Sun Shell
Heavy Duty Expanded Capacity Input Drum with Reinforcing Sleeve
Heavy Duty 5 Pinion Front and Rear Planetary Gear Set with Sun Gear
Hardened Output Shaft
Hardened Reaction Shaft and Hub
Bushing Kit
New Thrust Washers
Complete Torrington Bearing Kit
High Rev Spring Kit
New Low/Rev Heavy Duty Spring and Roller
New Shift Solenoids
New EPC Solenoid
New PWM Solenoid
New 3/2 Solenoid
New Manifold Pressure Switch
New Internal Wiring Harness w/ New TCC Solenoid
New Electronic Speed Sensor
New Original Equipment Steel Transmission Pan
Universal Transmission Mount
(2WD) 3 Year / 50,000 miles
| Gear Ratios | 1st | 2nd | 3rd | 4th |
| GM 4L65E | 3.060 | 1.620 | 1.000 |
0.700 |
| Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft |
| Total Length: 32″ |
| Distance to trans mount center: 24 1/4″ |
