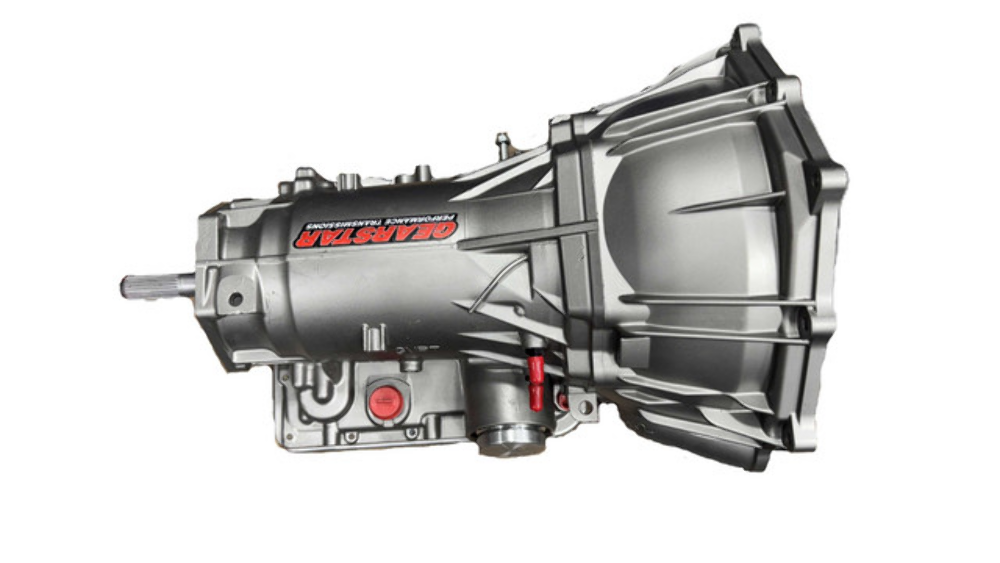

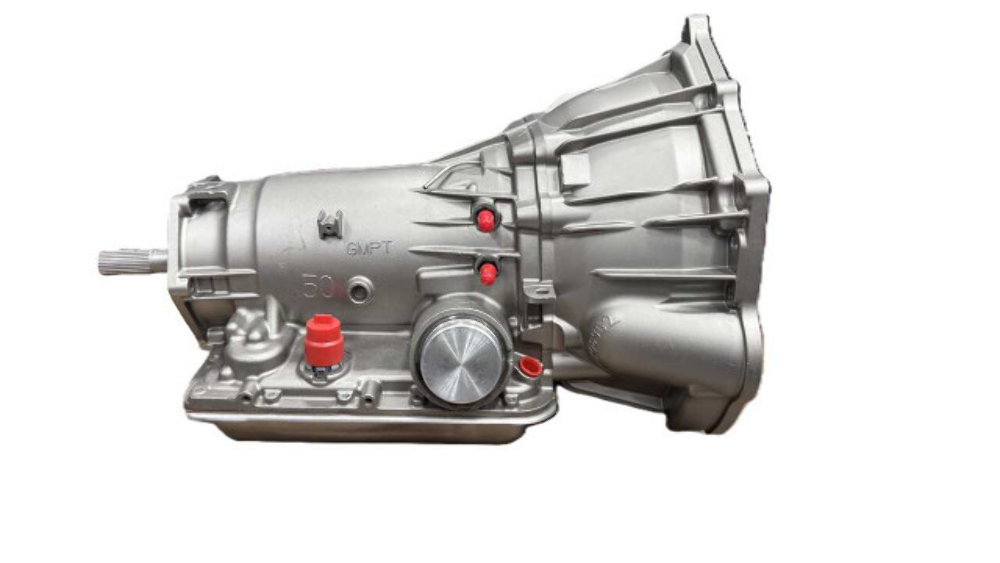

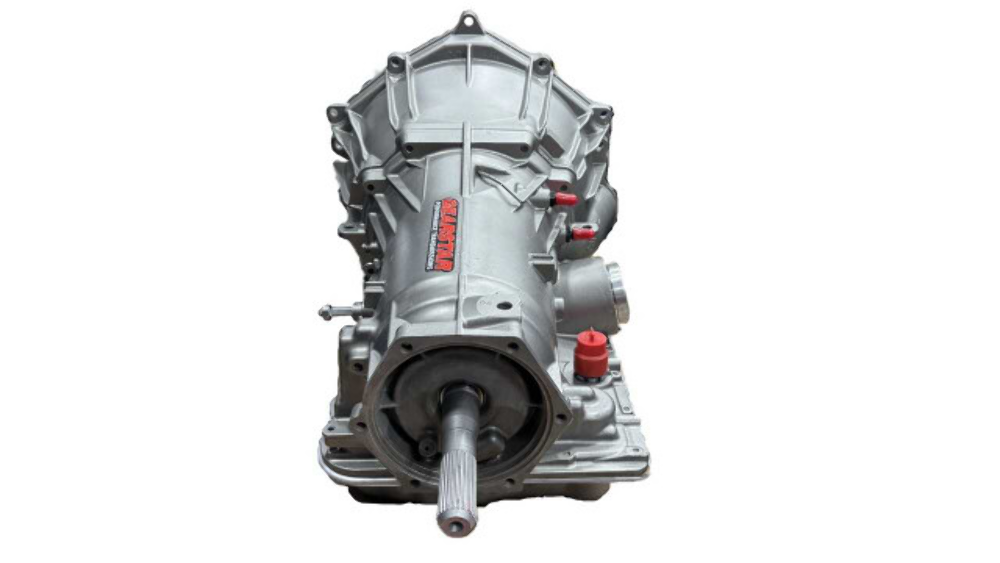

4L70E- designed to attach to an LS engine. The 4L70E features either a 15 or 17-pin main harness connector. You will need to verify the pin count if this is going into a factory application, and plan to use the factory computer. If this is not going into a factory application, you will need to use a standalone transmission controller.
Uses OE style 2008+ 15-pin harness
4L70E Level 4 4x4
Rated up to 650 HP at the crankshaft
Rated up to 550 ft-lbs of torque at the crankshaft
Warranty: (4x4) 1 year / 12,000 miles

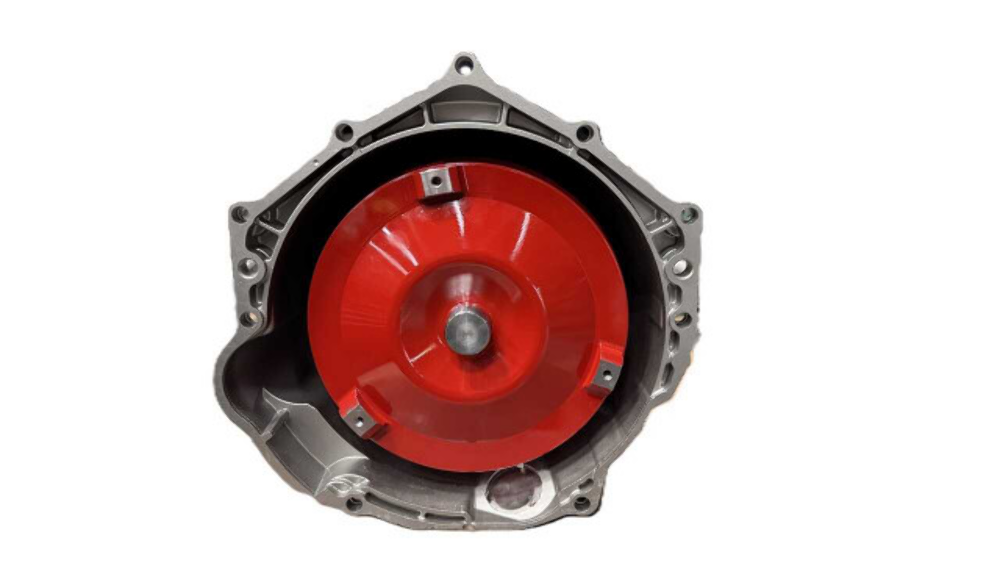

Converter: Custom-built & custom-stalled 9.5", 10”, or 11” lock-up billet racing
Stall: 2600–4000
Master overhaul kit with new steels
Raybestos Stage 1 racing frictions
Filter
New thrust washers
Complete Torrington bearing kit
Bushing kit
High-capacity upgraded pump assembly
New hardened pump rings
New 13-vane pump rotor
New vanes
New stator
Pressure regulator valve
Updated boost valve
Performance Sonnax valve body updates
New valve body spacer plate
New 29-element dual cage sprag
Heavy-duty hardened sun shell
Heavy-duty expanded capacity input drum with reinforcing sleeve
Heavy-duty 5-pinion front and rear planetary gear set with sun gear
Hardened output shaft
Hardened reaction shaft and hub
Wide carbon-fiber 2–4 band
Corvette servo
Super Hold 4th servo
High rev spring kit
New low/rev heavy-duty spring and roller
New shift solenoids
New EPC solenoid
New PWM solenoid
New 3/2 solenoid
New manifold pressure switch
New internal wiring harness with new TCC solenoid
New electronic speed sensor
New original equipment steel transmission pan
| Gear Ratios | 1st | 2nd | 3rd | 4th |
| GM 4L70E | 3.060 | 1.620 | 1.000 |
0.700 |
| 4WD Dimensions |
| Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft |
| Total Length: 27 1/2″ (Including OE T-Case Adapter Housing) |
| Distance to trans mount center: 24 1/2″ |
