Description

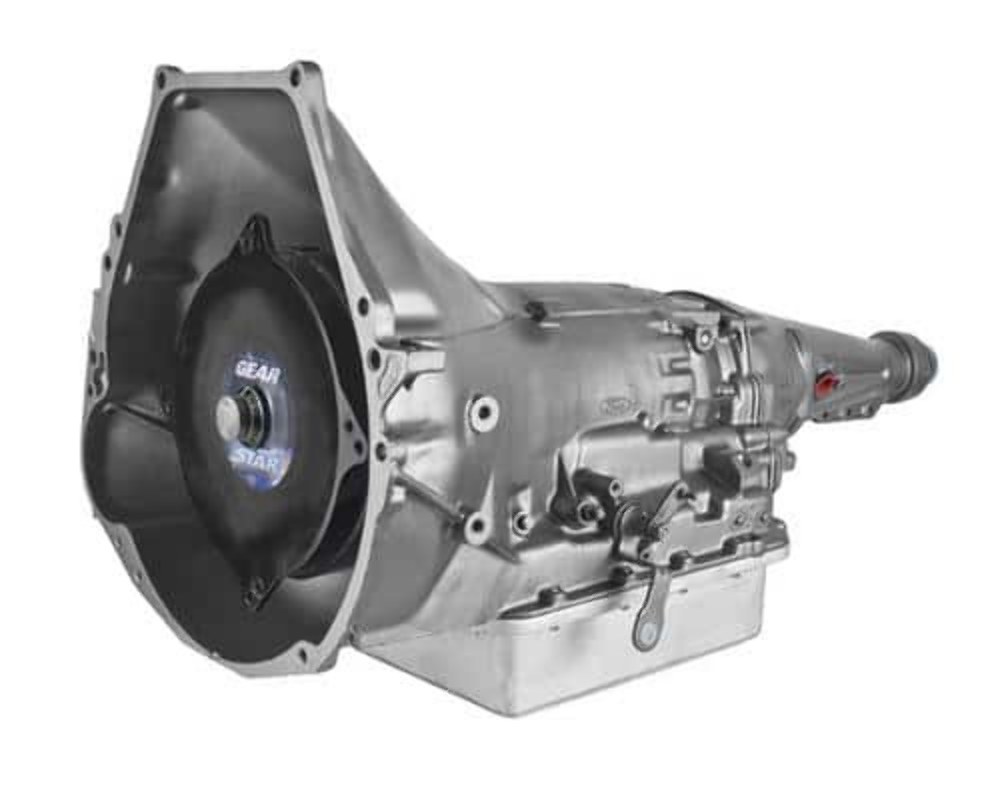

Gearstar C6 Level 3 Transmission 600HP/600 lb-ft Stall 2600–3600

SKU: GSTGSC6L3

Ford C6 three-speed automatic transmission.

Transmission Overview

Model: C6 Level 3
Power Rating: Up to 600 HP (crankshaft)
Torque Rating: Up to 600 ft-lbs (crankshaft)

Torque Converter

Custom-built 10" billet Yank Performance Converter
Stall Range: 2600–3600 RPM

Core Rebuild Components

Master overhaul kit with new steels
New thrust washers
New bushings
Filter

Friction & Band Upgrades

Raybestos Stage 1 Racing frictions
Heavy-duty carbon fiber band

Valve Body & Control Components

TransGo reprogramming shift kit with shift command
Modulator
High-rev governor assembly

Internal Performance Upgrades

High-capacity pump assembly
High-capacity 3rd gear drum
300M hardened input shaft
Heavy-duty forward drum
Hardened drive shell
Billet intermediate servo

Geartrain & Rotating Assembly

Heavy-duty planetary gear set
Borg Warner low one-way roller clutch assembly

External Components & Hardware

Deep aluminum pan
Transmission mount

Gear Ratios 1st 2nd 3rd
Ford C4/C6 2.460 1.460 1.100



Dimensions
Measurements are taken from the mounting surface where the trans meets the engine block to the tip of the tailshaft
Total Length: 32 1/2″ ~ Short Tail
Total Length: 33 1/2″ ~ Long Tail
Distance to trans mount center: 23″
