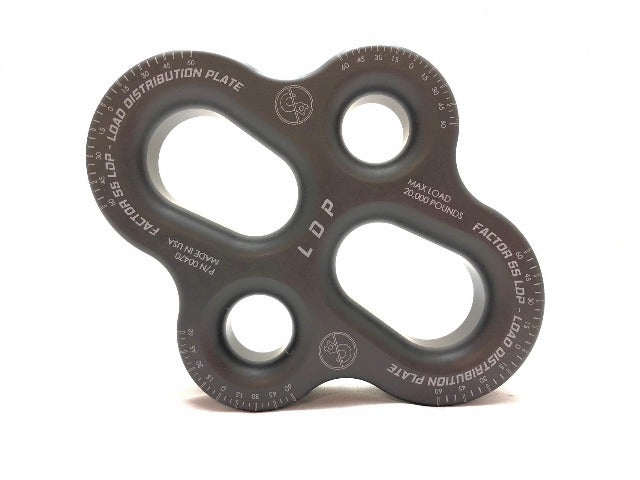

Factor 55 00470-06 Load Distribution Plate (LDP) -- Gray

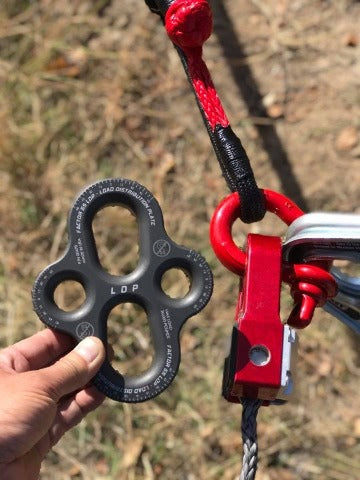

The Load Distribution Plate is a rigging plate designed for distribution of multiple loads and directions. Self-aligning shackle pin holes fit common ? shackles. Pear shaped holes permit ? and 7/8 shackle bodies to pass through

---

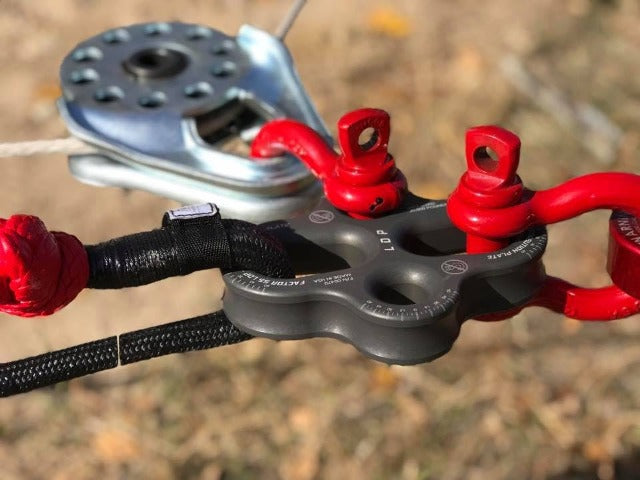

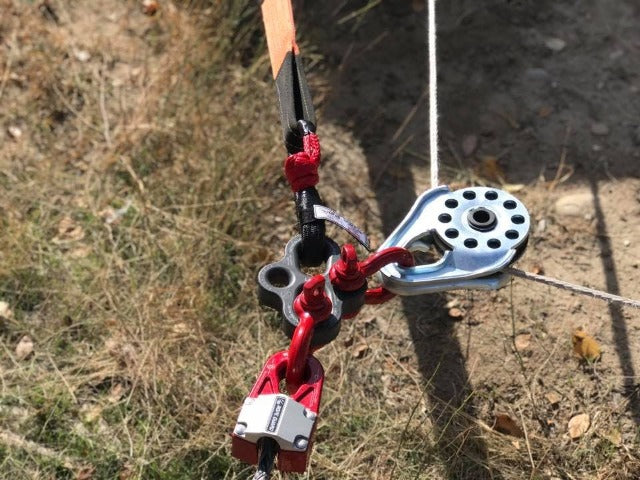

Rigging plate designed for distribution of multiple loads and directions. Safe collection point for multiple winching applications. Prevents collecting multiple loads on a single shackle. Self-aligning shackle pin holes fit common 3/4 inch shackles. Pear shaped holes permit 3/4 inch and 7/8 inch shackle bodies to pass through. Laser engraved angle scale for sling multiplier estimates. Symmetric shape allows for common bridle tow configurations. Large smooth corner radii for soft shackle applications. Precision machined from 6000 series Military Grade Aluminum. Engineered, Tested, and Made In The USA. Military Specification Hard Anodized finish (Mil-A-8625 F Type III Gray). Working Load Limit 20,000 pounds. Minimum Breaking Strength 42,000 pounds.

• Weight 1.8 lbs
• Made in the USA
• Limited 1 Year Warranty

---
