Description

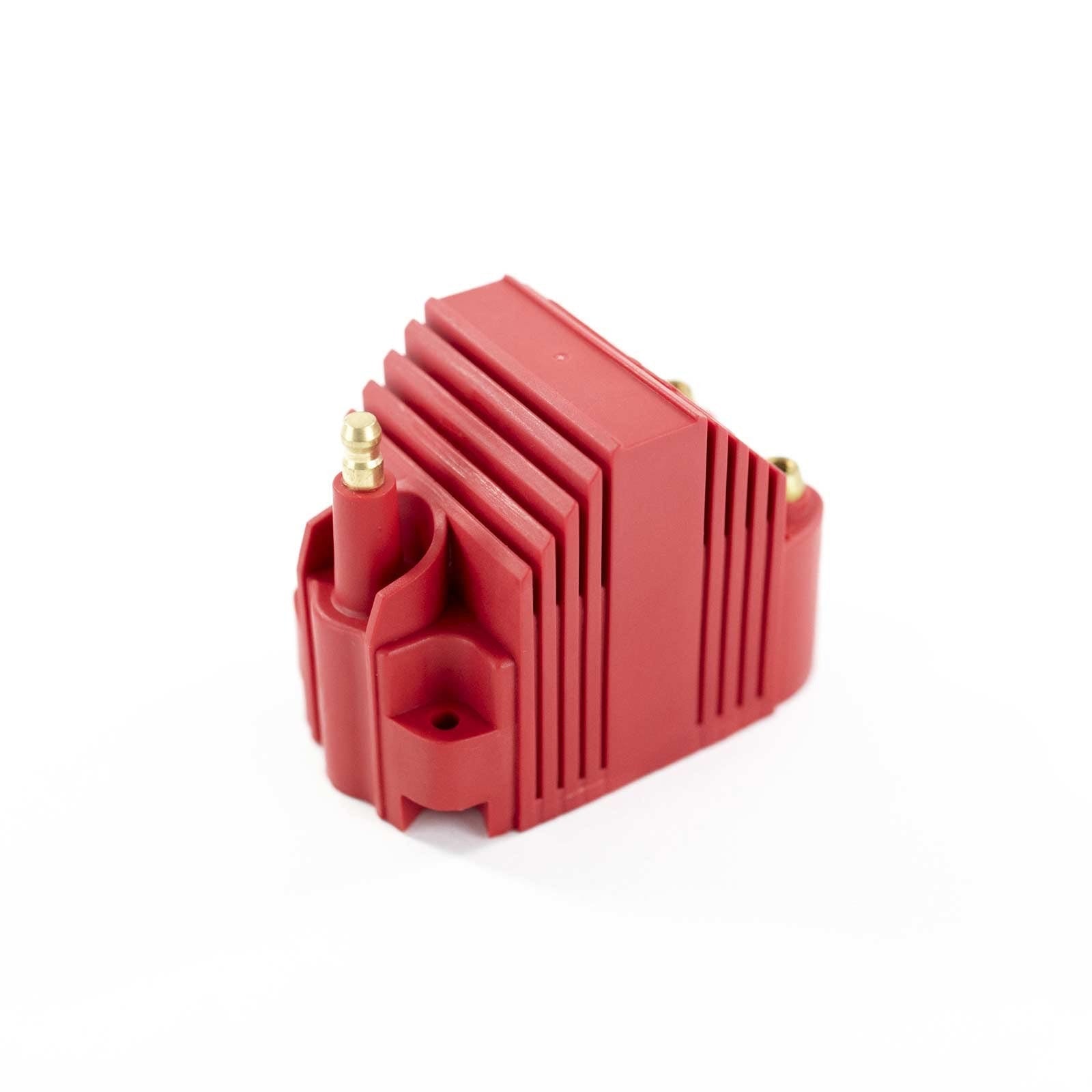

Compact Red Square E-Core 40,000 Volt Ignition Coil.
TSP's new compact e-core ignition coil puts out 40,000 volts, giving you a much hotter and larger spark to burn fuel more efficiently and provide smooth acceleration thoroughout the entire RPM band. It's small design allows for easy mounting, and the brass terminal ensures maximum conductivity.
  • Coil Style: Compact E-core; Coil Color: Red; Primary Resistance: 0.355 ohms; Secondary Resistance: 4,400 ohms; Spark Duration: 200 uS; Max Voltage: 40,000 V; Peak Current: 300 mA; Turn Ratio: 70:1; Inductance: 6.9 mH; Coil Shape: Square
