FiTech Go EFI Classic System Kit Classic Carburetor Gold, 600 HP-External ECU

30020

Description

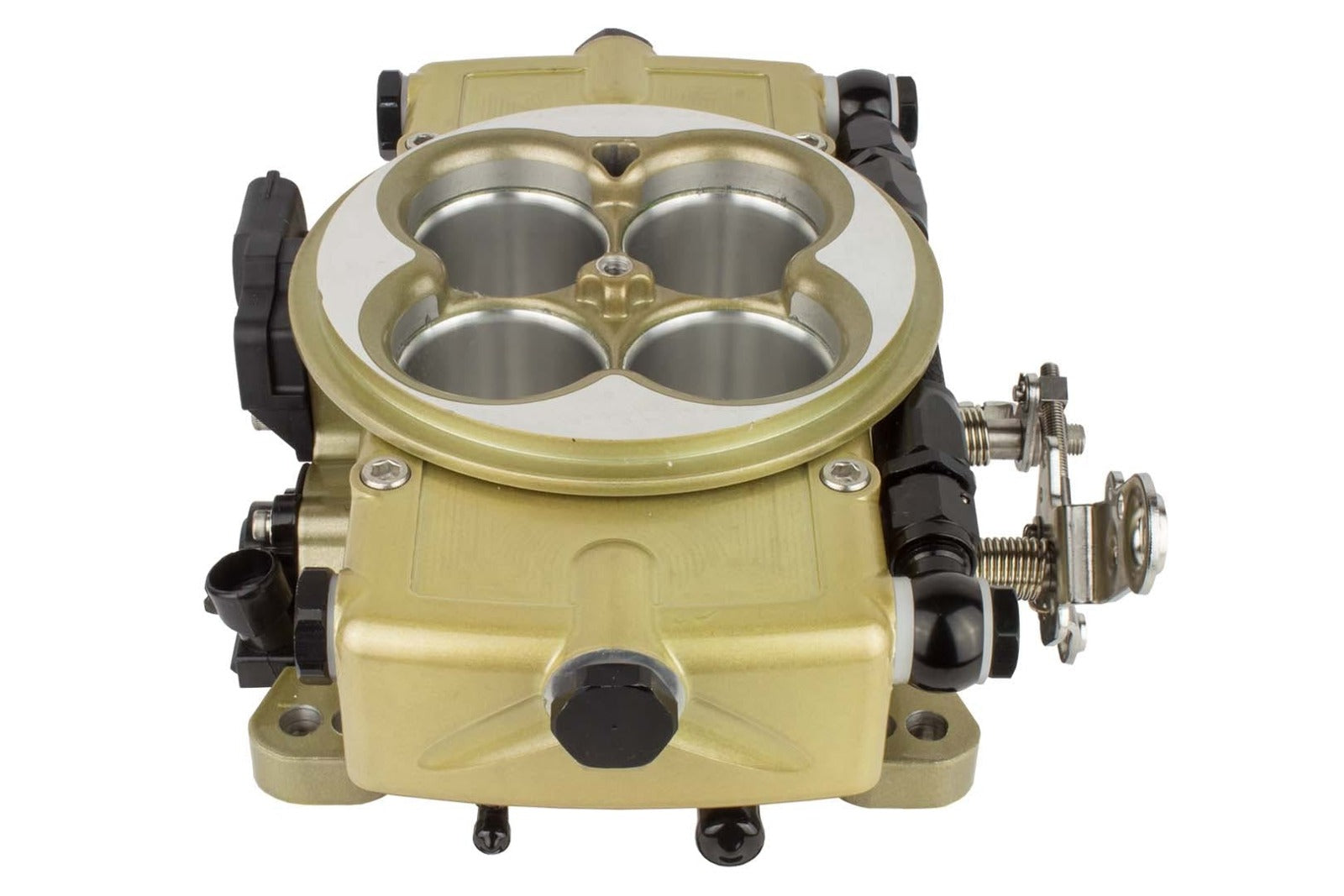

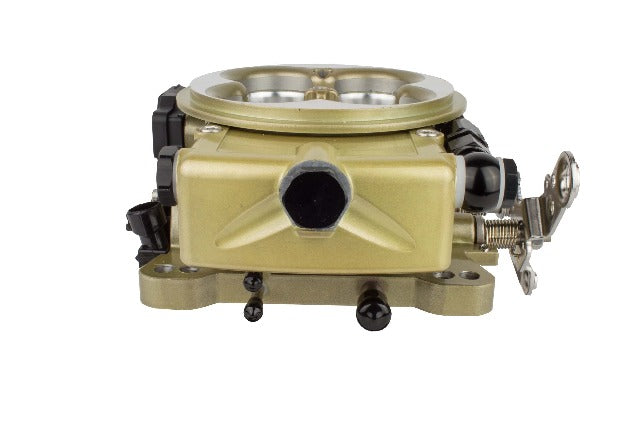

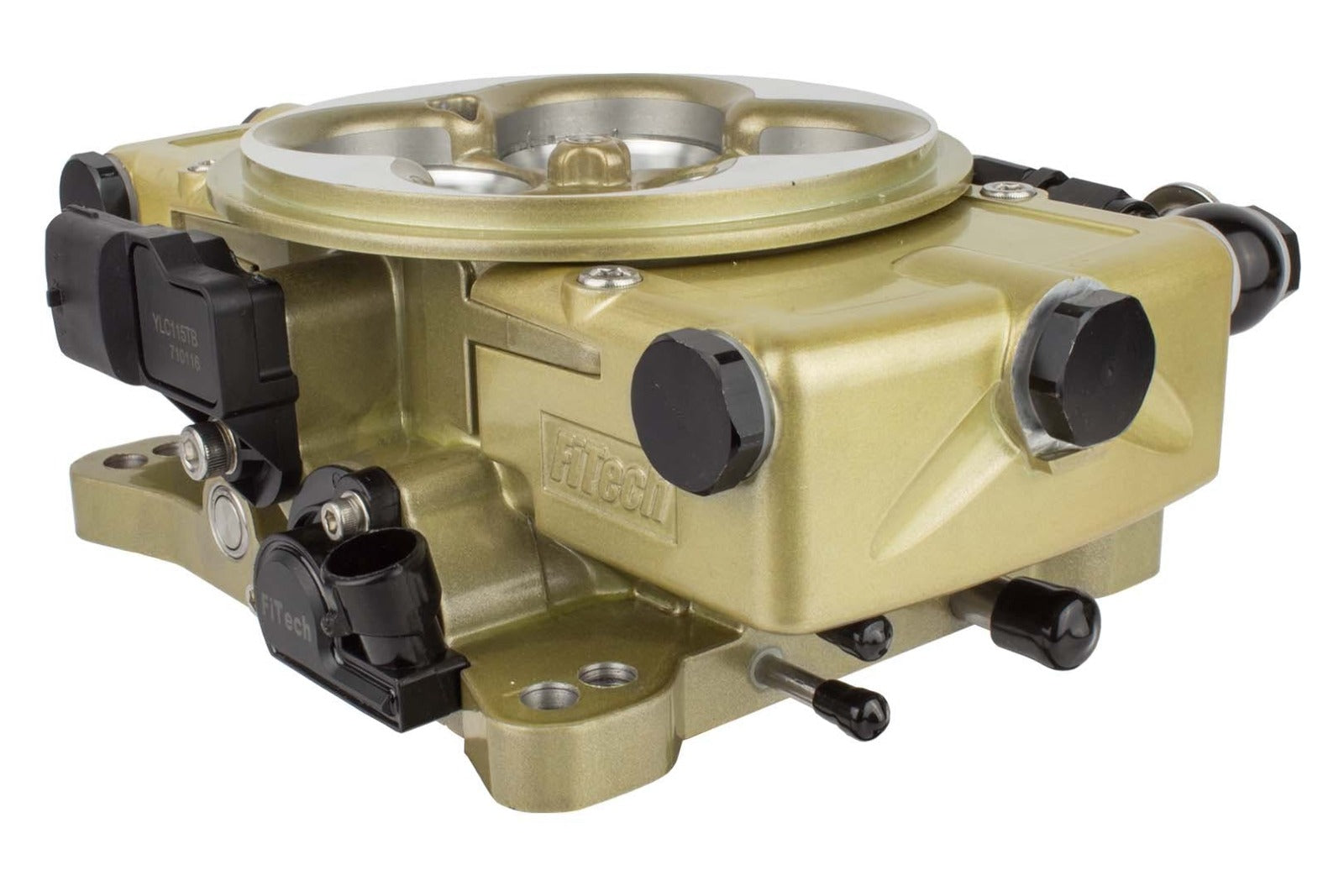

Fitech Fuel Injection introduces the all new Go EFI Classic 650HP System in the classic carburetor gold finish. Fitech EFI is now reverting back to the old school classic look while maintaining its innovative award winning patented design. This revolutionary fuel injection system allows you to maintain the classic carburetor look while eliminating cold start issues, hesitation, vapor lock and flooding. This innovative classic design hides the injectors and has an externally mounted ECU so it can be mounted wherever you want to ensure a true carburetor look is maintained. The Go EFI Classic is a self-tuning fuel injection system rated for up to 650hp. The more you drive the more it adapts to your personal style. So it is perfect for your everyday driver, your weekend Street Machine, or your Bracket Racer.

Features

• Carburetor gold finish.
• The included Genuine Bosch LSU 4.2 Wideband Oxygen Sensor provides real time Fuel Map Learning!
• Dual Pattern bolt on carburetor replacement, designed to fit 4150 Flange & Spread Bore manifolds.
• Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with stainless steel T-Bolt clamps and a stainless steel (Weldable) oxygen sensor flange.
• Externally mounted ECU to maintain that classic carburetor look.

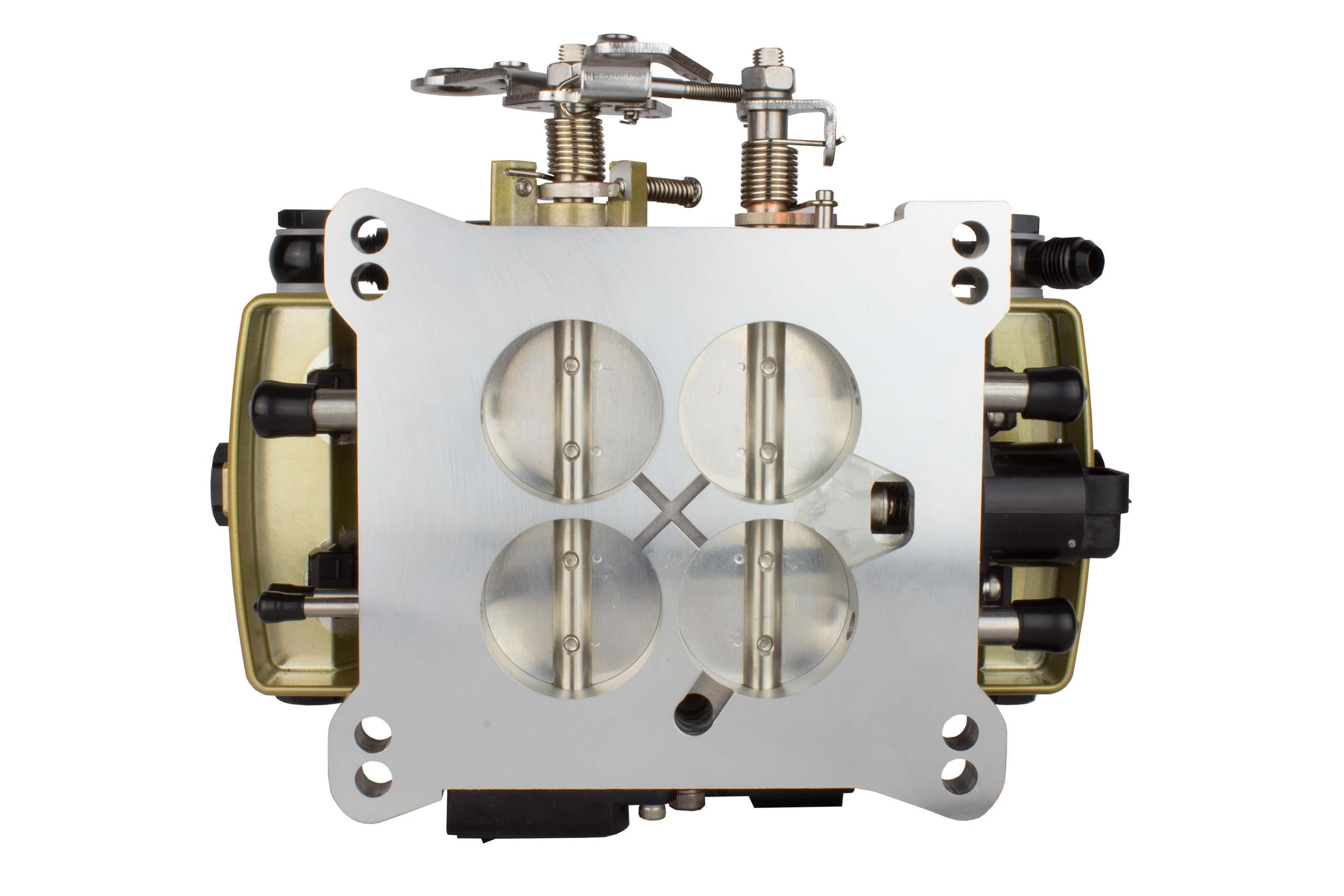

• High-flow aluminum throttle body with four 45mm diameter throttle bores to increase the air flow for additional horsepower gains and large CM engines.
• (4) Injectors support up to 650hp.
• All sensors excluding the O2 and coolant sensor are integrated directly into the throttle body.
• Works with original carb-type distributor, factory-style throttle linkage, and most four barrel intake manifolds.
• High resolution full color touchscreen for setup, tuning, and gauge displays.

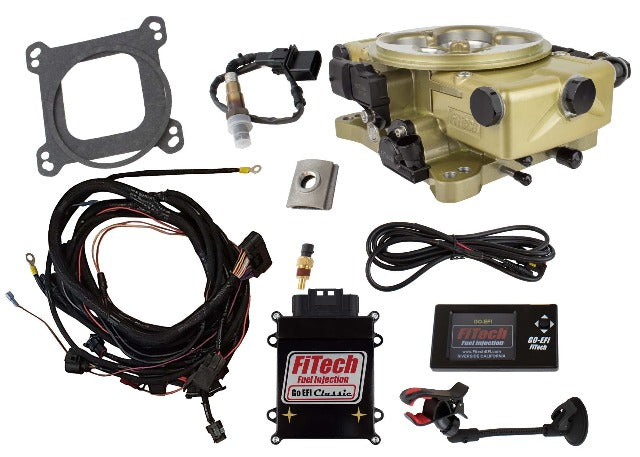

Kit Contents

• (1) Die-cast throttle body.
• (1) Remote ECU
• (1) O2 bung kit.
• (1) Hand-held controller.
• (1) CTS sensor.
• (1) Hand-held controller cable.
• (1) CTS adapter.
• (1) Windshield mount.
• (1) Mini USB cable.
• (1) O2 sensor.
• (1) Gasket kit.

Not Included:

This system needs a fuel delivery system to provide 58 PSI of fuel pressure. A Fuel pump, fuel lines, fuel filter, and fuel pressure regulator are needed for this kit. Below is a list of fuel system components that may be needed.
