Holley EFI Lo-Ram Intake Manifold; Upper; Fits GM Engines w/LS1/2/6 Cathedral Ports Cylinder Heads; Top-Feed Plenum w/105 mm.; Satin Finish;

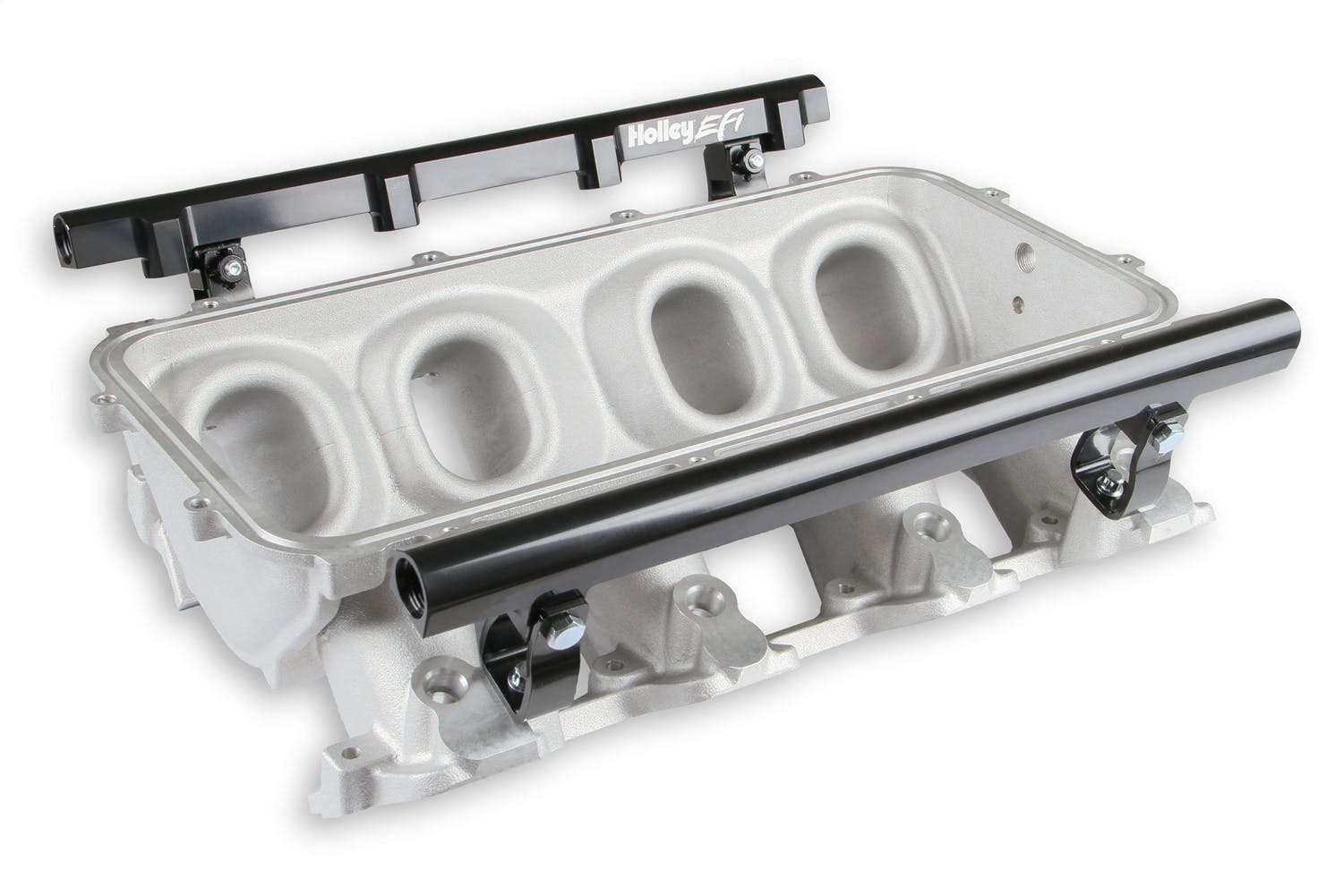

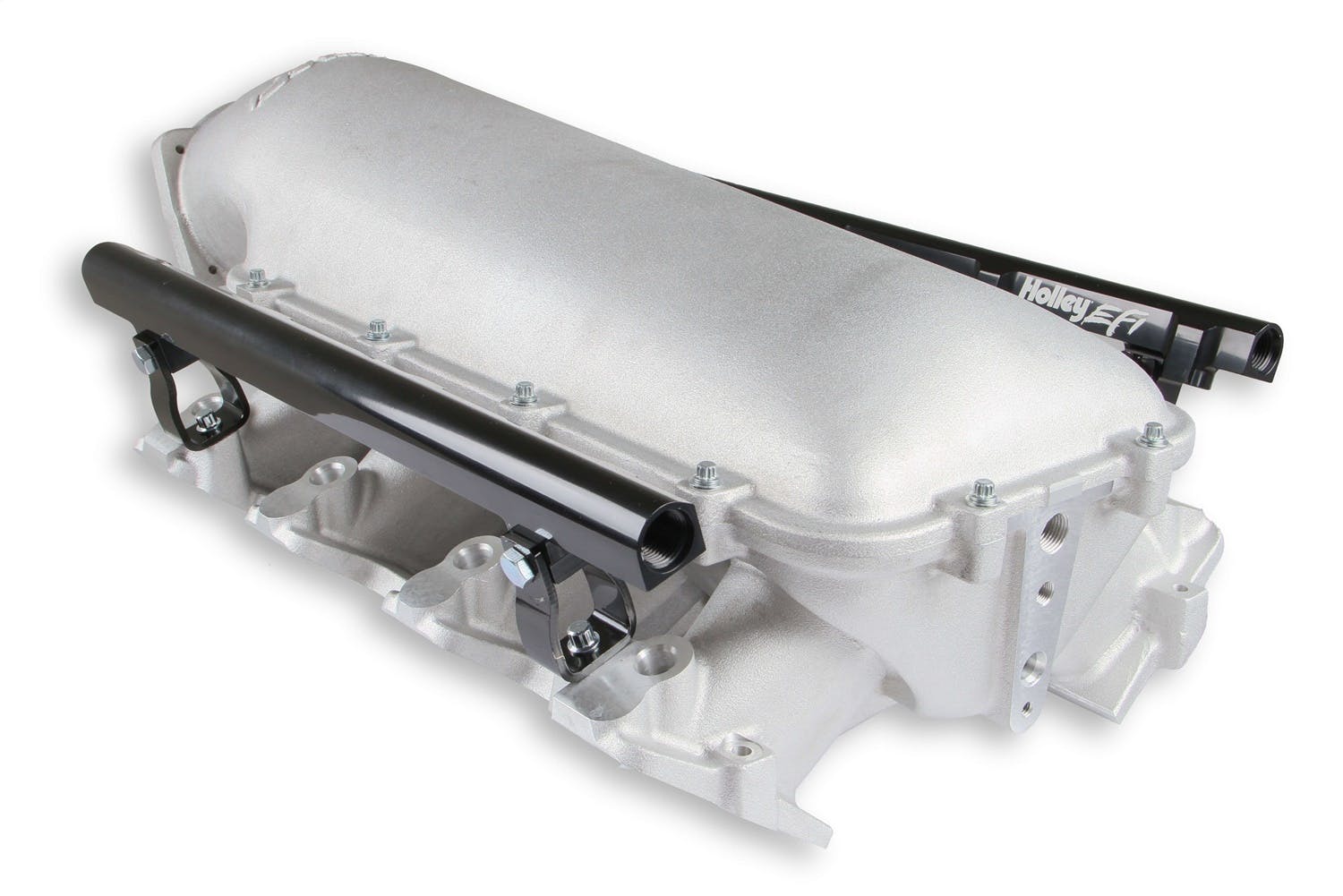

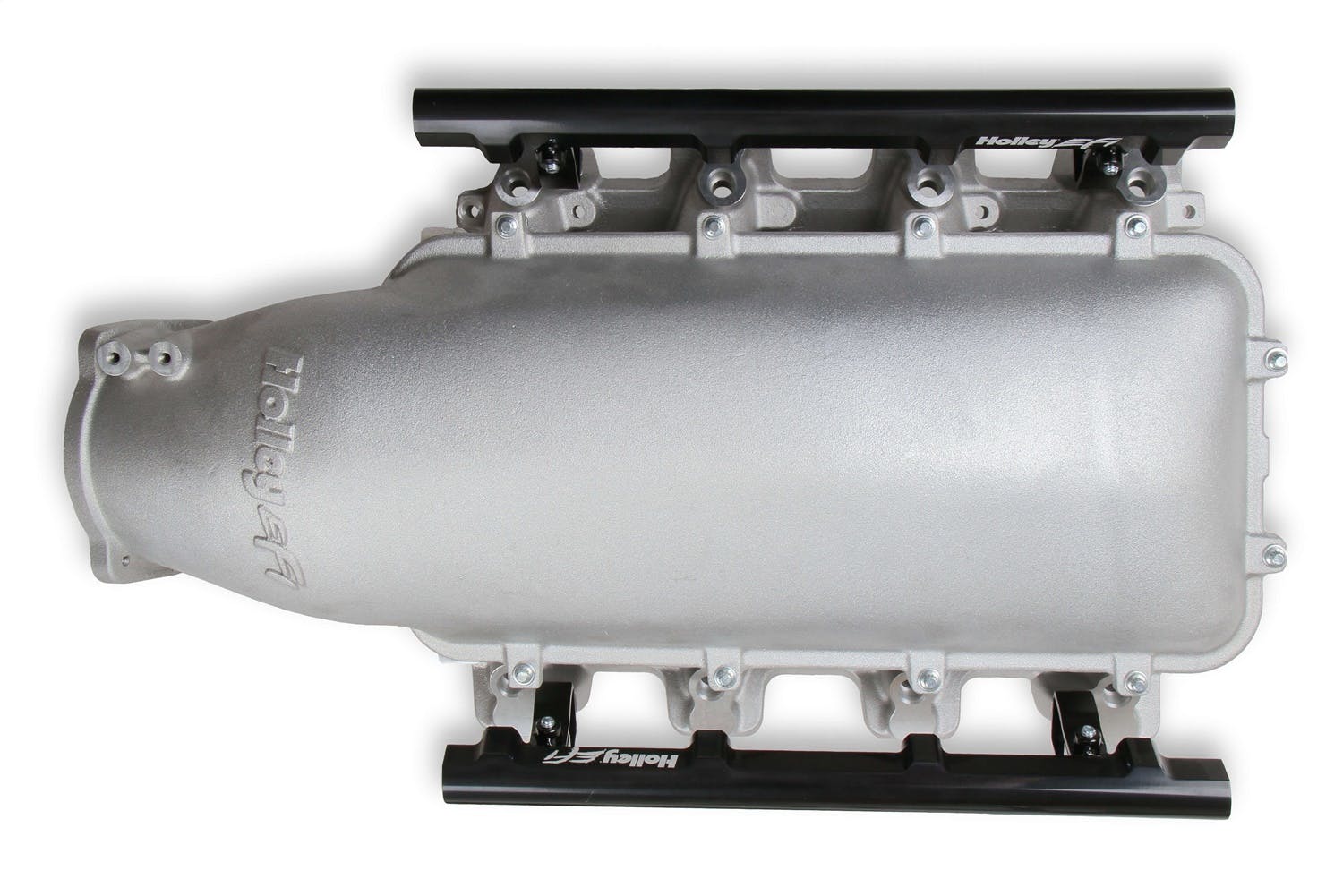

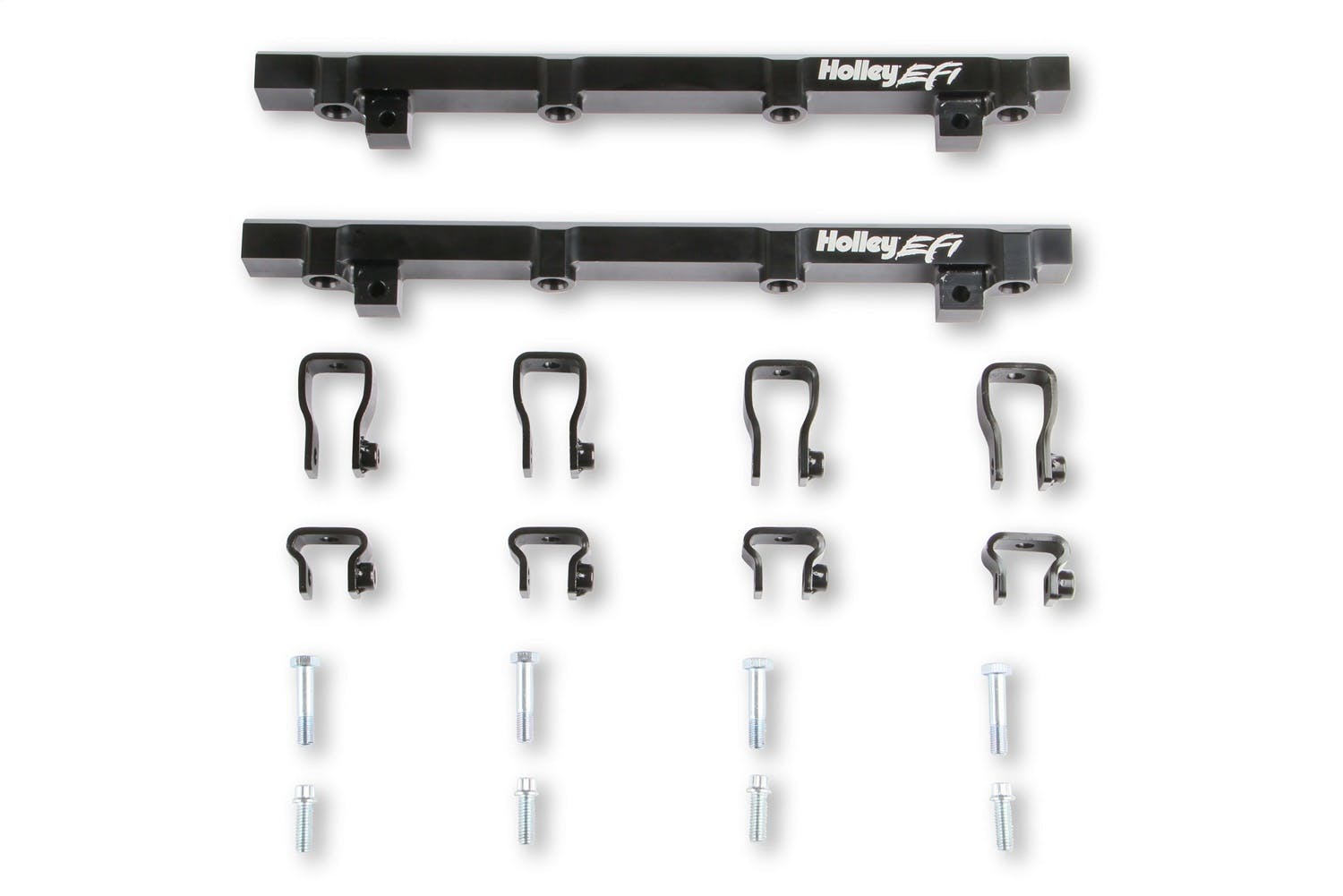

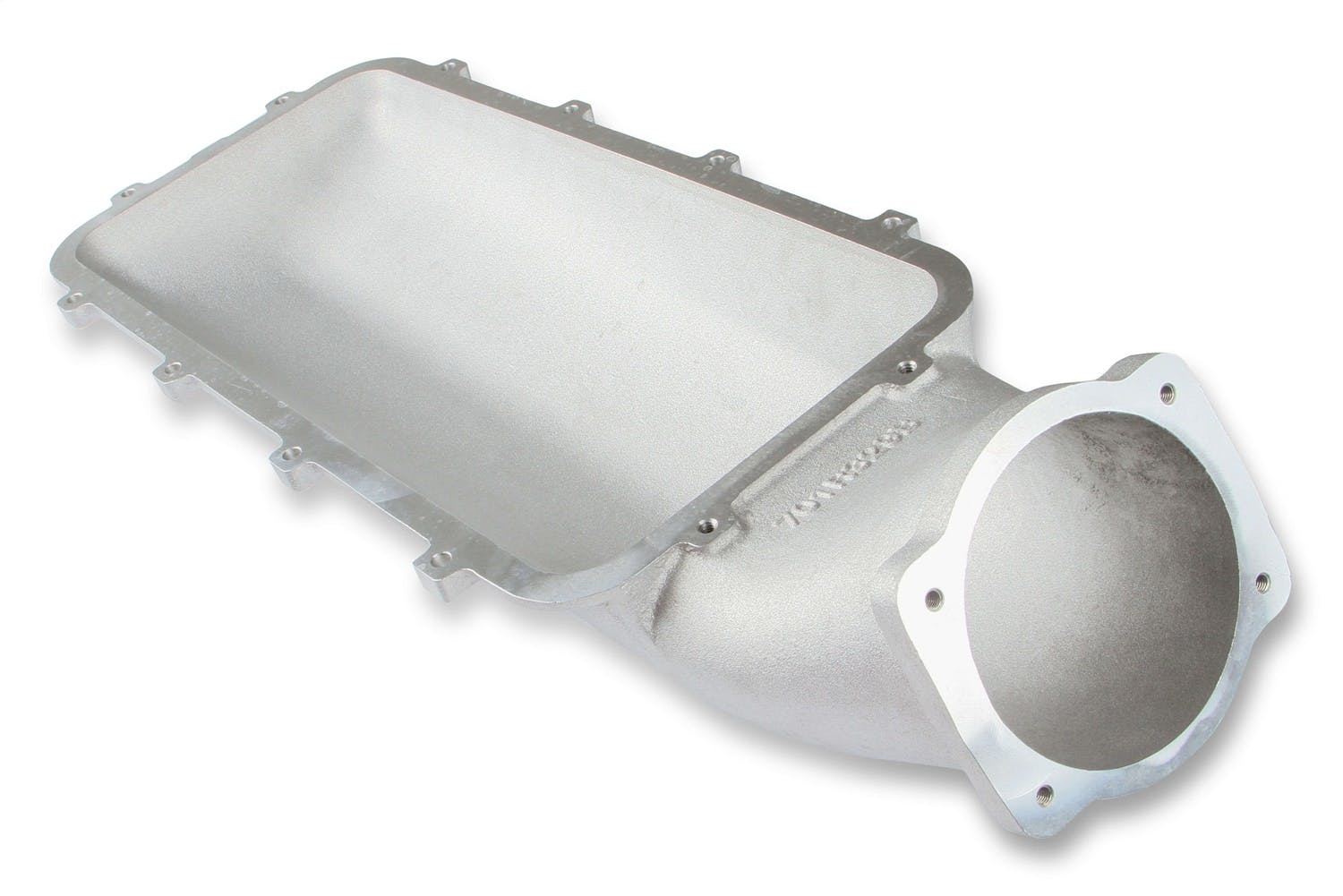

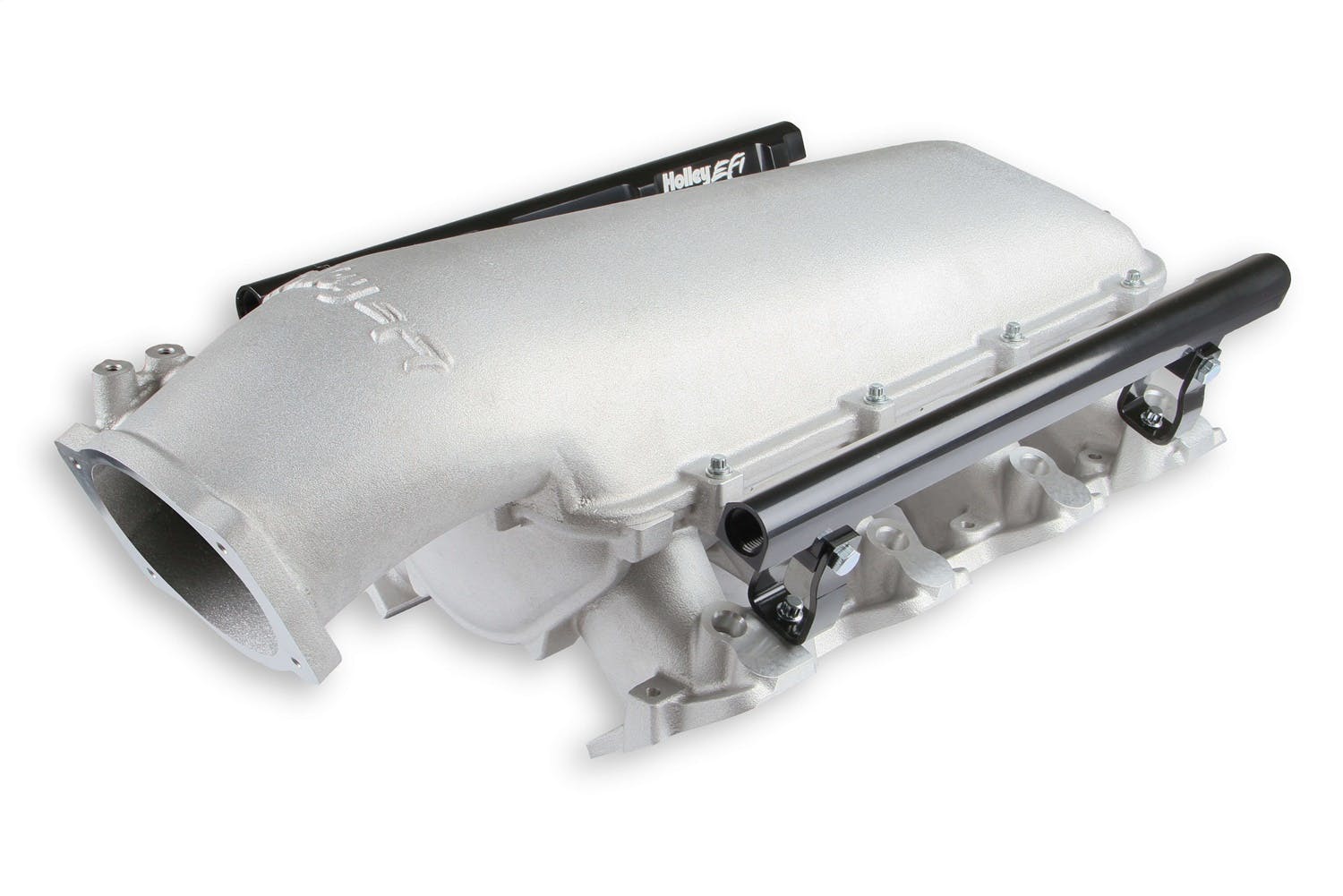

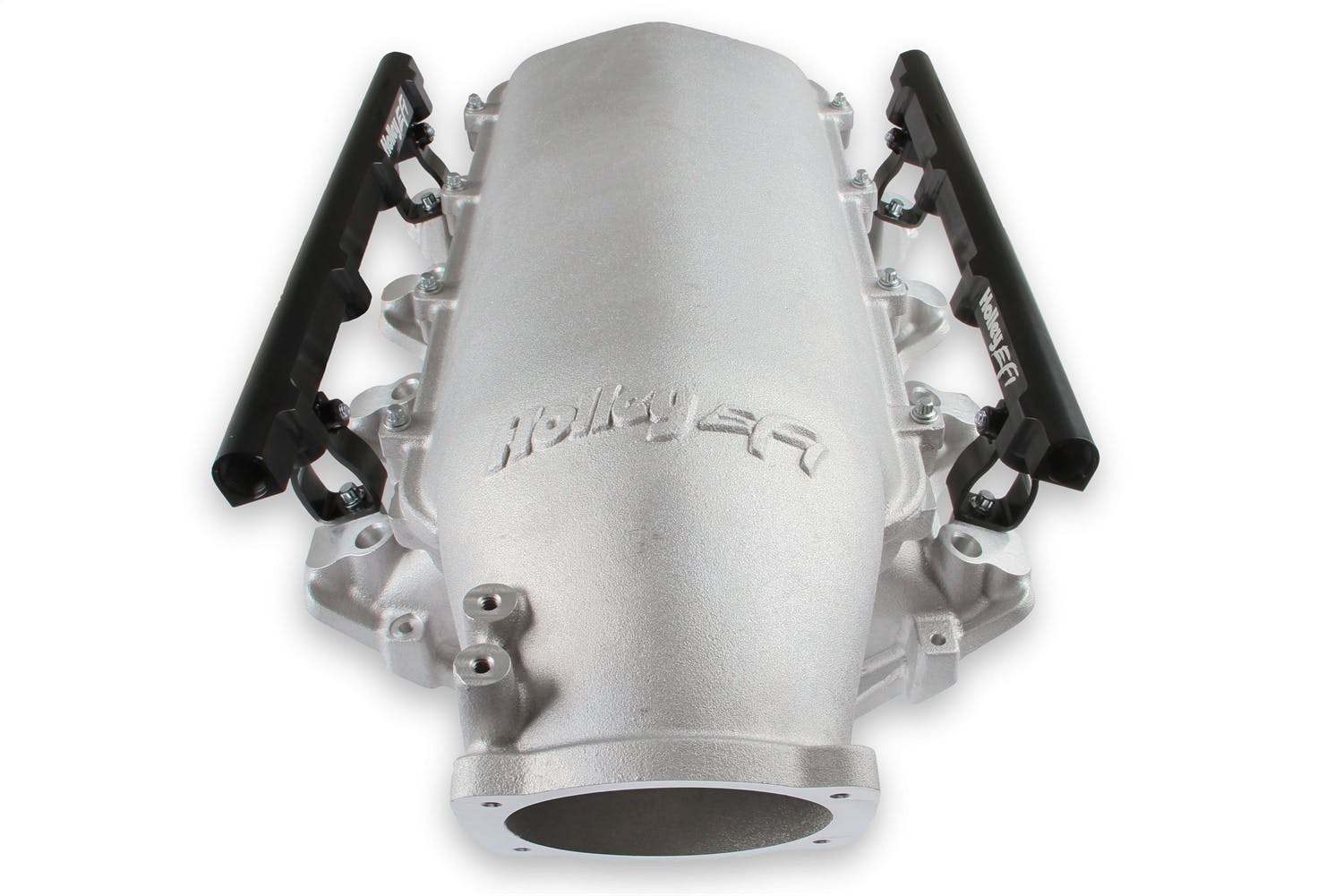

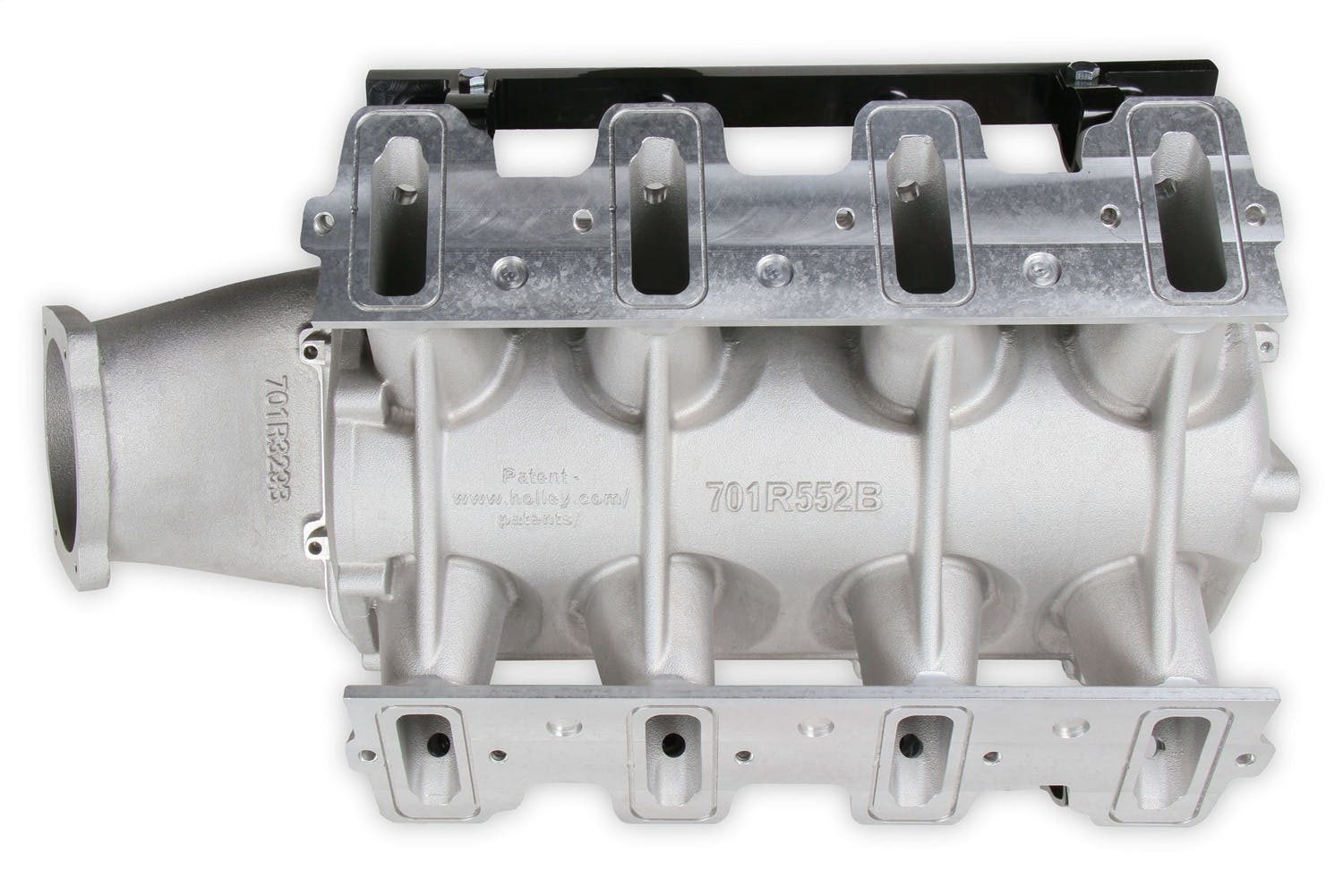

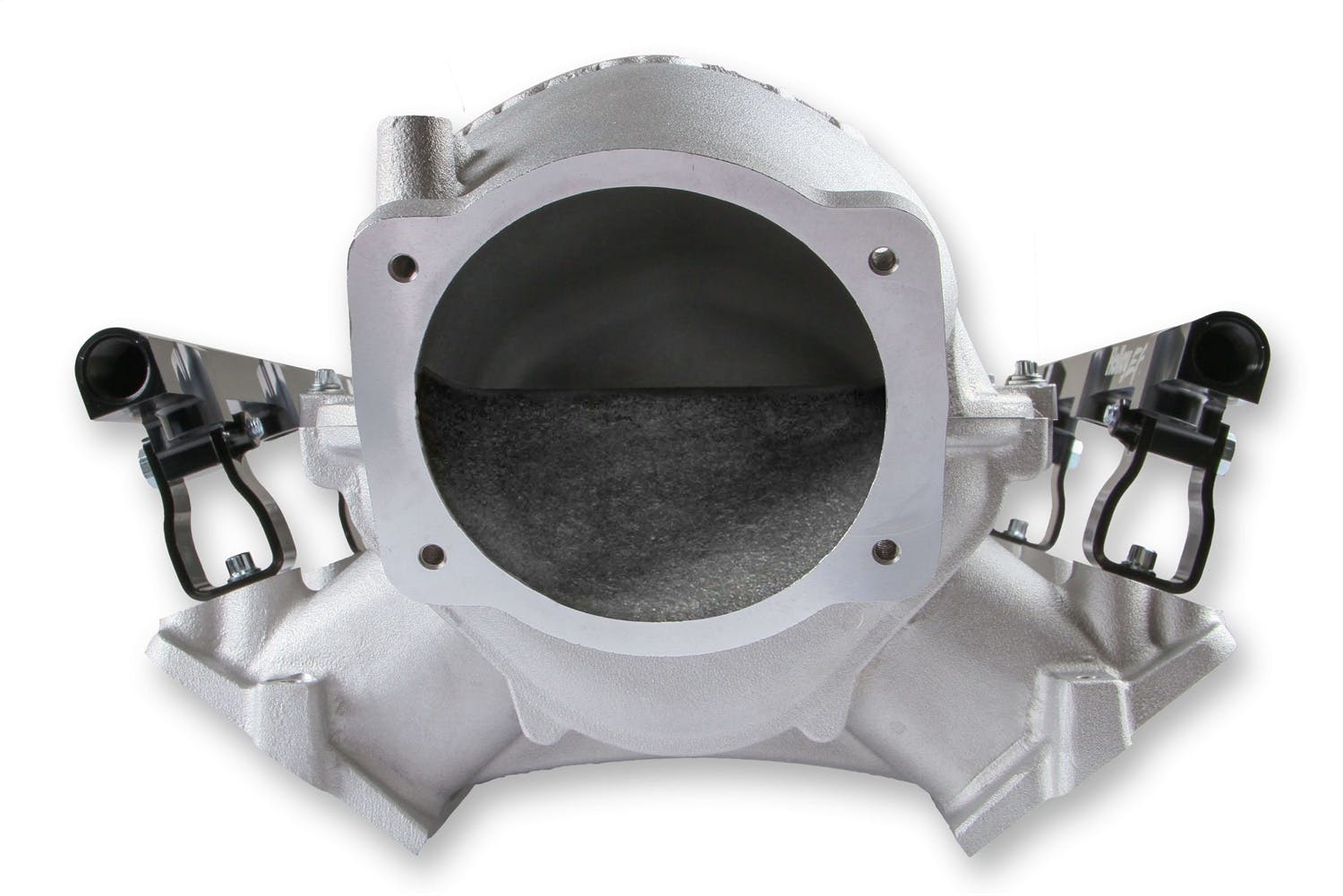

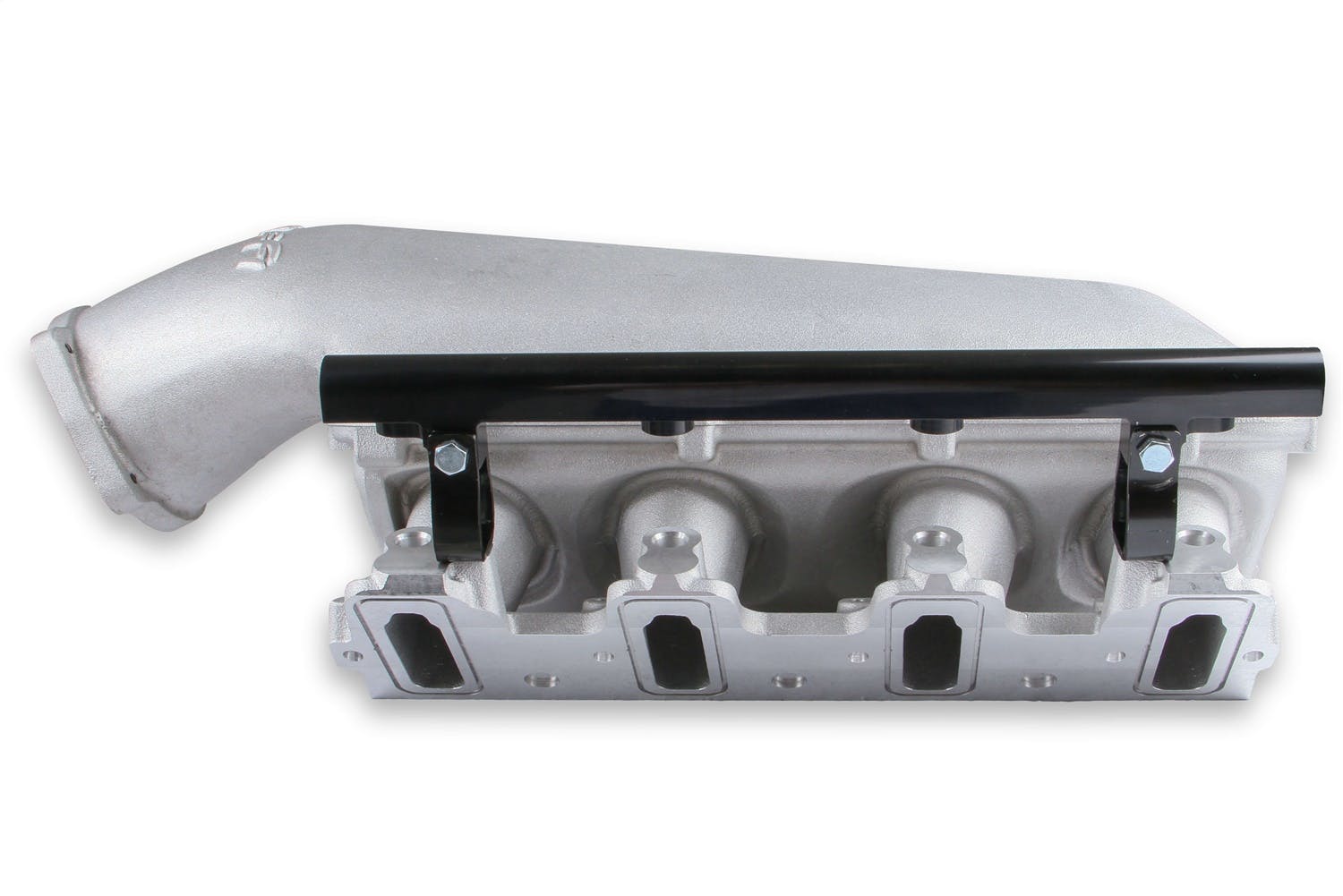

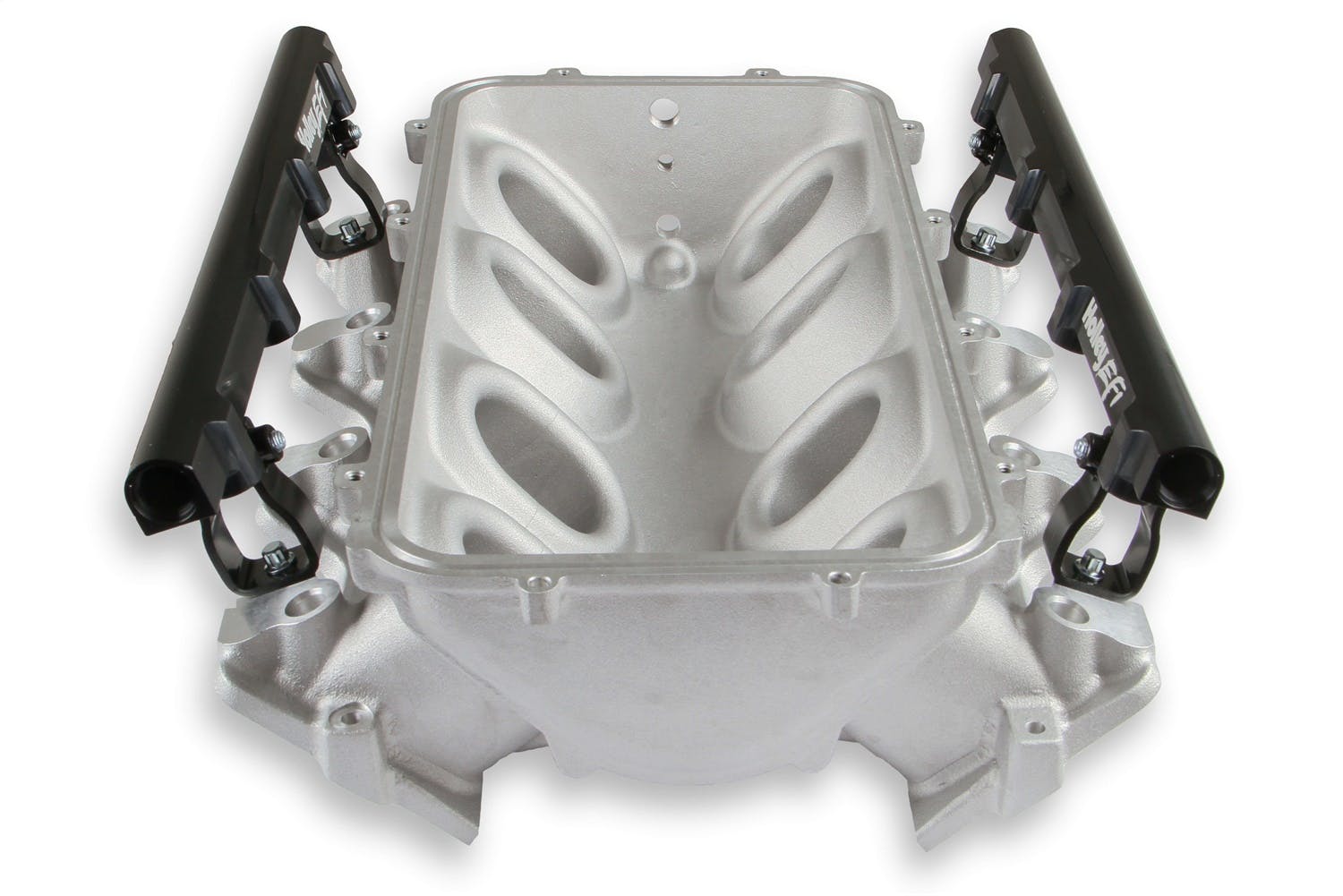

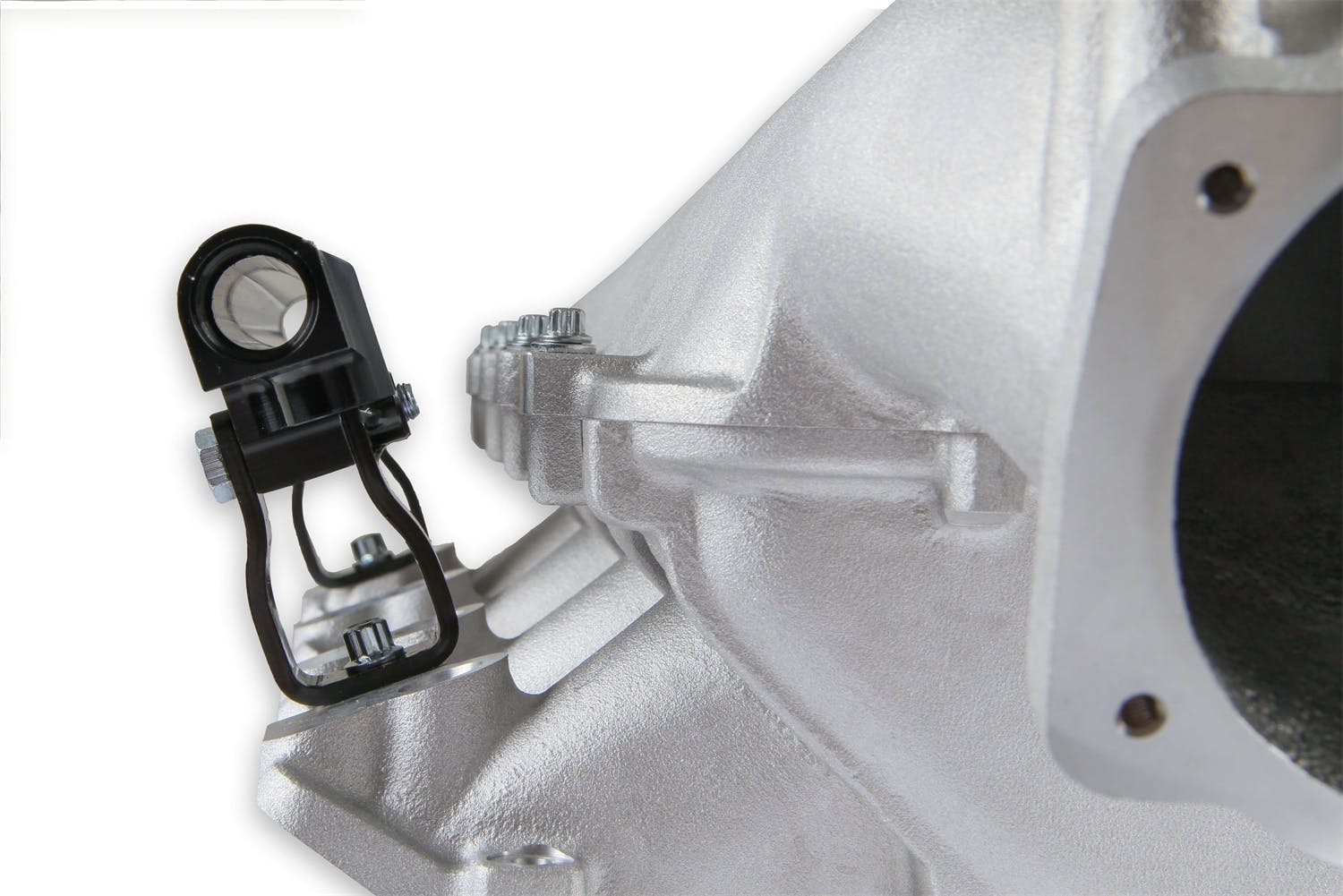

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration. The 300-620 top-feed plenum entry configuration is designed to allow the included Hi-Ram 105 mm plenum top to be fitted to a low-profile base intake manifold. The short runner, low-profile base intake manifold intended for forced induction applications was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
- For Forced Induction Engines With Peak Power At 7000-8000 Rpm

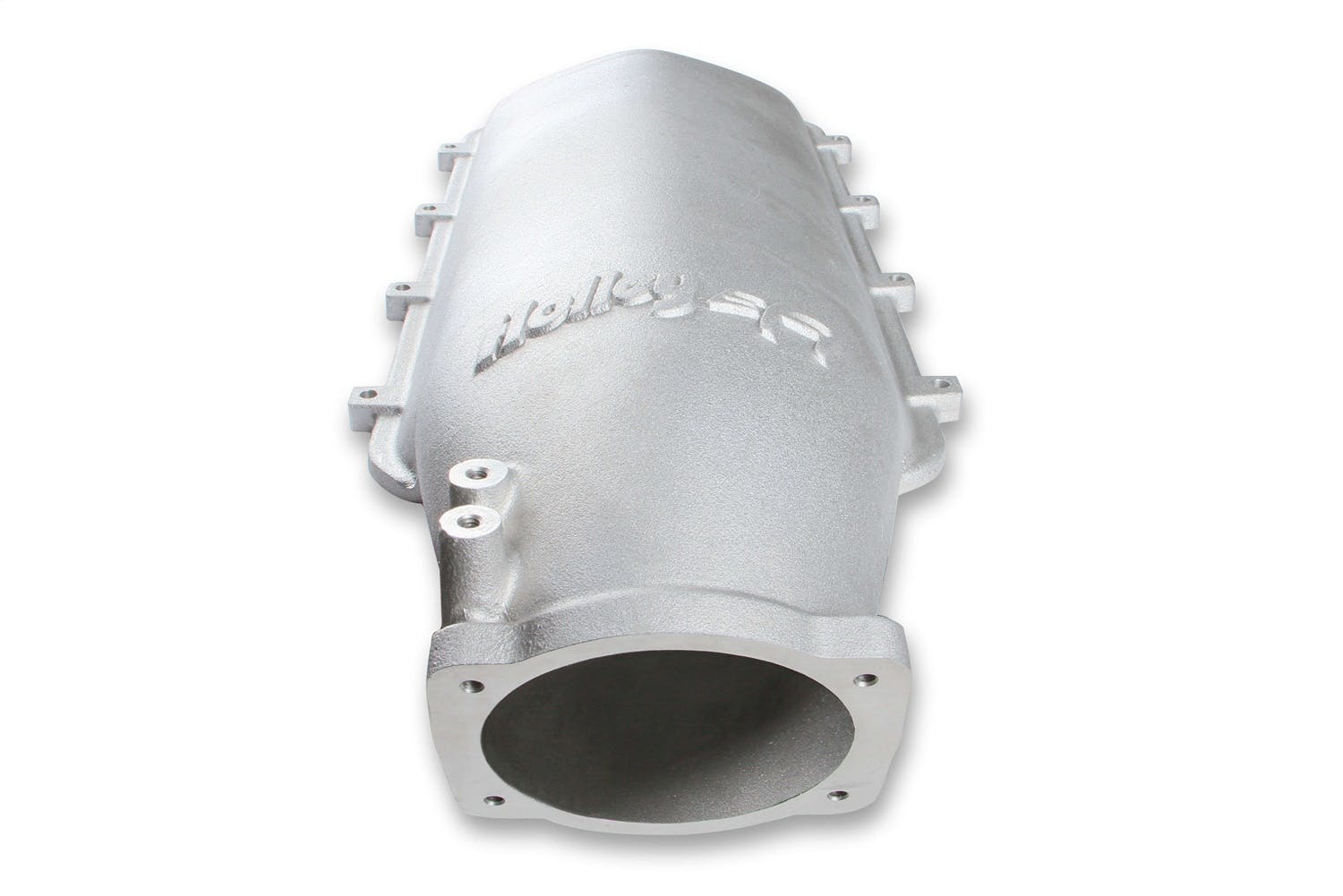

- Modular Design Allowing The Use Of The Included Top-Feed Plenum
- Plenum Mounted Air-To-Water Intercooler In A Top-Feed

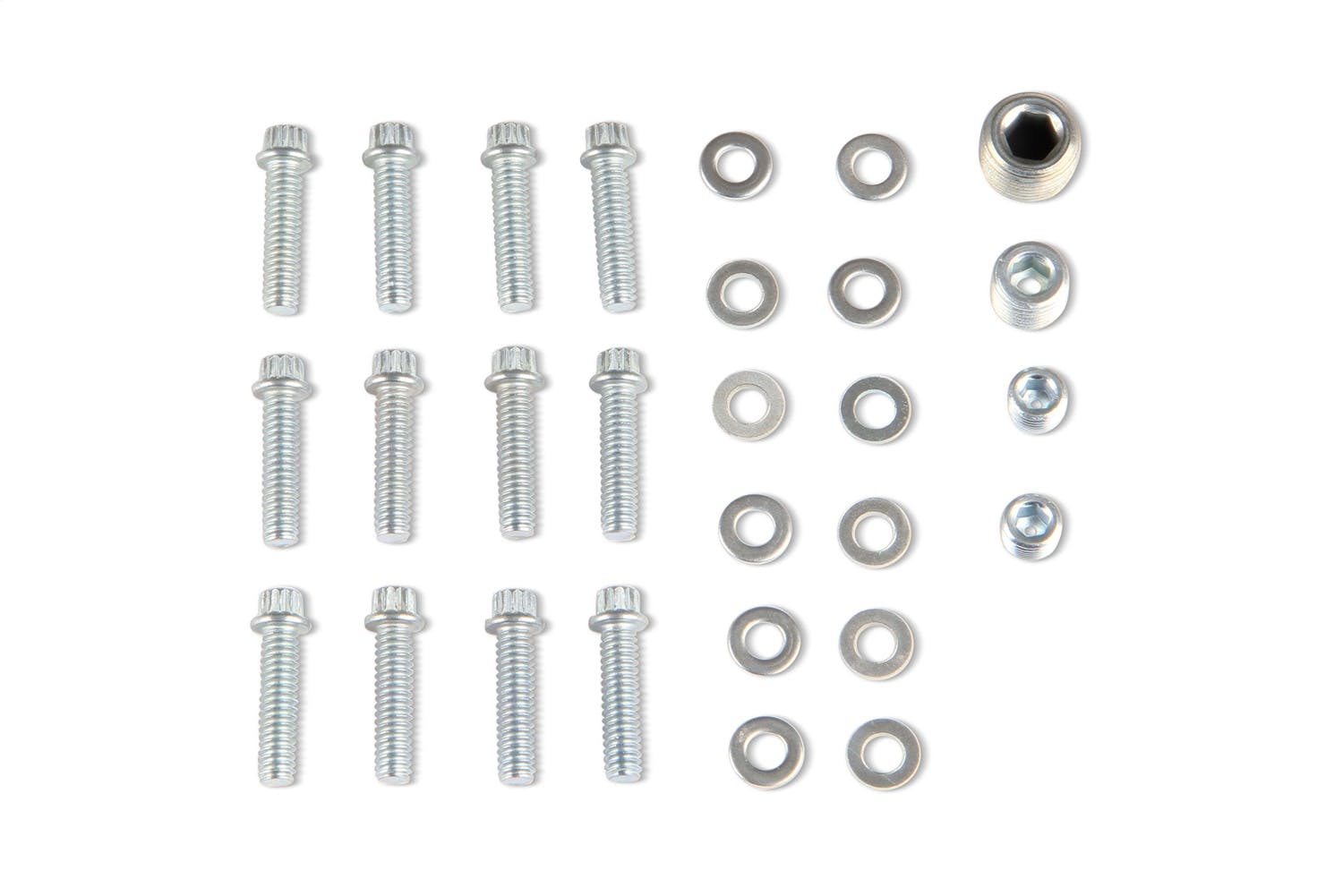

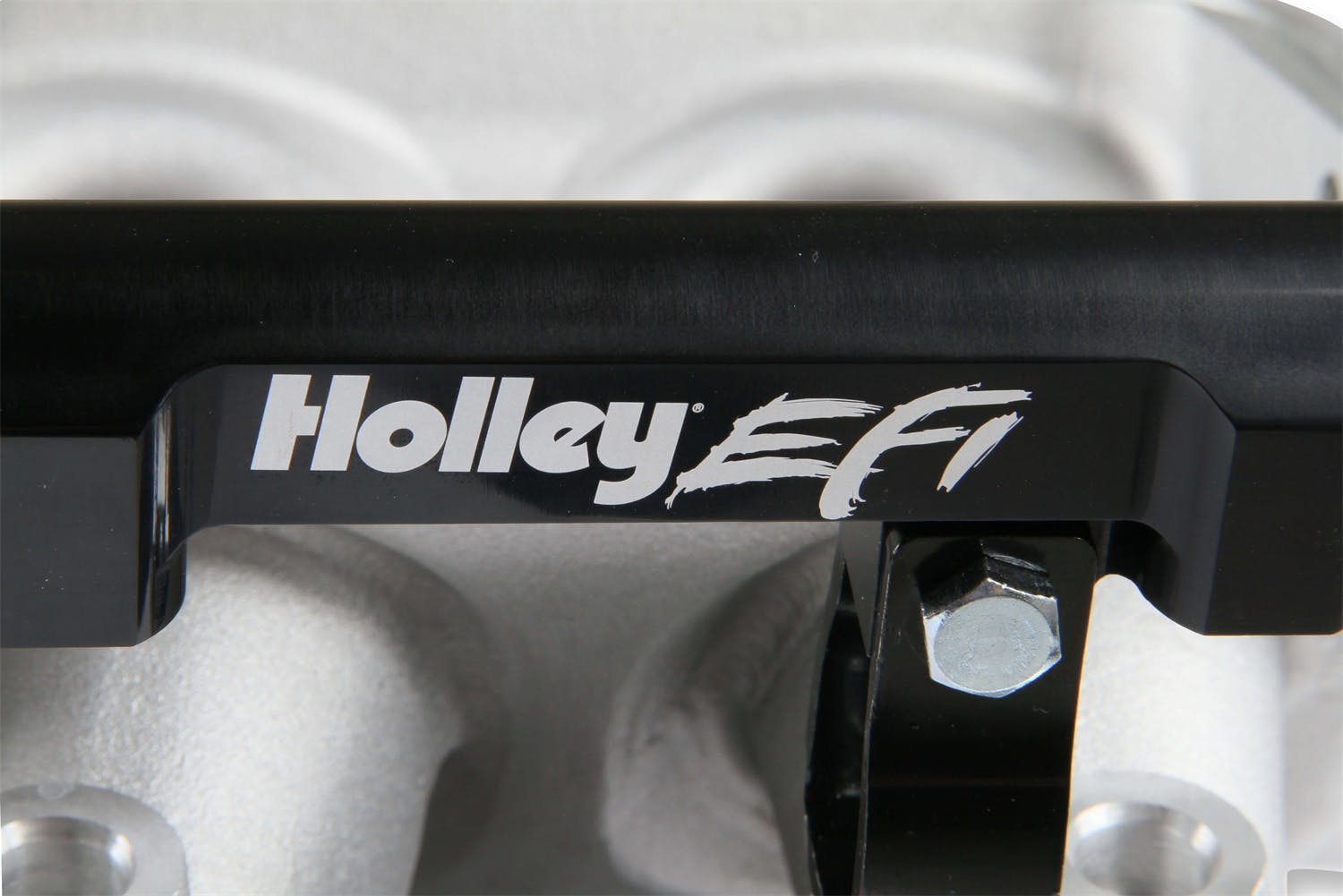

- High Volume Fuel Rails And Mounting Hardware Included
- 3/4 in.-16 O-Ring Ports 8 AN
Application Summary:
| Year |
Make/Model |
| Modular |
Lo-Ram EFI Manifold LS1/2/6 Top Feed |
