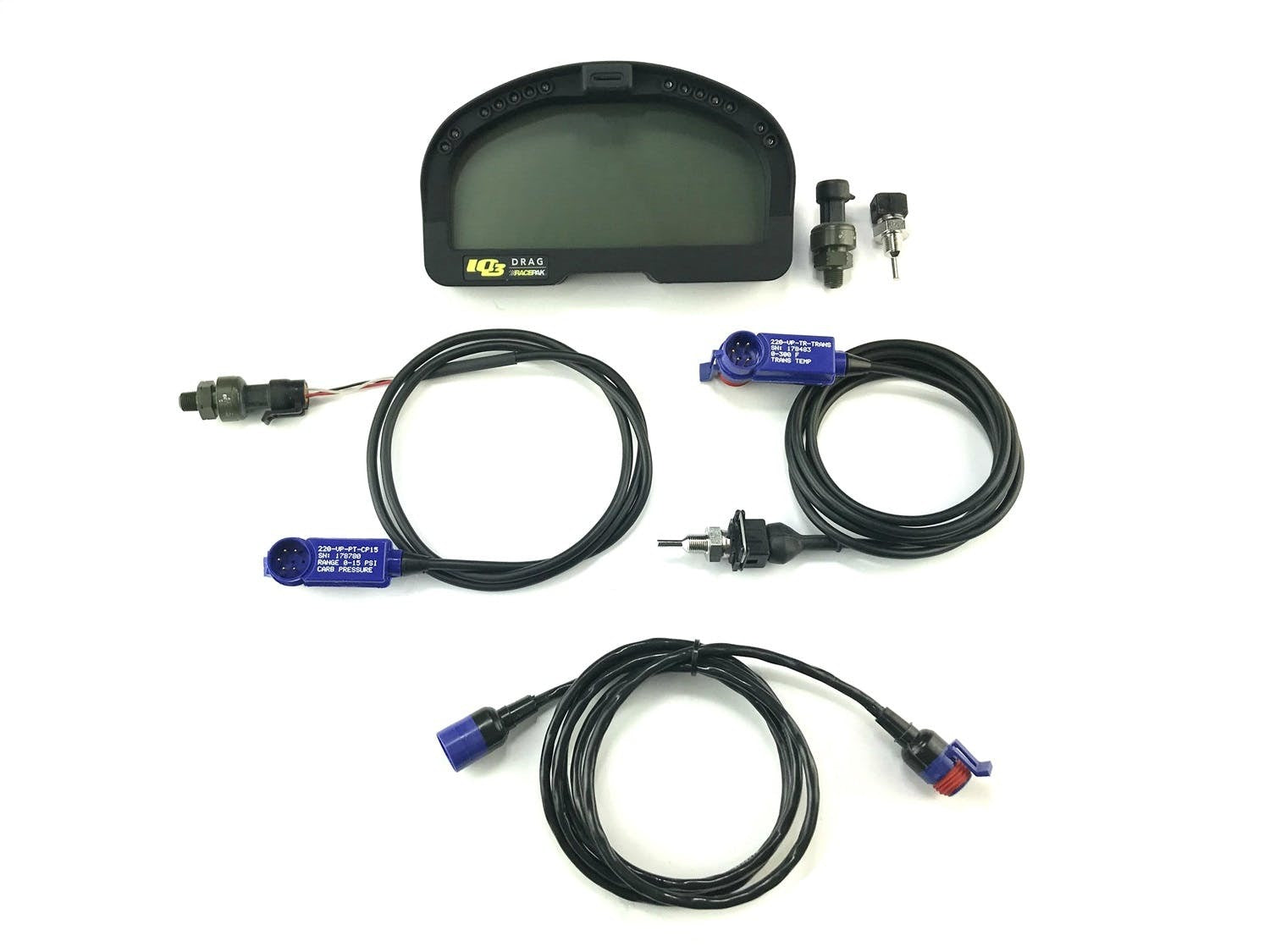

IQ3D Drag Logger Dash Bracket Bundle; Incl. IQ3D Data Logger Dash/Wiring Harness/Oil P.-Water Temp. Sensors/MicroSD Card and Reader/V-Net Modules/72 in. Cable/Cable/Software;
The IQ3D Drag Logger Dash is the perfect solution for the sportsman drag racer looking for instrumentation and data logging in one convenient package. Now, Racepak makes it even easier for today's bracket racers. The IQ3D Bracket Bundle combines an IQ3D Drag Logger Dash with the most common V-Net modules used by bracket racers. The IQ3D already includes sensors for oil pressure and water temperature. The bundle adds V-Net modules for carburetor pressure and transmission temperature, along with a 72 V-Net cable to connect the modules to the dash. The IQ3D Drag Logger Dash features four user-definable pages of data, along with programmable shift lights and warning lights. It can also connect to most CAN based EFI and ECU systems with a single cable. Data is recorded on a microSD memory card located on the face of the dash for easy access.
- Records Engine and Driveshaft RPM/Oil PSI/Water Temp
- Programmable Shift Light Output For Up To 6 Shift Points
- Shielded Low Luster Display For Sunlight Viewing
- Connects To Over 20 Aftermarket EFI Products
- Shock Travel Upgrade Package Available
- V-Net 0-15 lbs. Carburetor Pressure Models
- V-Net Transmission Pressure Module
- Records Battery Voltage/12V Event
- Displays Up To 28 Inputs Via 4 Pages MicroSD Memory Card
- Blue Dimmable Backlight
- Four User Defined Alarms
- User Defined 5 Character Sensor Input Names
