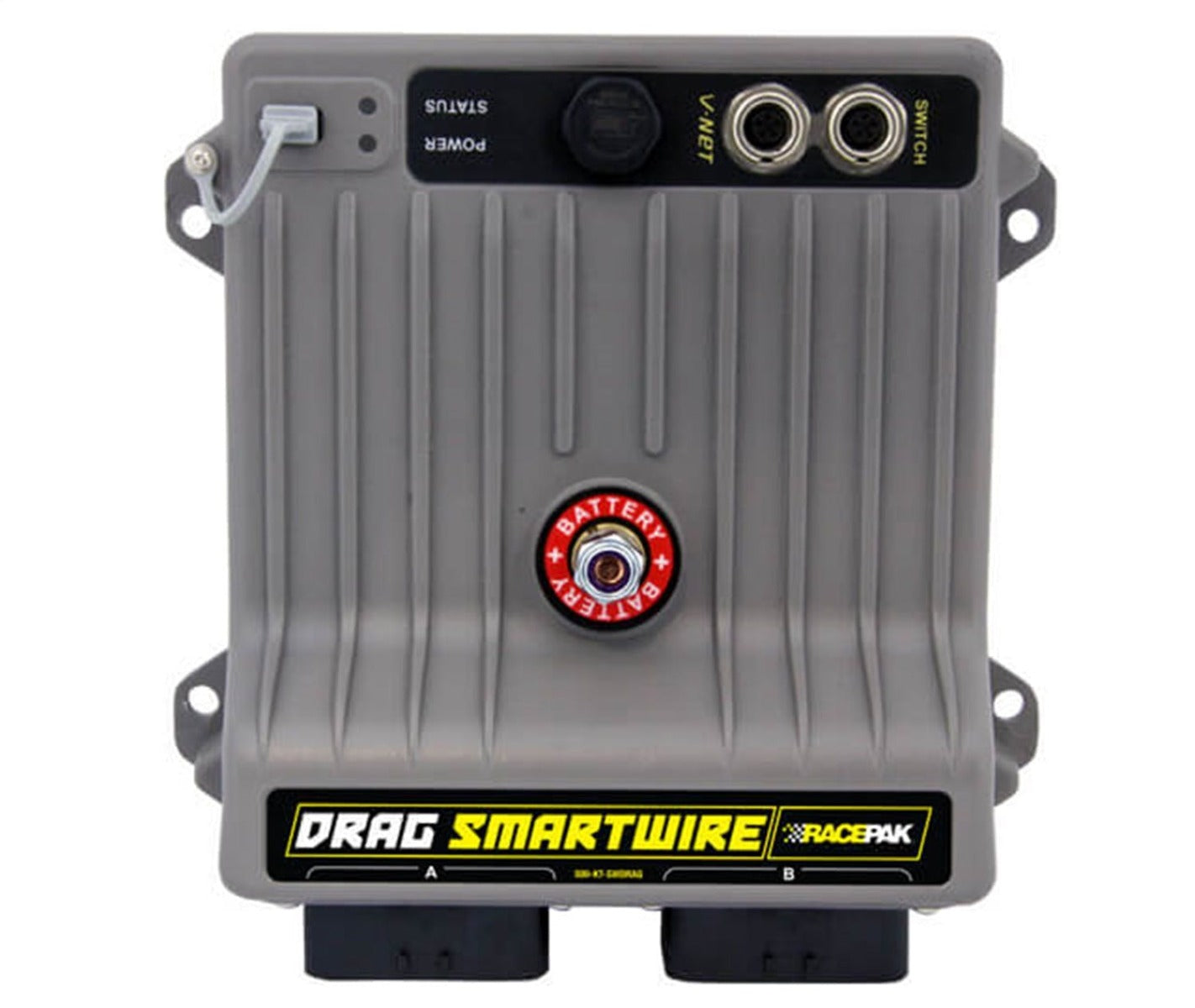

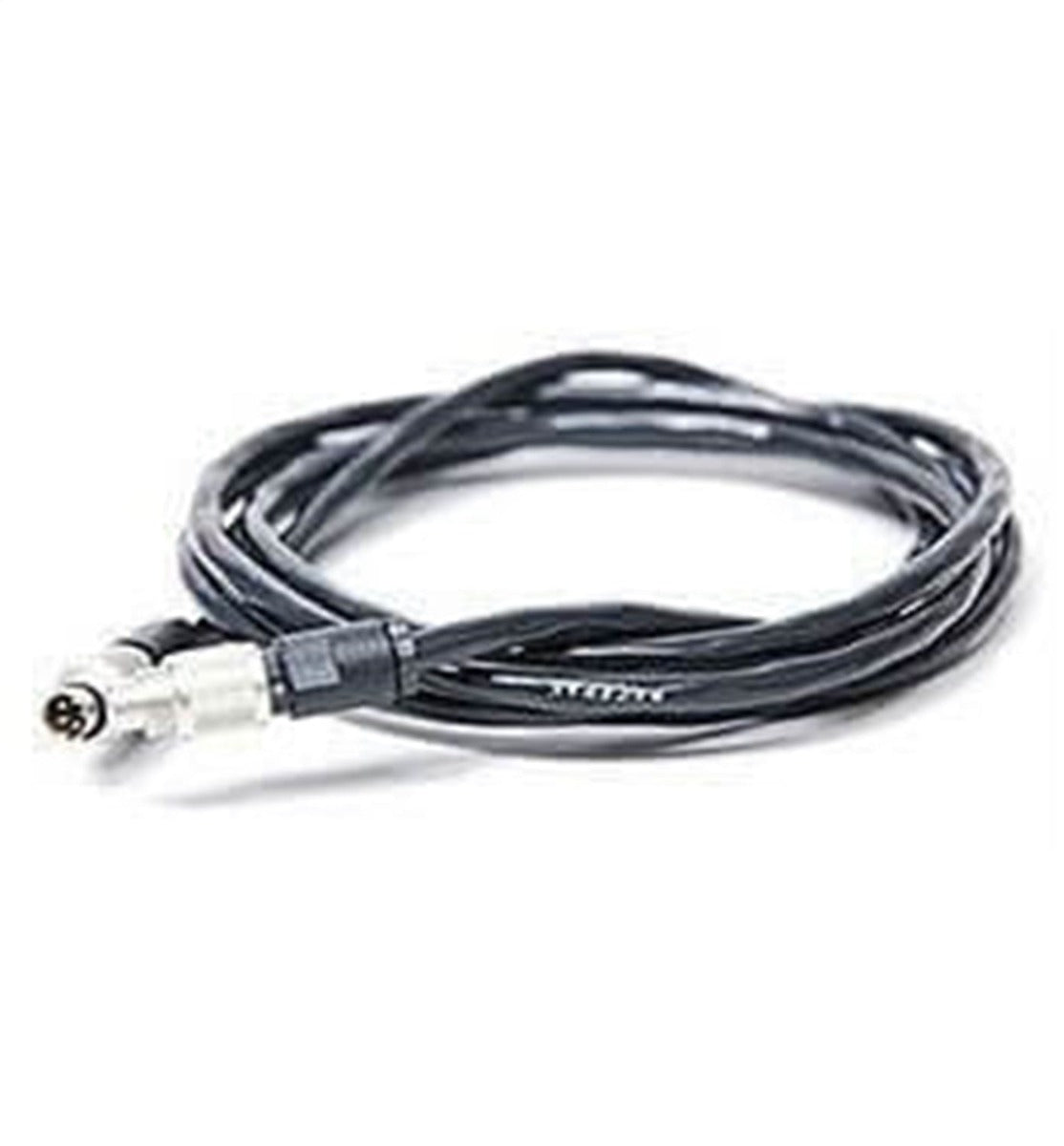

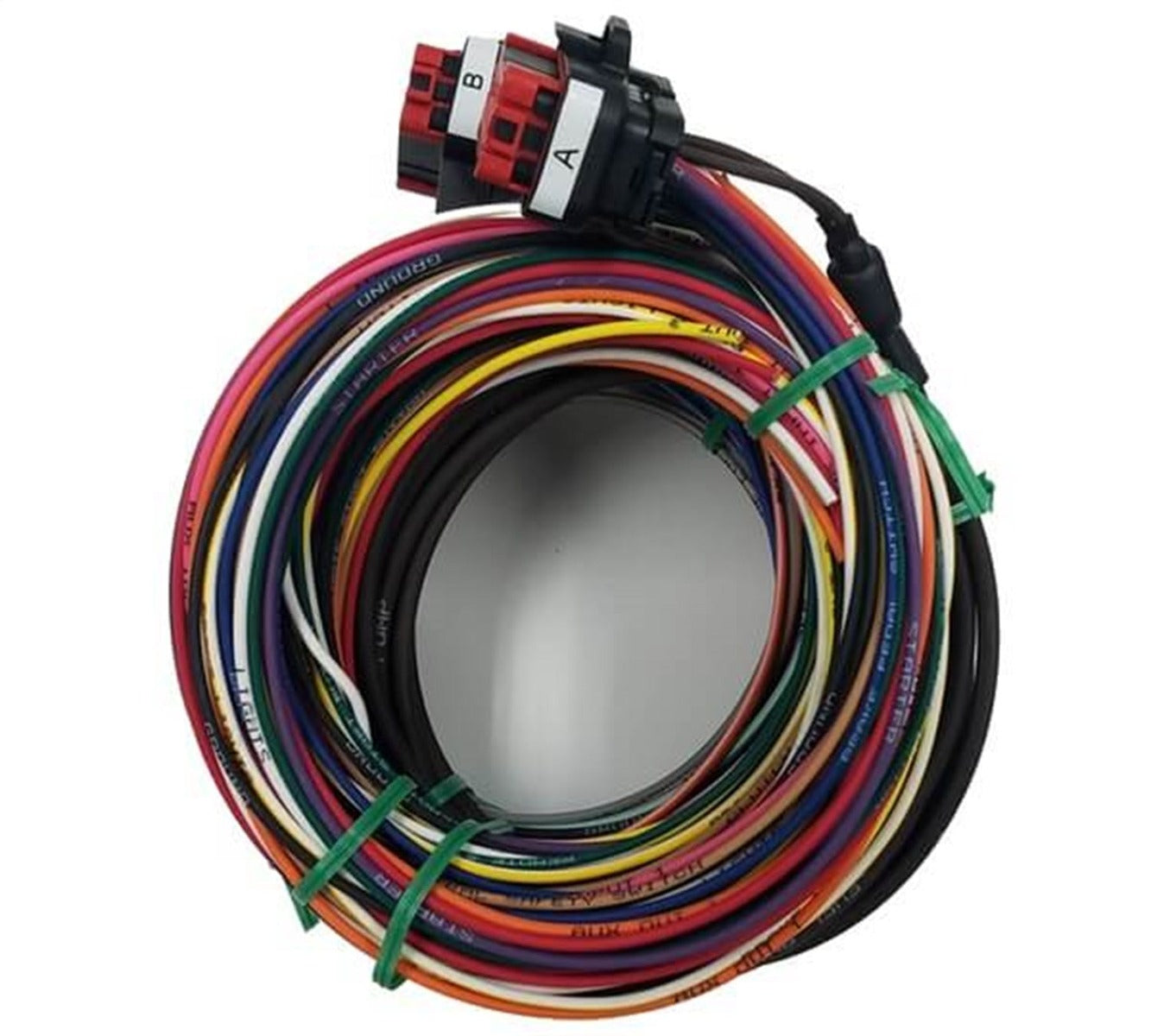

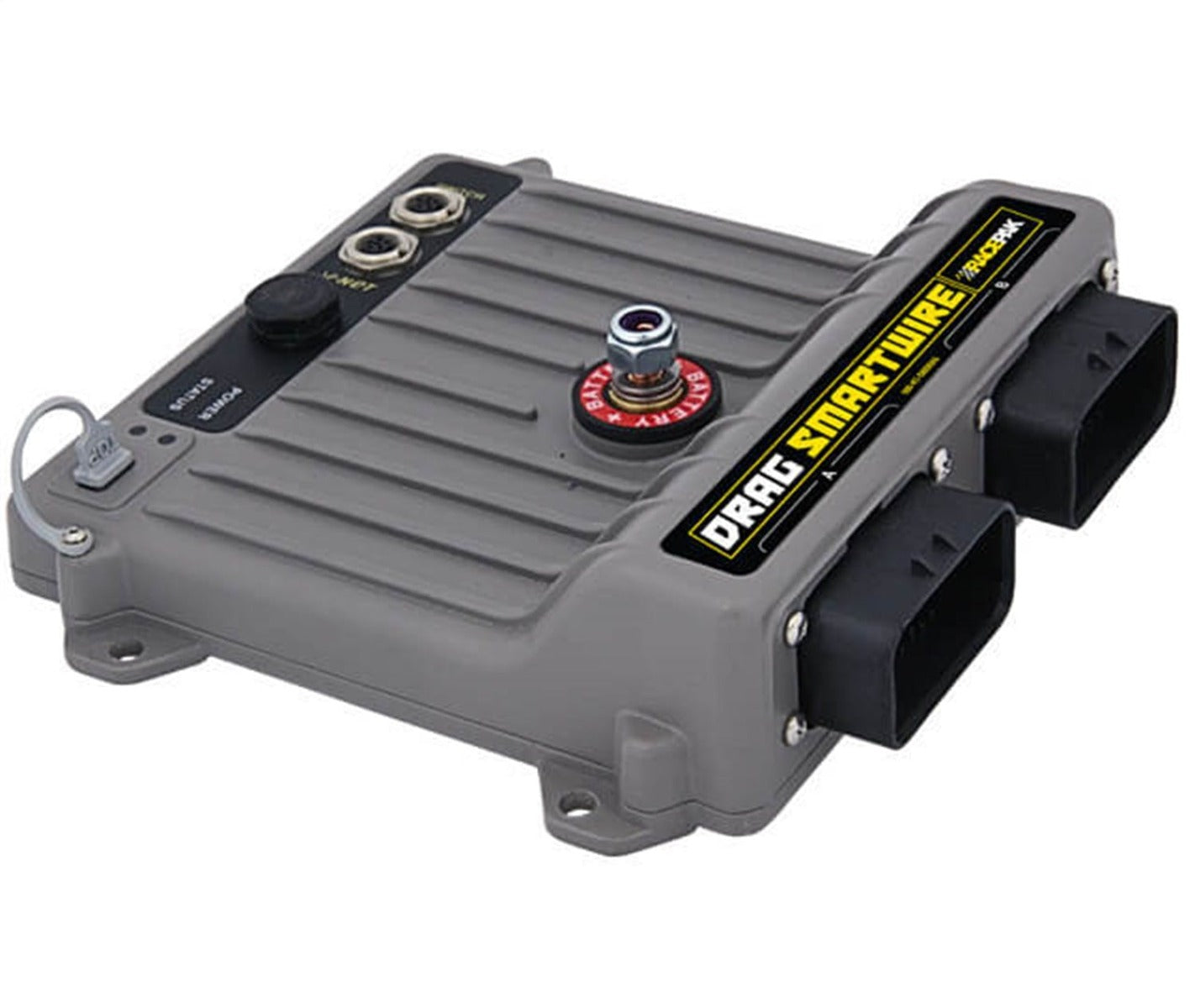

K8 Drag SmartWire Power Control Module; Incl. Smartwire/Keypad/Wiring Harness/96 in. Smartwire To Switch Panel Cable/USB Programming Cable/Racepak Datalink II Software;
The Drag SmartWire eliminates traditional fuses, breakers and relays in almost any drag racing vehicle. Includes Keypad.
- Eliminates Traditional Fuses
- Output Protection: User definable over current limits. Internal short circuit and/or thermal overload (non definable)
- 8 Channels at 20 Amps Maximum for high amperage applications such as electric fuel pumps or starter solenoids.
- 22 Channels at 10 Amps Maximum for low amperage applications such as head lights, turn signals, or small cooling fans.
- 12 Hardwired Switched Inputs - Voltage triggered >2.7V or Ground Triggered <2.5V
- Data Output: Volts, Amps, Status (On/Off).
- Test Mode: This software integrated feature allows you to quickly determine if an input or output is working as intended.
- Response Time: 3.0 Miliseconds
- Programming: USB Cable with Free Datalink II Software
- Dimensions: 6 (L) x 5.5 (W) x 1.5 (H)

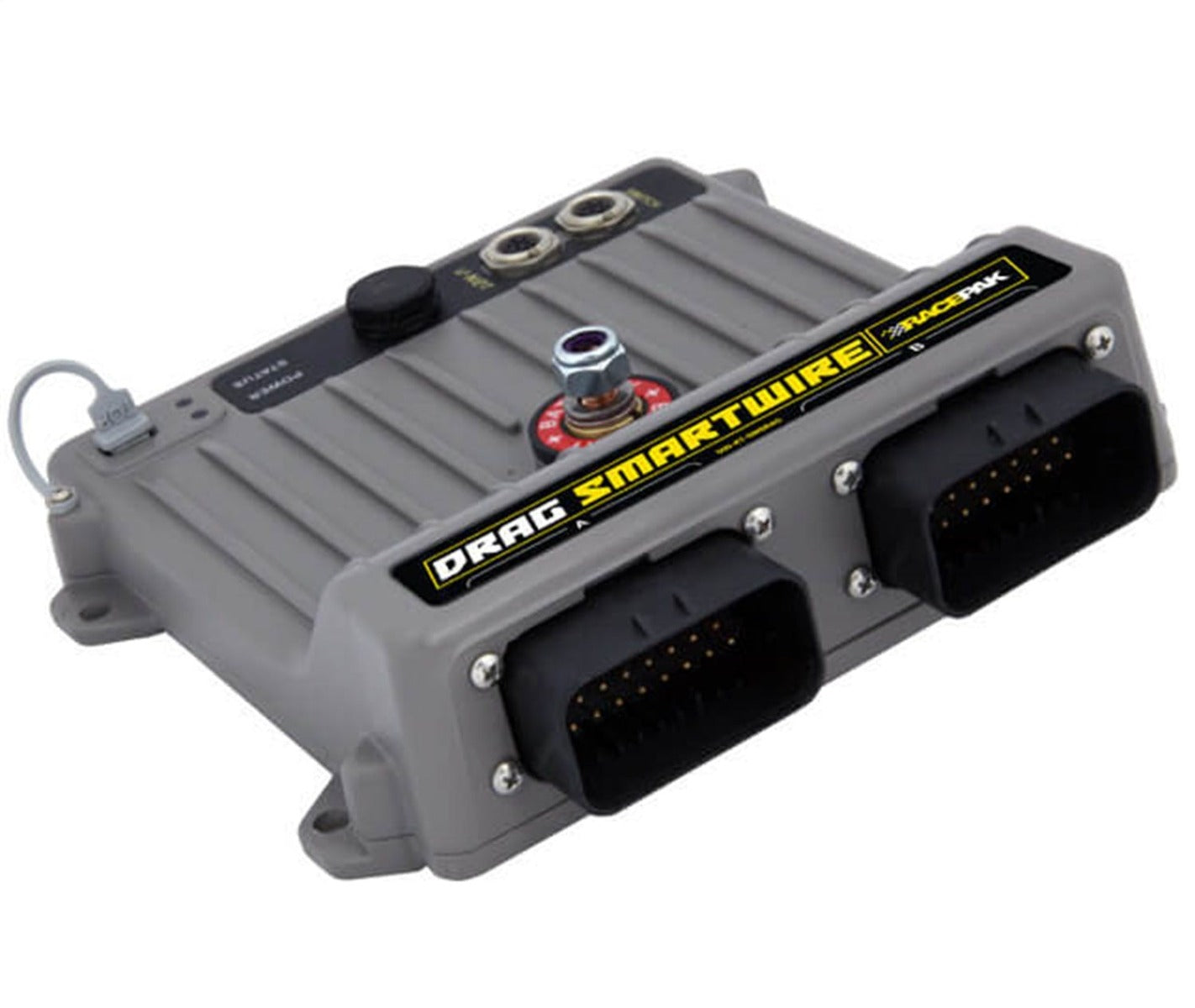

- Connectors: Two - 23 pin Ampseal, One 1/4 x 20 Main Power Stud, One mini USB (for programming), One Switch CAN bus (for optional switch panel or module), One V-Net CAN bus for optional V-net accessories, such as sensors).

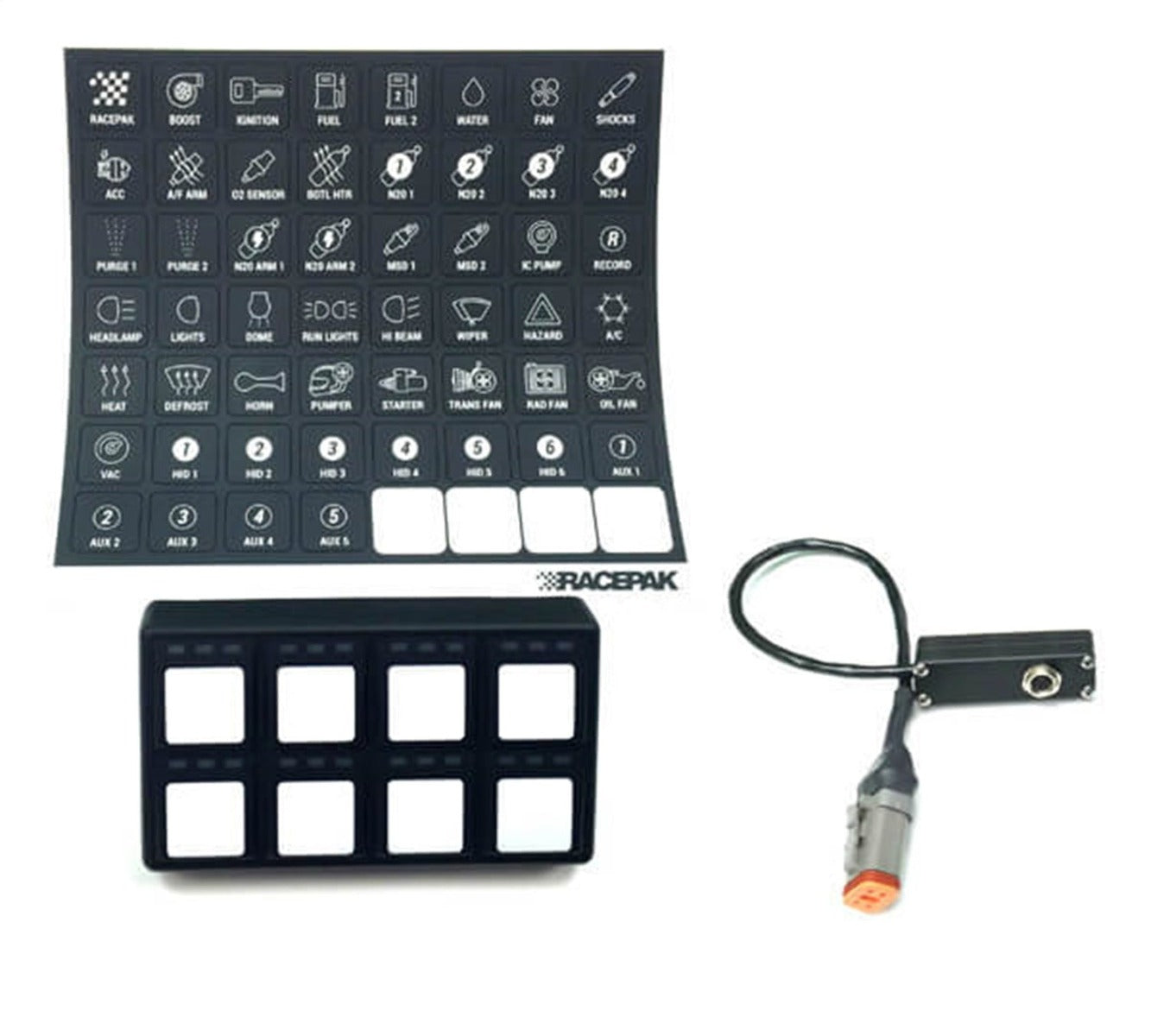

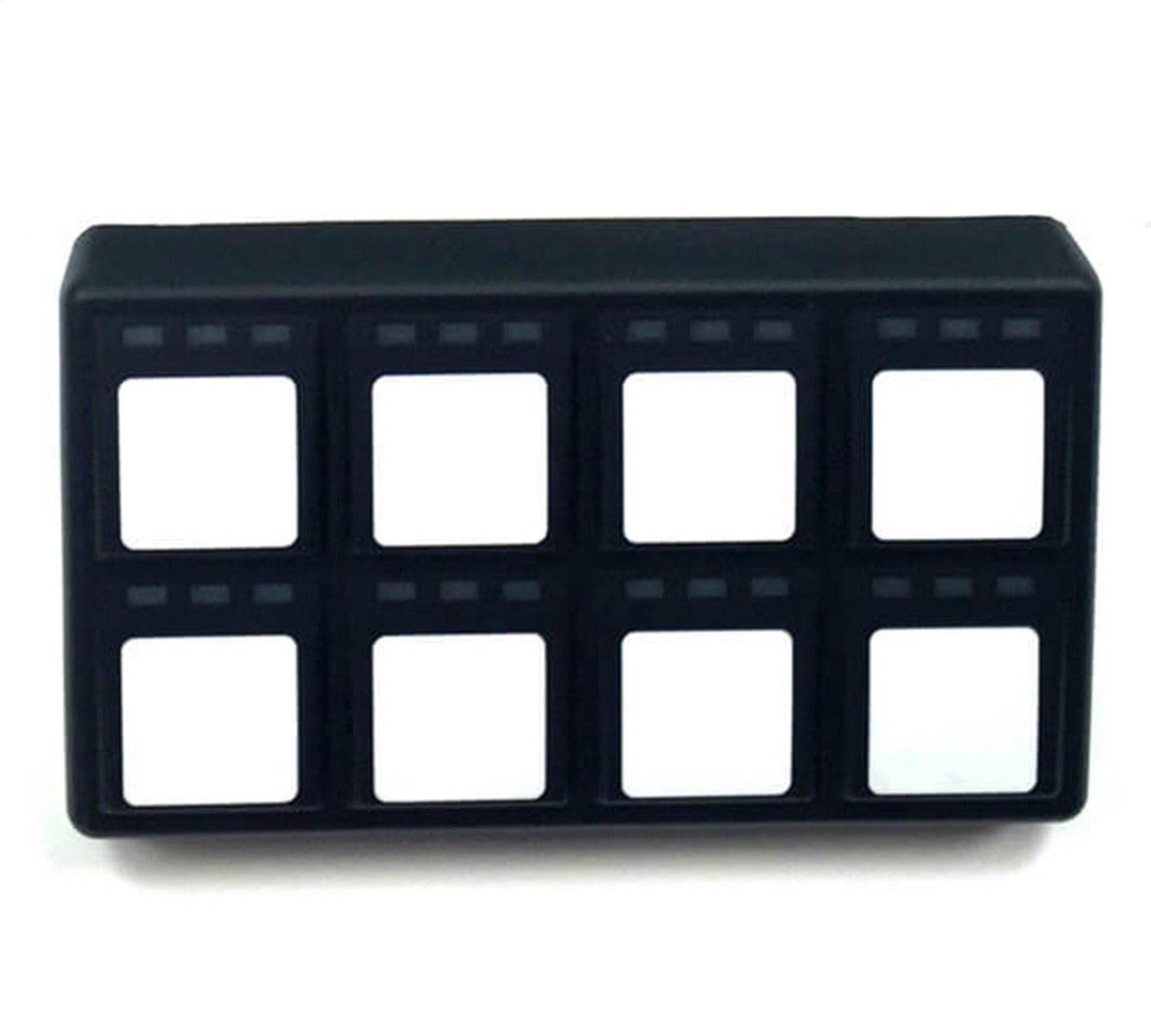

- Includes Keypad
- Operating Power Supply: 12-16 volt automotive applications
- 30 Total Output Channels
