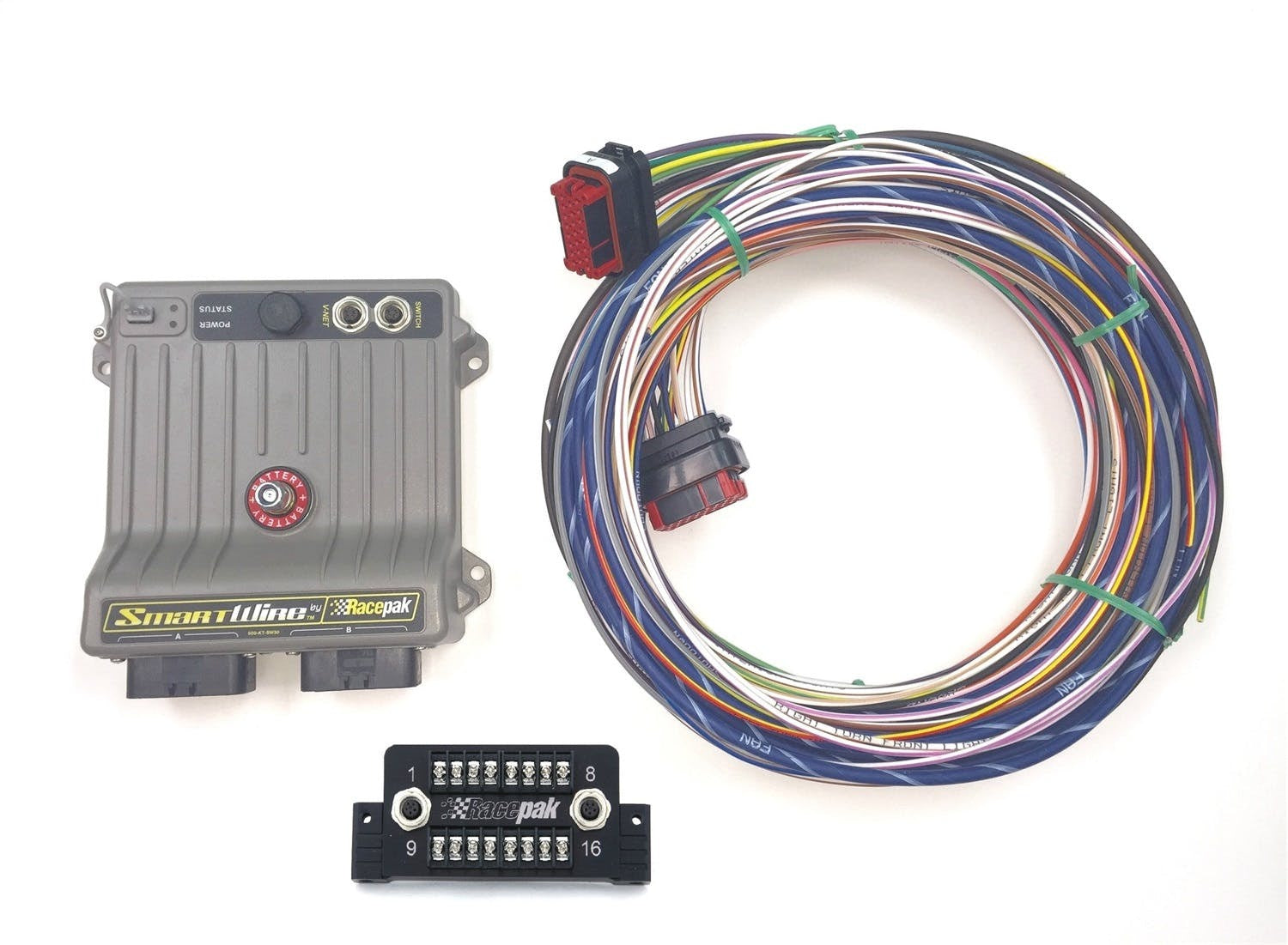

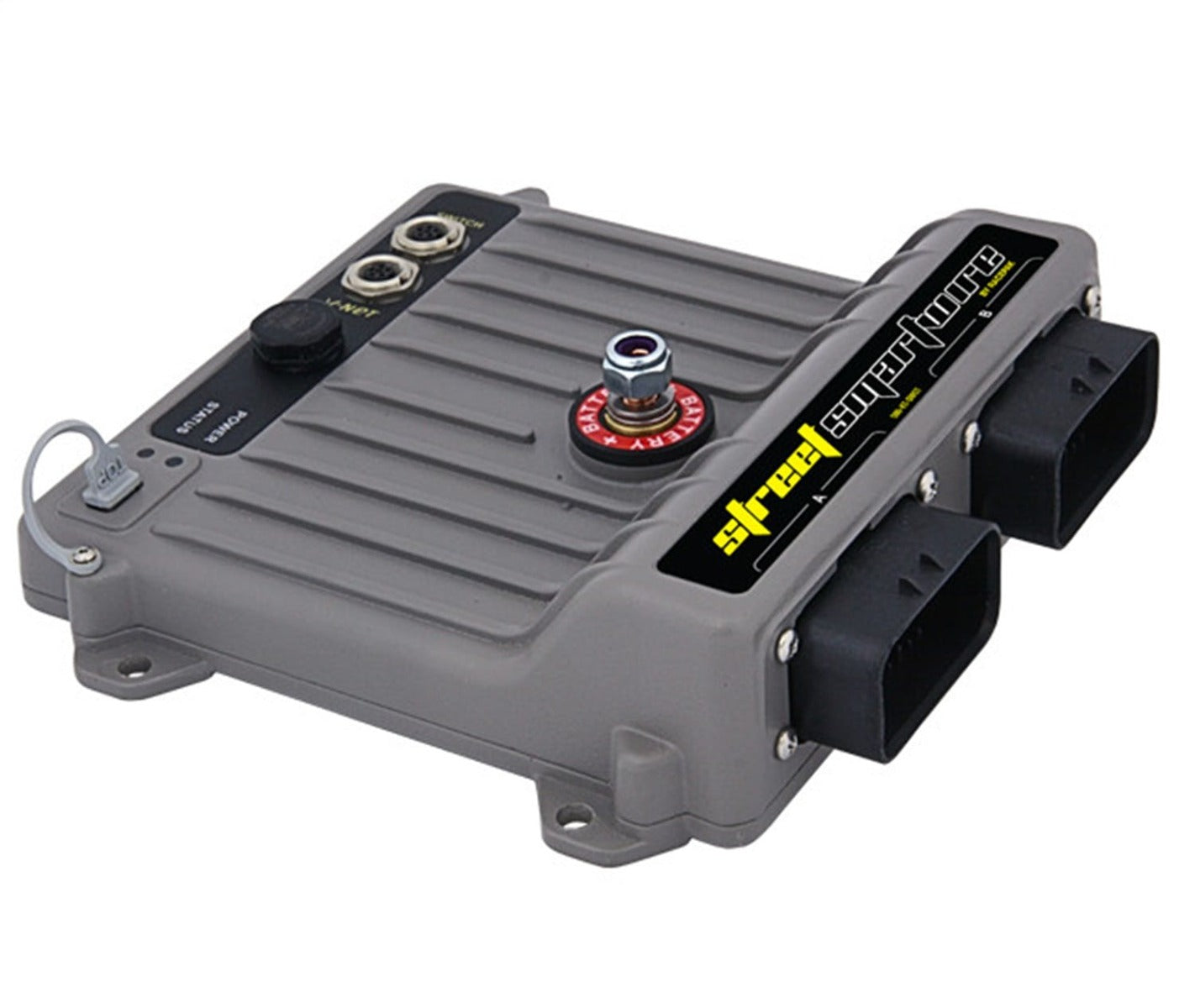

Street SmartWire Power Control Module; Incl. Street SmartWire Switch Module / Labeled Wiring Harness / Smartwire To Switch Module Cable / USB Programming Cable / Software;

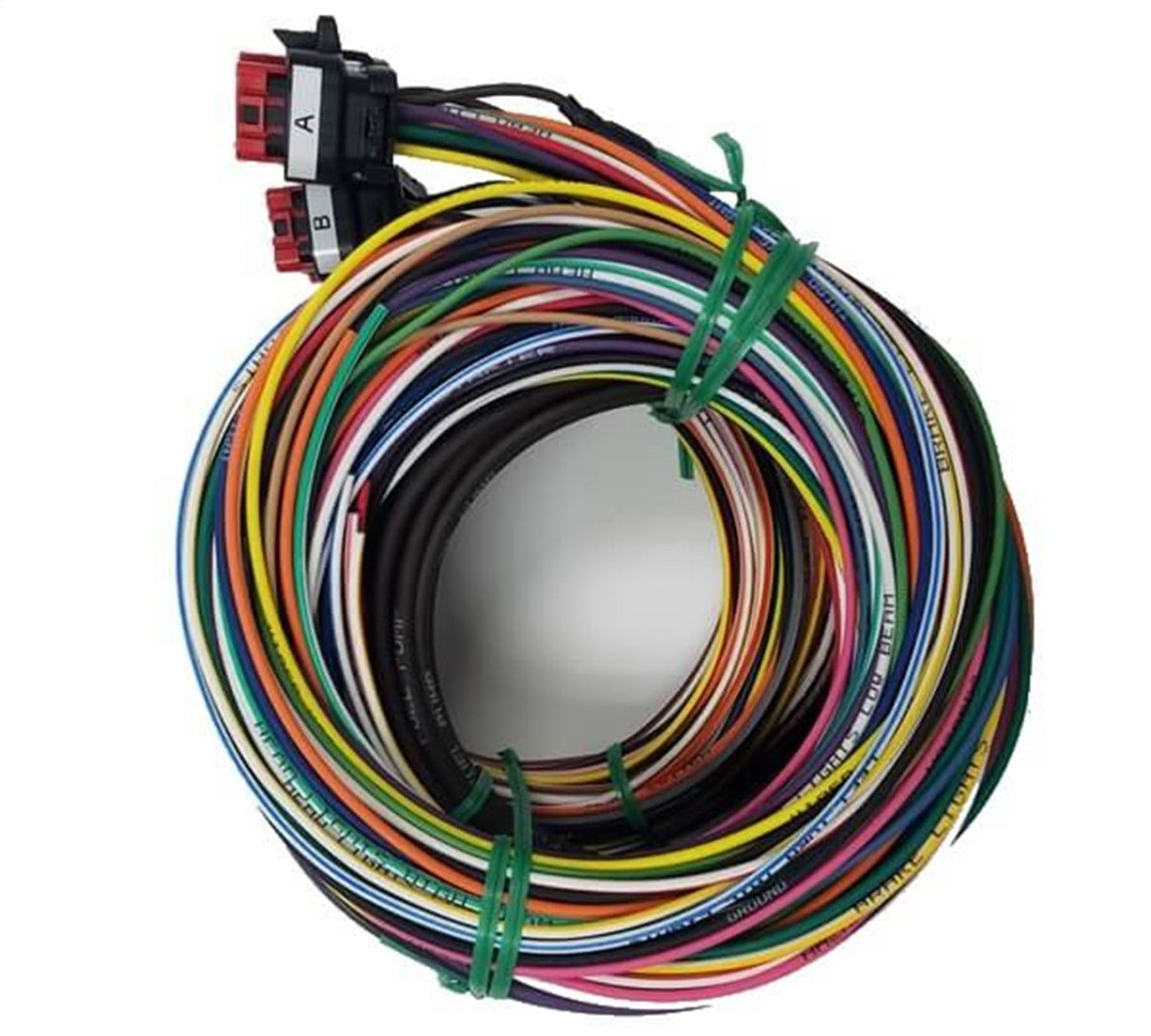

The Racepak Street SmartWire is the easiest way to wire any vehicle while adding modern electronic features and functions. It serves as the vehicle's power distribution center, and solid state design eliminates traditional fuse panels, breakers and relays, reducing wiring complexity and weight in the vehicle. Inputs and outputs are user-definable, enabling complete control of a vehicle's power needs and accessories. It also connects seamlessly to Racepak data recorders and display dashes. The Street SmartWire comes pre-programmed for basic road vehicle power functions. The box includes: Street SmartWireSwitch Module, labeled wiring harness, smartwire to switch module cable, USB programming cable and Racepak Datalink II software.
- The Easiest Way To Wire Any Vehicle
- Includes Street Smart Wire Switch Module / Harness / More Parts
- 8 Channels at 20 Amps Maximum for high amperage applications such as electric fuel pumps or starter solenoids.
- 22 Channels at 10 Amps Maximum for low amperage applications such as head lights, turn signals, or small cooling fans.
- 12 Hardwired Switched Inputs - Voltage triggered >2.7V or Ground Triggered <2.5V
- Data Output: Volts, Amps, Status (On/Off).
- Test Mode: This software integrated feature allows you to quickly determine if an input or output is working as intended.
- Response Time: 3.0 Miliseconds
- Programming: USB Cable with Free Datalink II Software
- Dimensions: 6 (L) x 5.5 (W) x 1.5 (H)

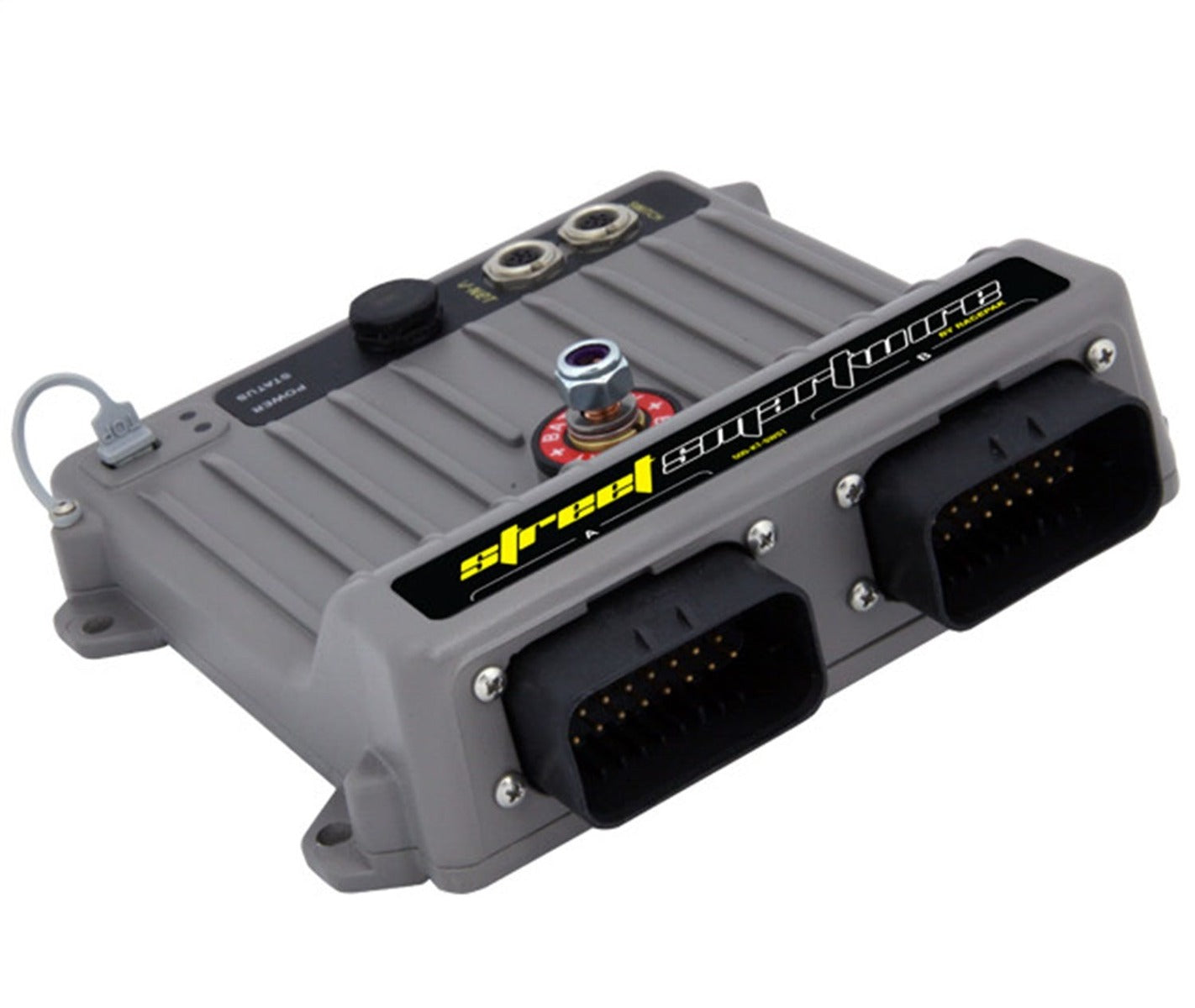

- Connectors: Two - 23 pin Ampseal, One 1/4 x 20 Main Power Stud, One mini USB (for programming), One Switch CAN bus (for optional switch panel or module), One V-Net CAN bus for optional V-net accessories, such as sensors).
- Serves As Vehicle Power Distribution Center
- Eliminates Traditional Fuse Panels / Breakers / Relays
- Reduces Wiring Complexity And Weight In The Vehicle
