IQ3 Logger Dash 4WD Puller Kit; Incl. IQ3 Data Logger Dash / USM / Harness / Memory Card / Throttle Position Sensor / GPS Antenna / Sensors / Cables / Software;

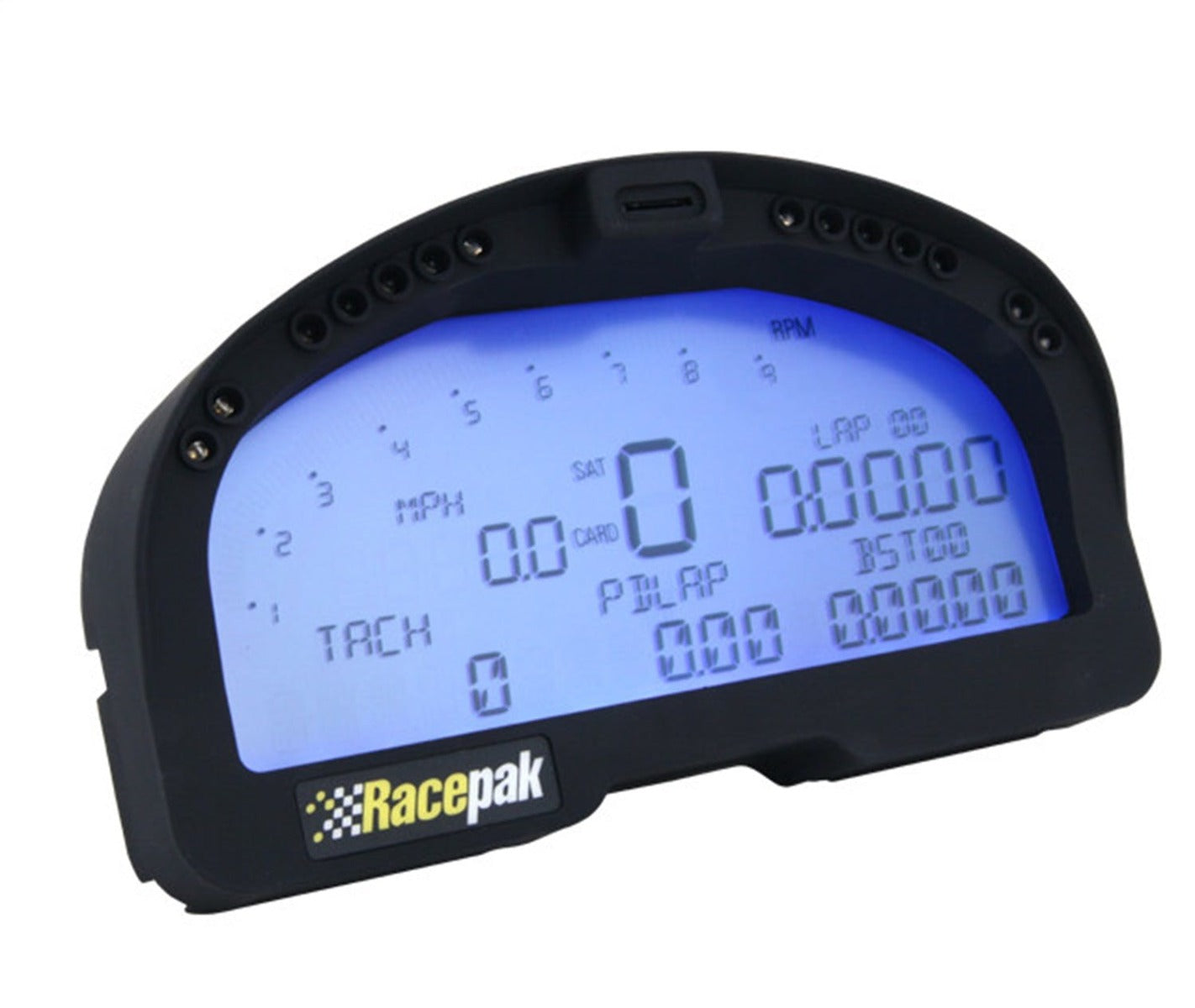

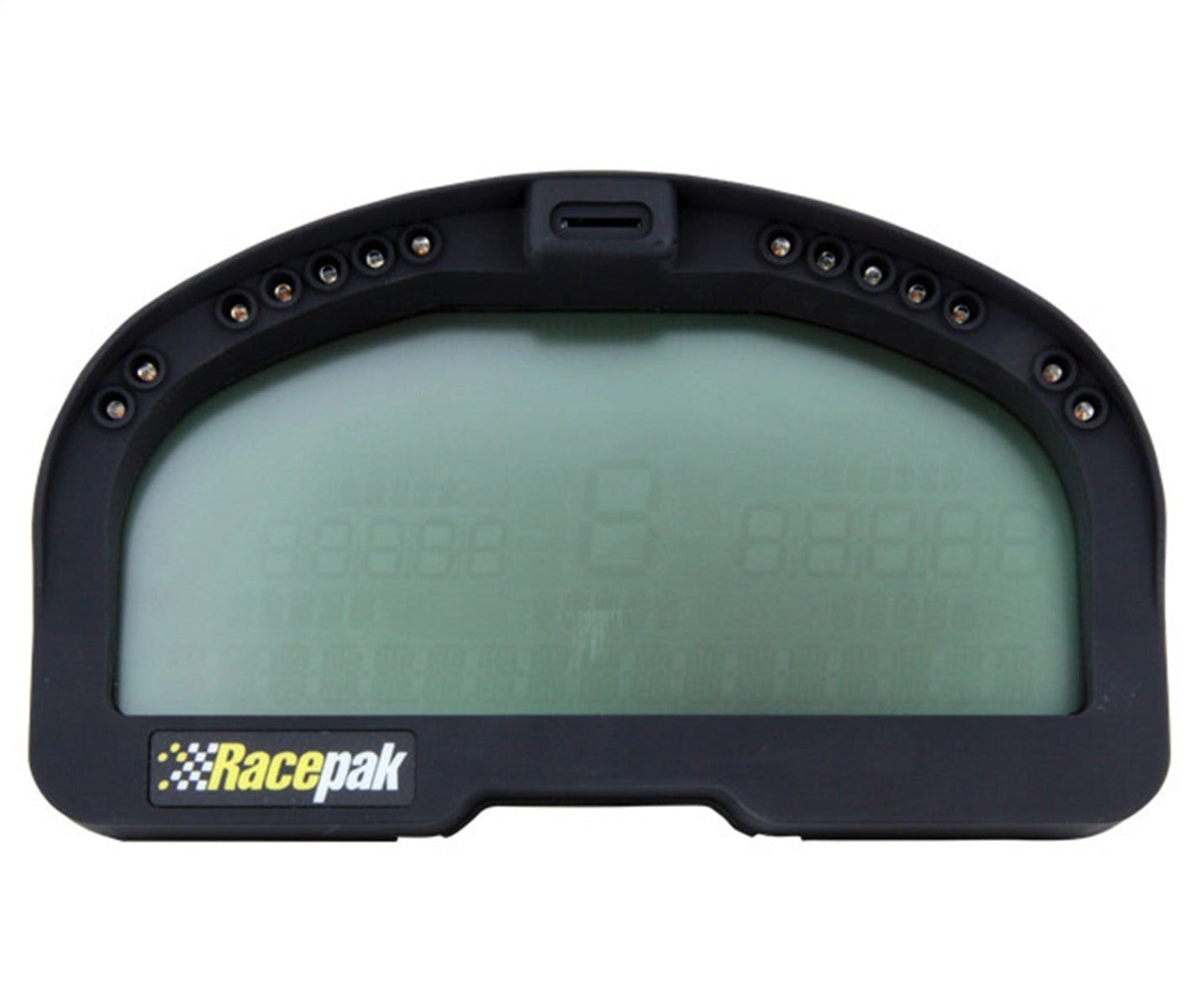

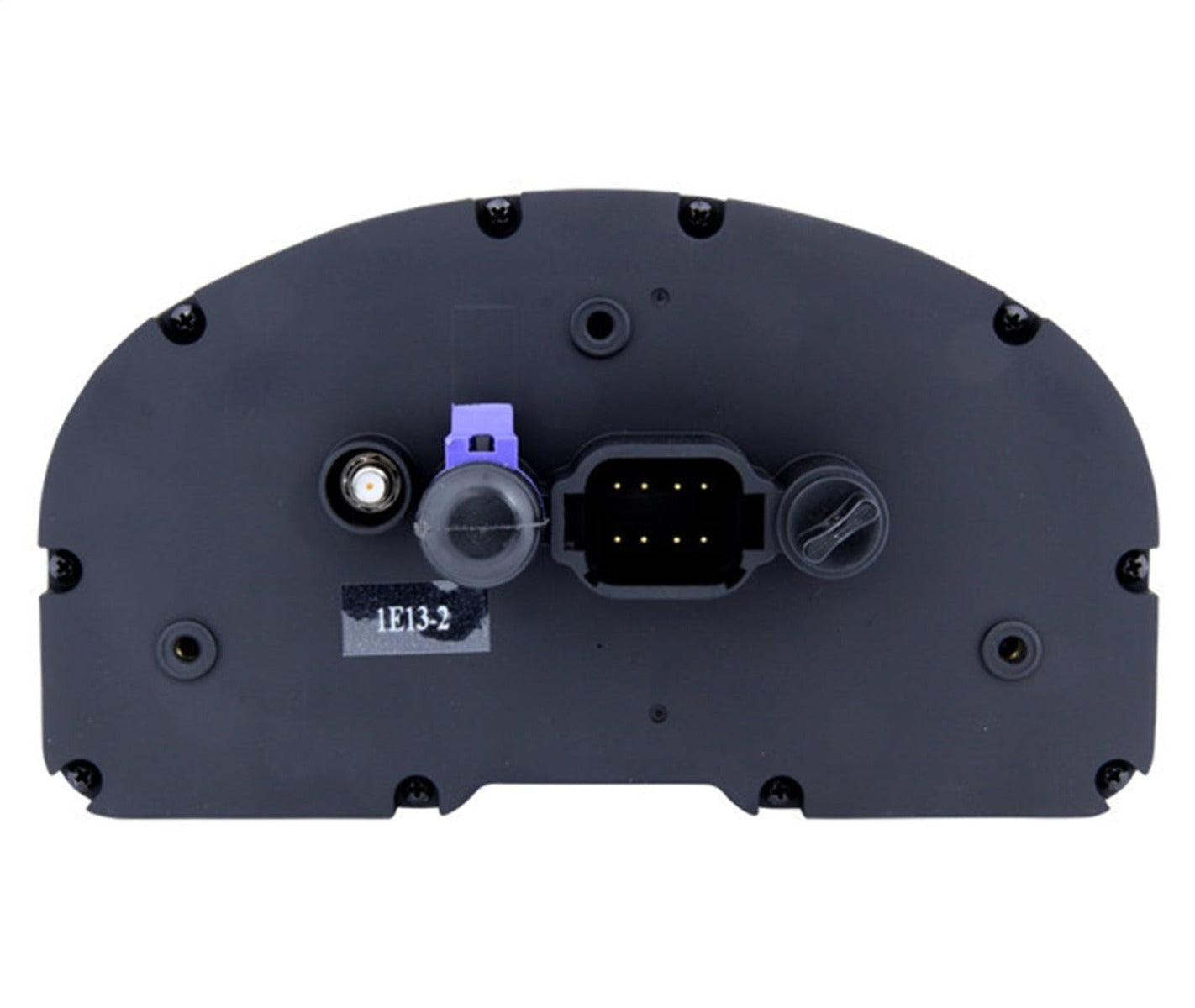

The IQ3 Logger Dash combines a 32 channel data logger with a complete display dash. This eliminates the need for an external data recorder and simplifies wiring complexity. The display features four user-definable pages of data with programmable shift and warning lights. Data is collected on a front-mounted MicroSD card for convenience. Internal GPS speed measurement eliminates the need for added wheel sensors. The 620-KT-IQ3LDPL4 edition Logger Dash is optimized for 4WD pulling vehicles. The box includes: IQ3 Data logger dash, universal sensor module, power/ground/engine RPM harness, 48 in. V-Net extension cable, 512mb microSD memory card, throttle position sensor, GPS antenna and cable, RPM sensors, programming cable and DatalinkII software and installation manual. Specifications: 32 total channels of data / 24 programmable sensor inputs on 4 pages / internal GPS / programmable shift and warning lights / gear indicator. Dimensions: 7.30 in. (W) x 4.10 in. (H) x 2.10 in. (D) (18.54 cm. x 10.41 cm. x 5.33 cm.) / 3 lb. (731.4 g)
- Combines 32 Channel Data Logger w/Complete Display Dash
- Features Four User-Definable Pages Of Data
- Features Programmable Shift And Warning Lights
- Eliminates The Need For Added Wheel Sensors
- Optimized For 4WD Pulling Vehicles
- Includes IQ3 Data Logger Dash / Sensor Module / More Parts
- 24 Programmable Sensor Inputs On 4 Pages
