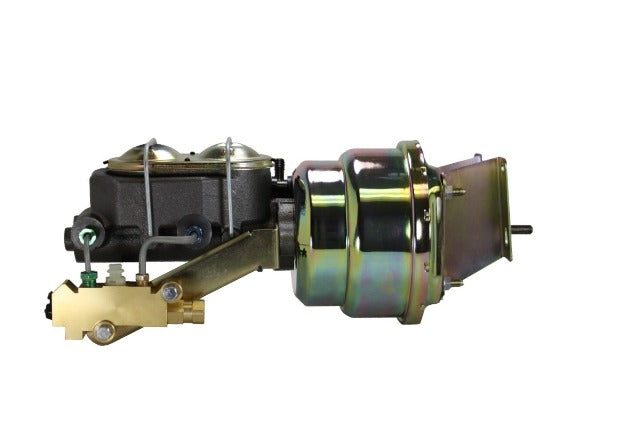

Leed Brakes power booster assemblies are shipped fully assembled. This insures proper adjustment of the pushrod between the power booster and master cylinder and proper fitment all valves, lines and brackets for a trouble-free installation.

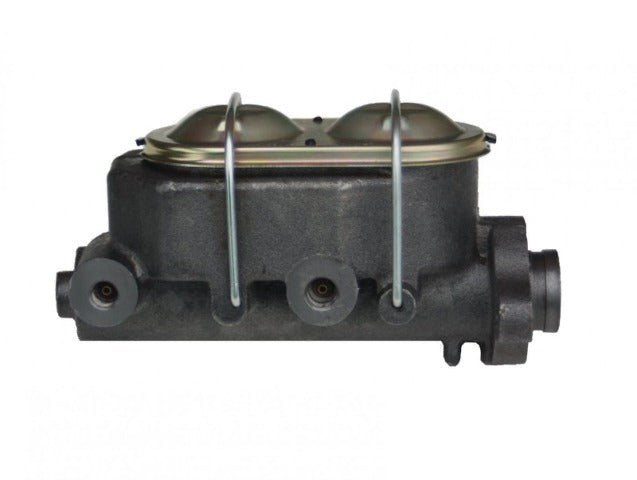

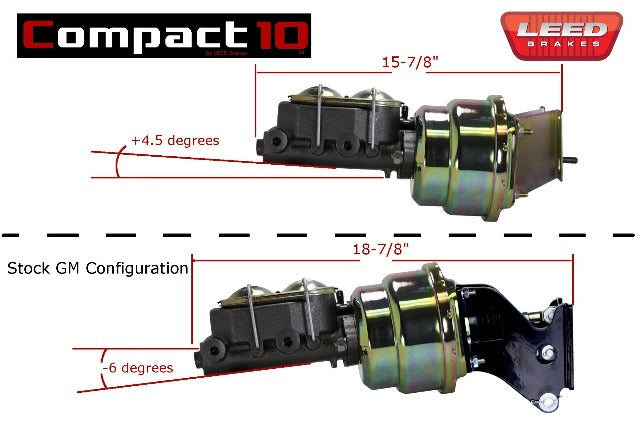

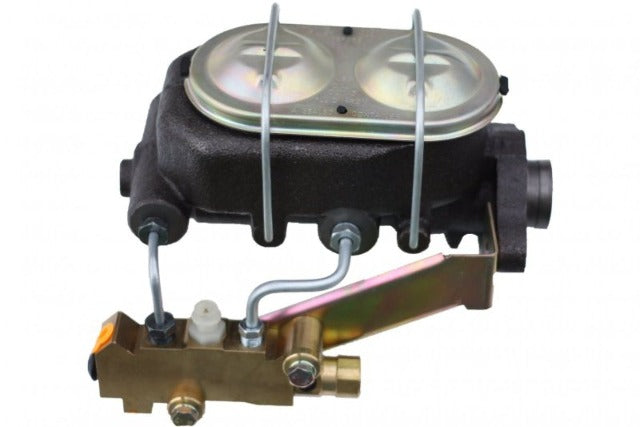

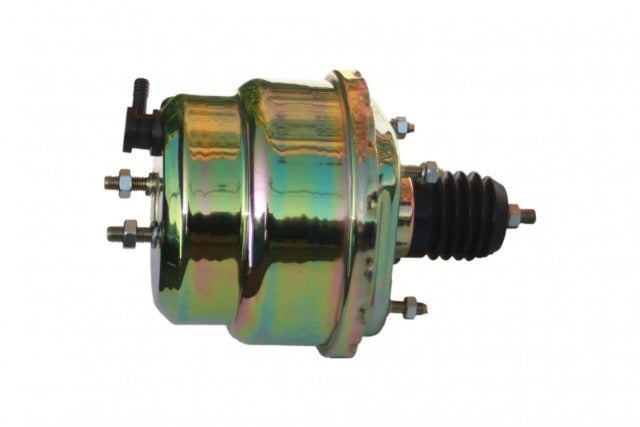

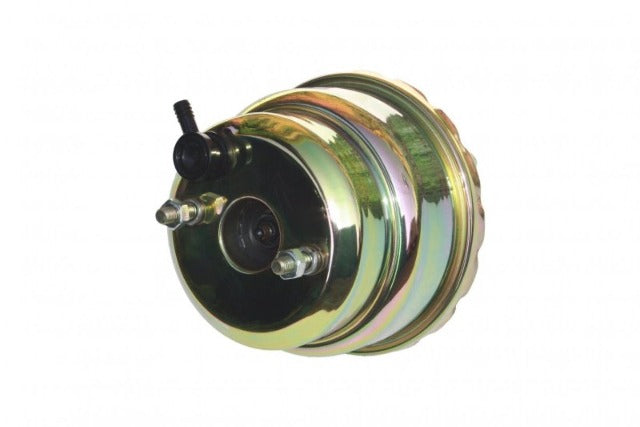

Compact-10 Series 7" Dual Diaphragm zinc plated power brake booster. This 7" GM truck brake booster is hand polished before a zinc finish is applied for a top quality finish. The 1-1/8in Bore master cylinder and proportioning valve is ideal for most disc/drum brake applications.The Compact-10 mounting bracket and push rod assembly is a direct fit to your factory firewall. The Compact-10 series boosters are designed to mount closer to the firewall at a more natural angle than a factory style booster. This type of mount gives you the look & brake performance you want out of your truck. The included proportioning valve is for disc/drum applications.
Application Summary:
| Year |
Make/Model |
| 1969-1972 |
Chevrolet Blazer |
| 1967 |
Chevrolet C10 Panel |
| 1967-1972 |
Chevrolet C10 Pickup |
| 1967-1972 |
Chevrolet C10 Suburban |
| 1967-1972 |
Chevrolet K10 Pickup |
| 1967-1972 |
Chevrolet K10 Suburban |
| 1967-1972 |
GMC C15/C1500 Pickup |
| 1968-1972 |
GMC C15/C1500 Suburban |
| 1970-1972 |
GMC Jimmy |
| 1967-1972 |
GMC K15/K1500 Pickup |
| 1967-1972 |
GMC K15/K1500 Suburban |
