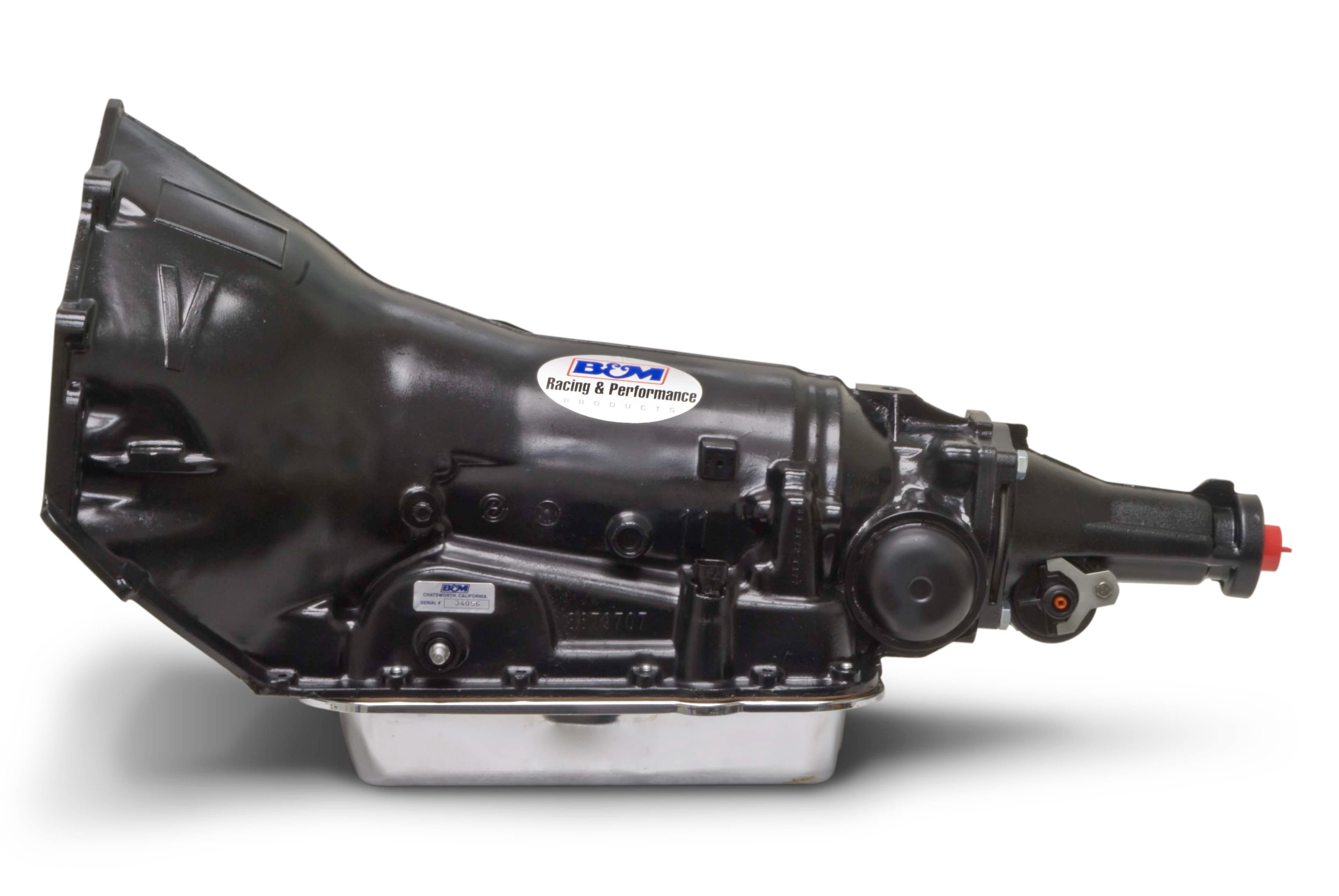

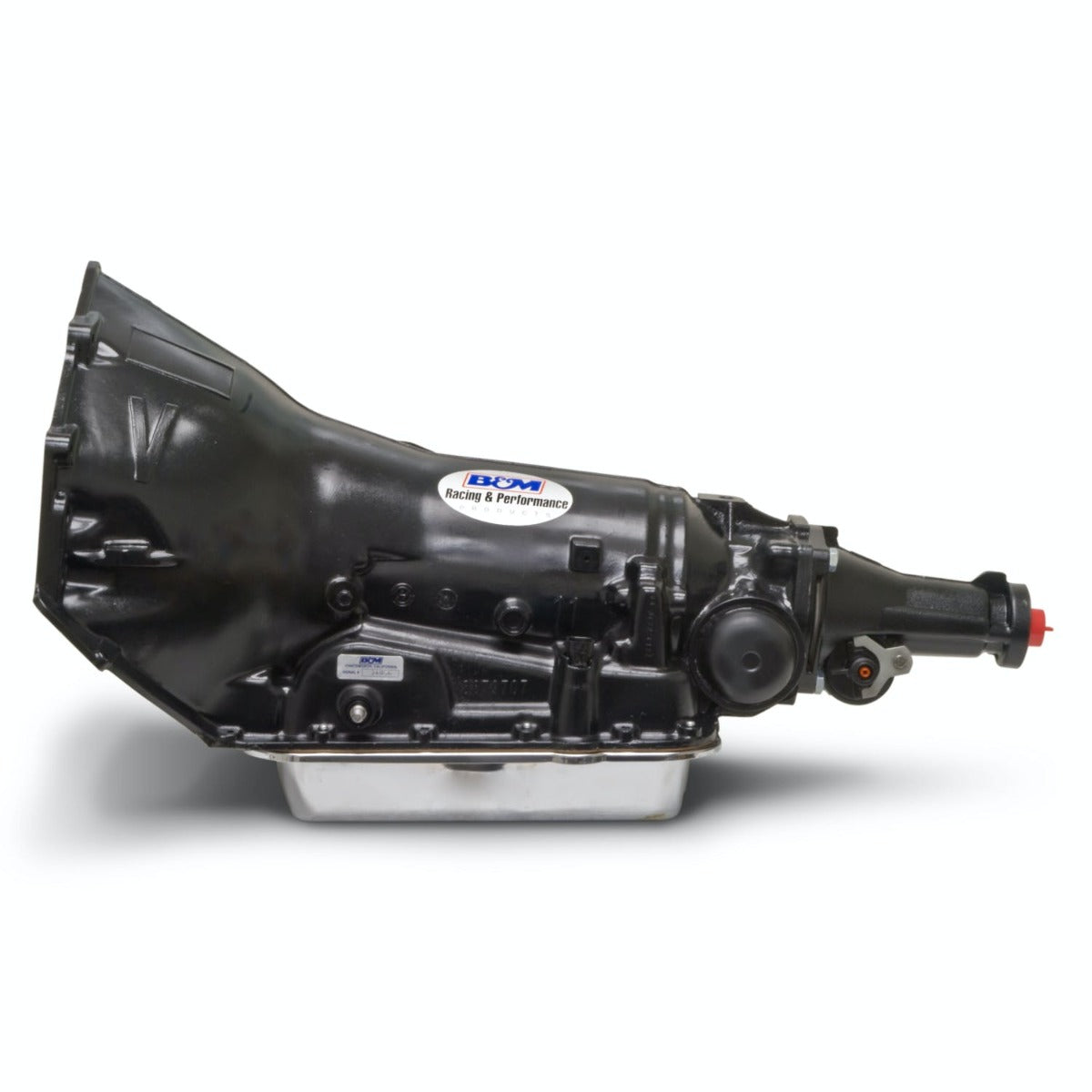

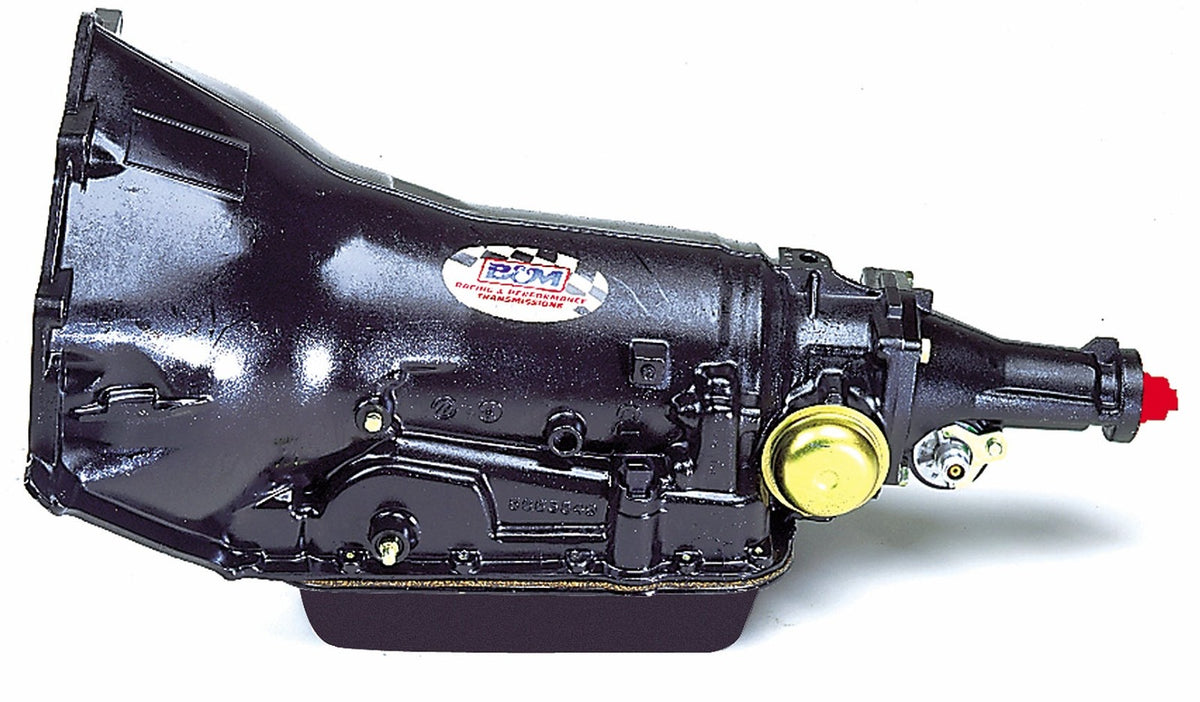

B&M 117101 STRT TRANS TH700R4 CHV WITH MECH SP

Street/Strip Transmission; Max 500 HP/450 ft./lbs. Torque; Incl. Intermediate/Low Roller Clutches;

---

Legendary B&M transmission for street use. B&M's Street Strip transmission is a complete ready to run unit (less converter) for high performance street and mild strip use. The transmission provides firm shifts and features a standard shift pattern, these are the finest available for street and strip use. Fits 1984 or later GM (except Corvette and 60 degree V6) with a 30 tooth spline converter and has a mechanical type speedometer connection. Suitable for use behind engines producing up to 450 lb.ft. of torque. Won't replace 4L60E applications (post 1993). Includes a Corvette 2-4 servo assembly, recalibrated valve body, new overdrive sprag assembly, new external electric connector, rebuilt front pump and governor with new gear, all new B&M high performance friction plates, new thrust washer kit, races, thrust bearings bushings and 2-4 band, high performance reaction carrier assembly, heavy duty sunshell and improved lubrication on sun gear. Max 500 HP / 450 Ft/Lbs.

• 4 Speed GM Transmission
• Rebuilt Front Pump and Governor
• New Thrust Washer Kit
• High Perf. Friction Plates
• Overdrive Sprag Assembly
• Reaction Carrier Assembly
• External Electric Connector
• Fully Recalibrated Valve Body

---

Application Summary:

Year	Make/Model
1988	Buick Electra
1988	Buick LeSabre
1985-1992	Chevrolet Astro
1987-1989	Chevrolet Blazer
1984-1986	Chevrolet C10
1984-1986	Chevrolet C10 Suburban
1988-1992	Chevrolet C1500
1992	Chevrolet C1500 Suburban
1984-1986	Chevrolet C20
1984-1986	Chevrolet C20 Suburban
1988-1992	Chevrolet C2500
1992	Chevrolet C2500 Suburban
1984-1986	Chevrolet C30
1988-1989	Chevrolet C3500
1984-1993	Chevrolet Camaro
1984-1993	Chevrolet Caprice
1984-1987	Chevrolet El Camino
1984-1992	Chevrolet G10
1984-1992	Chevrolet G20
1984-1992	Chevrolet G30
1984-1985	Chevrolet Impala
1984	Chevrolet K5 Blazer
1984-1988	Chevrolet Monte Carlo
1987	Chevrolet R10
1987-1988	Chevrolet R10 Suburban
1989-1991	Chevrolet R1500 Suburban
1987-1988	Chevrolet R20
1987-1988	Chevrolet R20 Suburban
1989	Chevrolet R2500
1989-1991	Chevrolet R2500 Suburban
1987-1988	Chevrolet R30
1989-1991	Chevrolet R3500
1984-1993	Chevrolet S10
1984-1991	Chevrolet S10 Blazer
1991	Chevrolet V1500 Suburban
1984-1986	GMC C1500
1988-1991	GMC C1500
1984-1986	GMC C1500 Suburban
1984-1986	GMC C2500
1988-1991	GMC C2500
1984-1986	GMC C2500 Suburban
1992	GMC C2500 Suburban
1984-1986	GMC C3500
1988-1991	GMC C3500
1984-1987	GMC Caballero
1984-1991	GMC G1500
1984-1991	GMC G2500
1984-1991	GMC G3500
1984-1991	GMC Jimmy
1987	GMC R1500
1987-1991	GMC R1500 Suburban
1987-1989	GMC R2500
1987-1991	GMC R2500 Suburban
1987-1991	GMC R3500
1984-1990	GMC S15
1984-1988	GMC S15 Jimmy
1991	GMC V1500 Suburban
1988	Oldsmobile Custom Cruiser
1984	Oldsmobile Cutlass Calais
1984	Oldsmobile Cutlass Supreme
1988	Oldsmobile Cutlass Supreme
1984-1986	Pontiac Bonneville
1989-1991	Pontiac Firebird
1984-1986	Pontiac Grand Prix
1984-1986	Pontiac Parisienne
1988	Pontiac Safari

---
