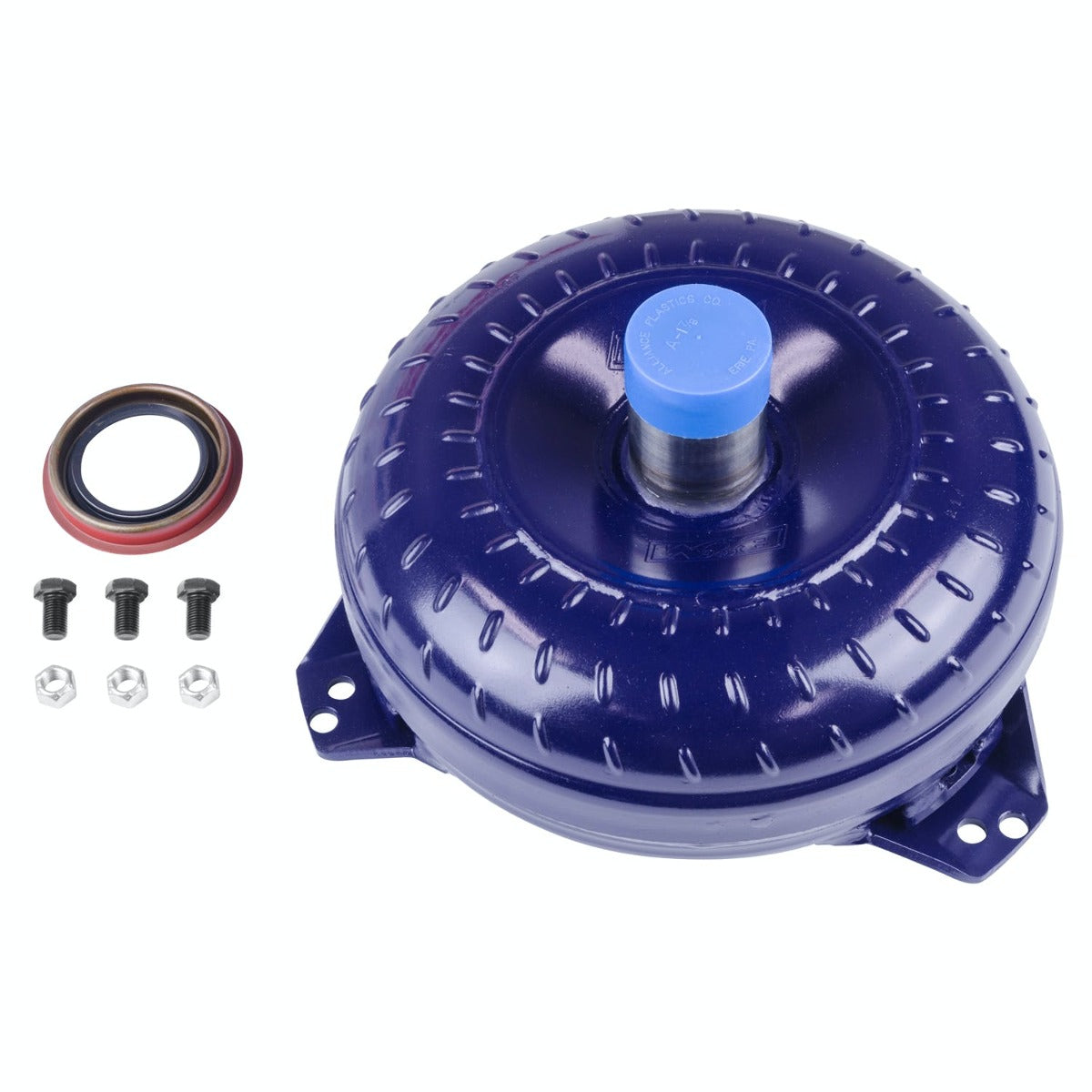

B&M 20484 CNVRTR, TH350, NITROUS HOLESHOT 3500

Nitrous Holeshot 3500 Torque Converter; 3200 - 3500 RPM Stall; 1.71 in. Crank Stall;

---

B&M Nitrous HoleShot 3500 stall for GM 1965 to 1991 TH400, TH425, TH375 and 1968 to 1981 TH350, TH375B (not TH350C.) The Nitrous Holeshot 3500 stall converter are an excellent choice for vehicles with many engine modifications, particularly big cams that tend to reduce low end power and torque. The higher stall speed of this converter will launch the car in a higher rpm range where more torque is readily available, resulting in quicker acceleration. Nitrous Holeshot converters feature furnace brazed impeller and turbine, new precision steel alloy pump drive tube, new heavy duty needle bearings between the stator and impeller (not a thrust washer) and needle bearings between the stator and turbine. Other features include 10.75 and 11.50 inch dual pattern drive lugs, a new turbine hub, new springs and rollers in the stator and anti-balloon plates. The anti-balloon plates will allow these converters to stand up to the instant horsepower a nitrous plate system delivers. Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated.

• Furnace Brazed Impeller
• Steel Alloy Pump Drive Tube
• Heavy Duty Needle Bearing
• Between Stator and Turbine
• Furnace Brazed Turbine
• New Turbine Hub
• New Springs/Rollers In Stator

---

Application Summary:

Year	Make/Model
1973-1975	Buick Apollo
1971-1973	Buick Centurion
1973-1981	Buick Century
1965-1967	Buick Electra
1969-1981	Buick Electra
1970-1981	Buick Estate Wagon
1965-1967	Buick Gran Sport
1970-1972	Buick GS
1965-1981	Buick LeSabre
1973-1981	Buick Regal
1965-1978	Buick Riviera
1975-1980	Buick Skyhawk
1965-1967	Buick Skylark
1969-1972	Buick Skylark
1975-1979	Buick Skylark
1965-1967	Buick Special
1969	Buick Special
1966-1972	Buick Sportwagon
1965-1969	Buick Wildcat
1987-1990	Cadillac Brougham
1965-1976	Cadillac Calais
1965-1983	Cadillac Commercial Chassis
1965-1981	Cadillac DeVille
1965-1979	Cadillac Eldorado
1965-1984	Cadillac Fleetwood
1976-1978	Cadillac Seville
1965-1975	Chevrolet Bel Air
1965-1972	Chevrolet Biscayne
1969-1974	Chevrolet Blazer
1987-1990	Chevrolet Blazer
1969	Chevrolet Brookwood
1972	Chevrolet Brookwood
1975-1986	Chevrolet C10
1967-1984	Chevrolet C10 Suburban
1988-1990	Chevrolet C1500
1975-1986	Chevrolet C20
1967-1986	Chevrolet C20 Suburban
1988-1991	Chevrolet C2500
1975-1986	Chevrolet C30
1988-1990	Chevrolet C3500
1967-1981	Chevrolet Camaro
1966-1980	Chevrolet Caprice
1965-1968	Chevrolet Chevelle
1970-1972	Chevrolet Chevelle
1966-1967	Chevrolet Chevy II
1967-1980	Chevrolet Corvette
1965-1980	Chevrolet El Camino
1975-1990	Chevrolet G10
1969-1974	Chevrolet G10 Van
1975-1990	Chevrolet G20
1969-1974	Chevrolet G20 Van
1975-1990	Chevrolet G30
1970-1974	Chevrolet G30 Van
1965-1980	Chevrolet Impala
1975-1986	Chevrolet K10
1967-1984	Chevrolet K10 Suburban
1988-1990	Chevrolet K1500
1975-1986	Chevrolet K20
1967-1986	Chevrolet K20 Suburban
1988-1991	Chevrolet K2500
1977-1986	Chevrolet K30
1988-1990	Chevrolet K3500
1975-1986	Chevrolet K5 Blazer
1969-1972	Chevrolet Kingswood
1975-1976	Chevrolet Laguna
1973-1980	Chevrolet Malibu
1970-1980	Chevrolet Monte Carlo
1975-1980	Chevrolet Monza
1969-1978	Chevrolet Nova
1975-1980	Chevrolet P10
1965-1967	Chevrolet P10 Series
1969-1974	Chevrolet P10 Van

---
