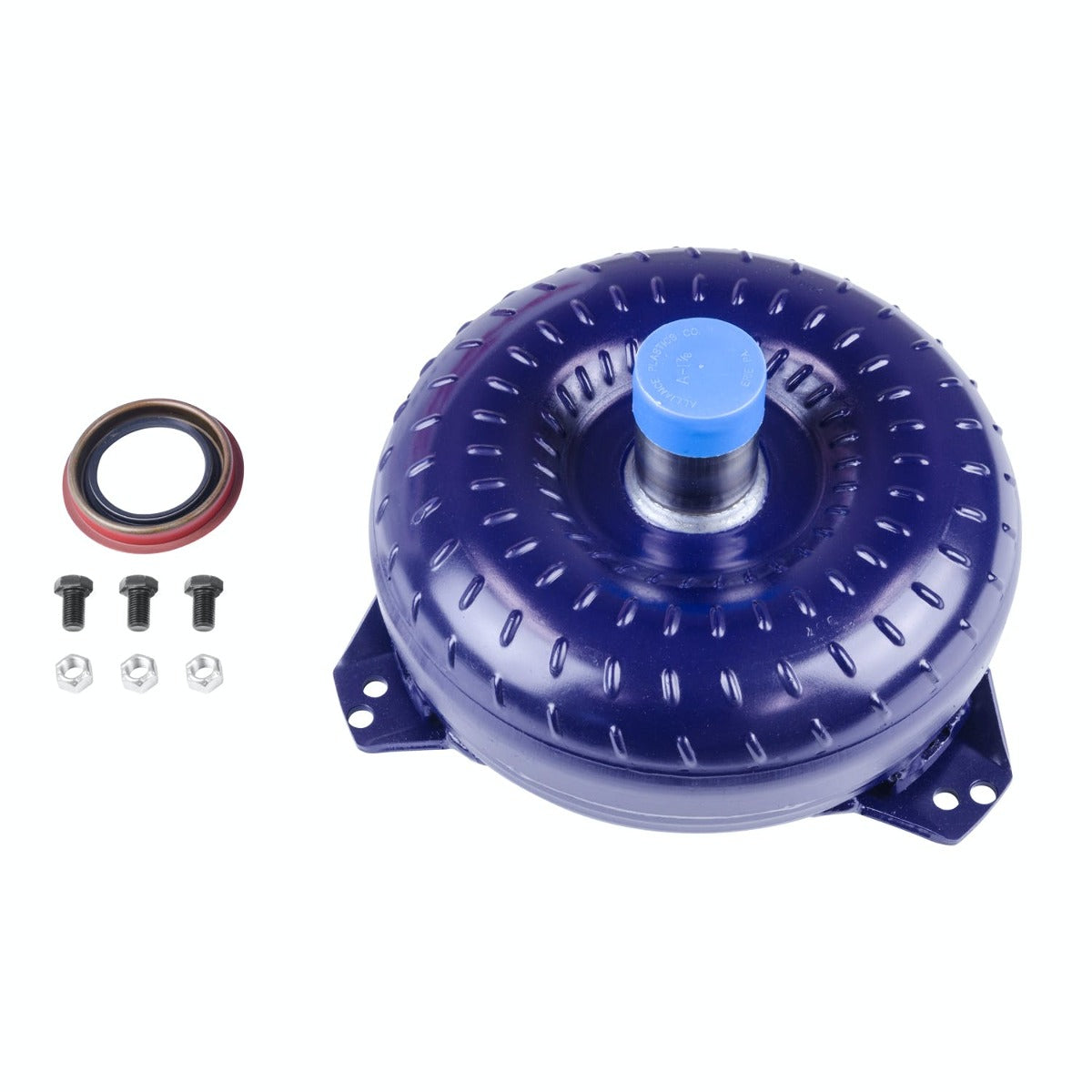

B&M 70444 CNVRTR, TH700R4, HOLESHOT 3500

Holeshot 3500 Torque Converter; 3200 - 3500 RPM Stall; 1.71 in. Crank Stall;

---

B&M HoleShot 3500 stall converter for GM TH700R4 transmissions and are an excellent choice for vehicles with engine modifications, particularly big cams that tend to reduce low end power and torque. The higher stall speed of this converter will launch the car in a higher rpm range where more torque is readily available, resulting in quicker acceleration. Holeshot converters feature furnace brazed impeller and turbine, new precision steel alloy pump drive tube, new heavy duty needle bearings between the stator and impeller (not a thrust washer) and needle bearings between the stator and turbine. Other features include dual pattern 10.75 and 11.50 inch drive lugs, a new turbine hub and new springs and rollers in the stator. If your vehicle is equipped with a plate type nitrous system, please refer to the Nitrous Holeshot line of converters. Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated.

• Furnace Brazed Impeller
• Steel Alloy Pump Drive Tube
• Heavy Duty Needle Bearing
• Between Stator and Turbine
• Furnace Brazed Turbine
• New Turbine Hub
• New Springs/Rollers In Stator

---

Application Summary:

Year	Make/Model
1991-1993	Buick Commercial Chassis
1988	Buick LeSabre
1984	Buick Regal
1991-1993	Buick Roadmaster
1990-1992	Cadillac Brougham
1992-1993	Cadillac Commercial Chassis
1993	Cadillac Fleetwood
1985-1992	Chevrolet Astro
1987-1993	Chevrolet Blazer
1984-1986	Chevrolet C10
1984-1986	Chevrolet C10 Suburban
1988-1992	Chevrolet C1500
1992	Chevrolet C1500 Suburban
1984-1986	Chevrolet C20
1984-1986	Chevrolet C20 Suburban
1988-1992	Chevrolet C2500
1992	Chevrolet C2500 Suburban
1984-1986	Chevrolet C30
1988-1990	Chevrolet C3500
1984-1993	Chevrolet Camaro
1984-1993	Chevrolet Caprice
1984-1993	Chevrolet Corvette
1984-1987	Chevrolet El Camino
1984-1992	Chevrolet G10
1984-1992	Chevrolet G20
1984-1992	Chevrolet G30
1984-1985	Chevrolet Impala
1984-1986	Chevrolet K10
1984-1986	Chevrolet K10 Suburban
1988-1992	Chevrolet K1500
1992	Chevrolet K1500 Suburban
1984-1986	Chevrolet K20
1984-1986	Chevrolet K20 Suburban
1988-1992	Chevrolet K2500
1992	Chevrolet K2500 Suburban
1984-1986	Chevrolet K30
1988-1989	Chevrolet K3500
1984-1986	Chevrolet K5 Blazer
1984-1988	Chevrolet Monte Carlo
1987	Chevrolet R10
1987-1988	Chevrolet R10 Suburban
1989-1991	Chevrolet R1500 Suburban
1987-1988	Chevrolet R20
1987-1988	Chevrolet R20 Suburban
1989	Chevrolet R2500
1989-1991	Chevrolet R2500 Suburban
1987-1988	Chevrolet R30
1989-1991	Chevrolet R3500
1984-1993	Chevrolet S10
1984-1992	Chevrolet S10 Blazer
1987	Chevrolet V10
1987-1988	Chevrolet V10 Suburban
1989-1991	Chevrolet V1500 Suburban
1987	Chevrolet V20
1987-1988	Chevrolet V20 Suburban
1989-1991	Chevrolet V2500 Suburban
1987-1988	Chevrolet V30
1989-1991	Chevrolet V3500
1984-1986	GMC C1500
1988-1992	GMC C1500
1984-1986	GMC C1500 Suburban
1992	GMC C1500 Suburban
1984-1986	GMC C2500
1988-1992	GMC C2500
1984-1986	GMC C2500 Suburban
1992	GMC C2500 Suburban
1984-1986	GMC C3500
1988-1991	GMC C3500
1984-1987	GMC Caballero
1984-1992	GMC G1500
1984-1992	GMC G2500
1984-1992	GMC G3500

---
