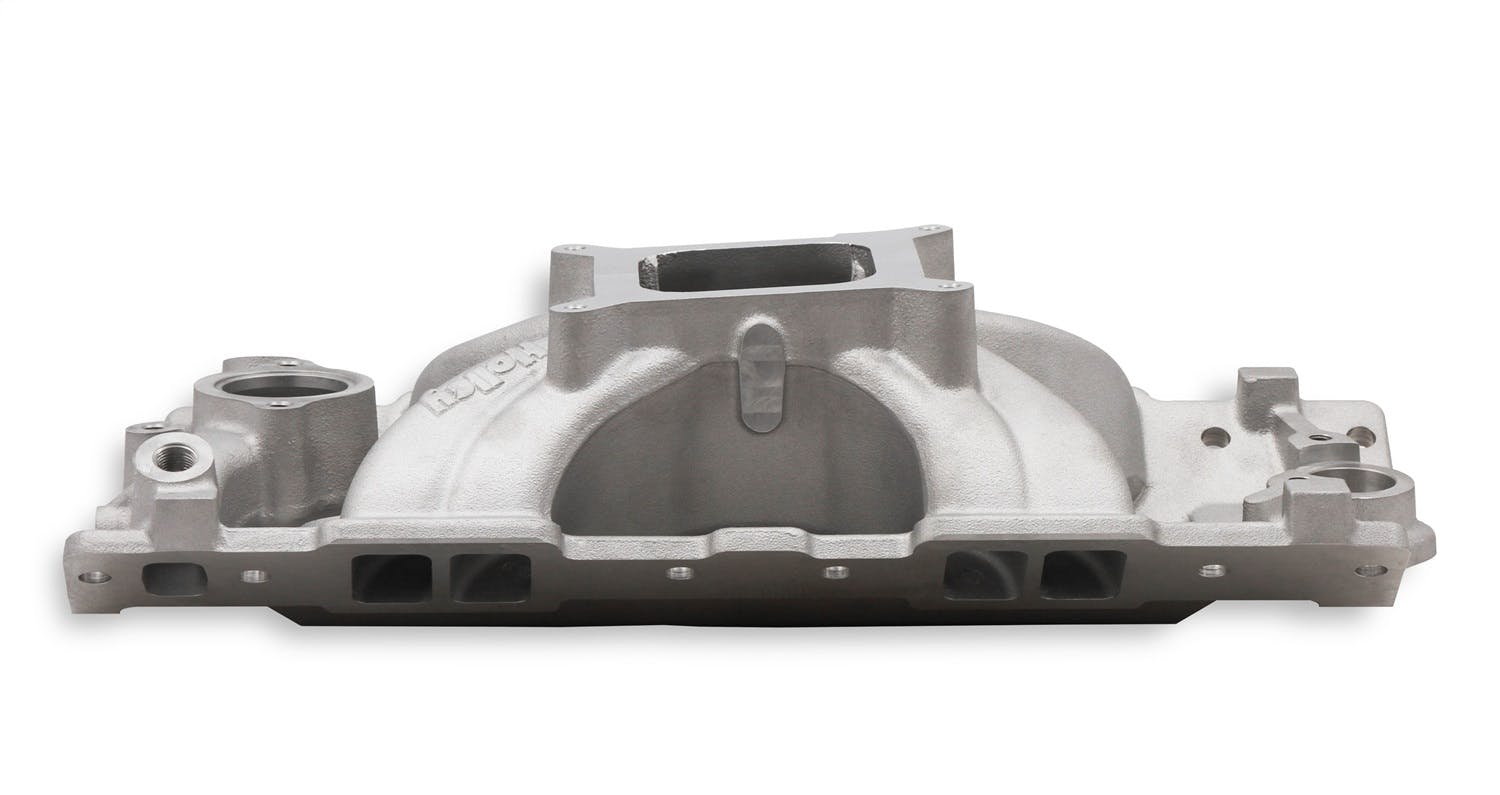

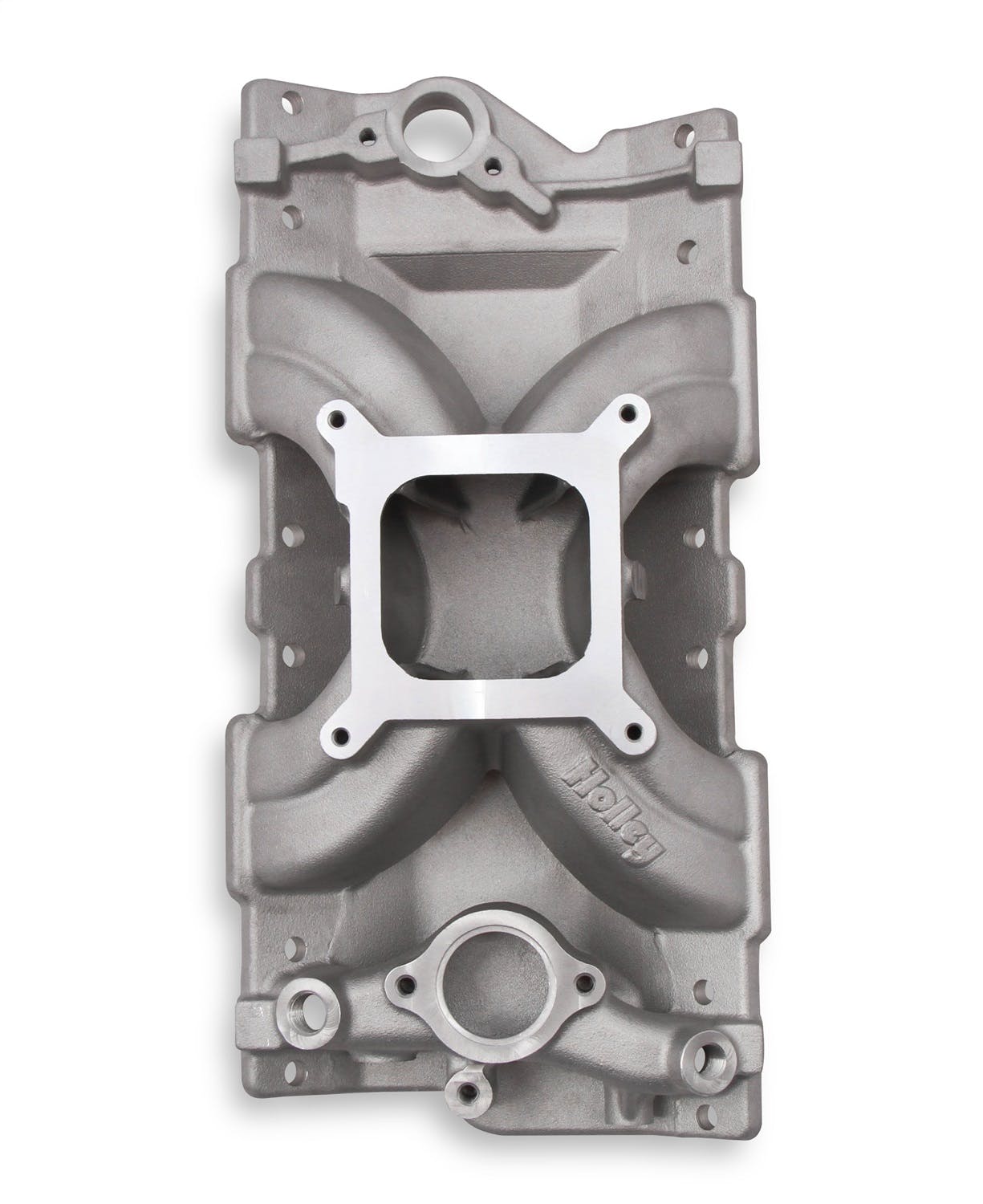

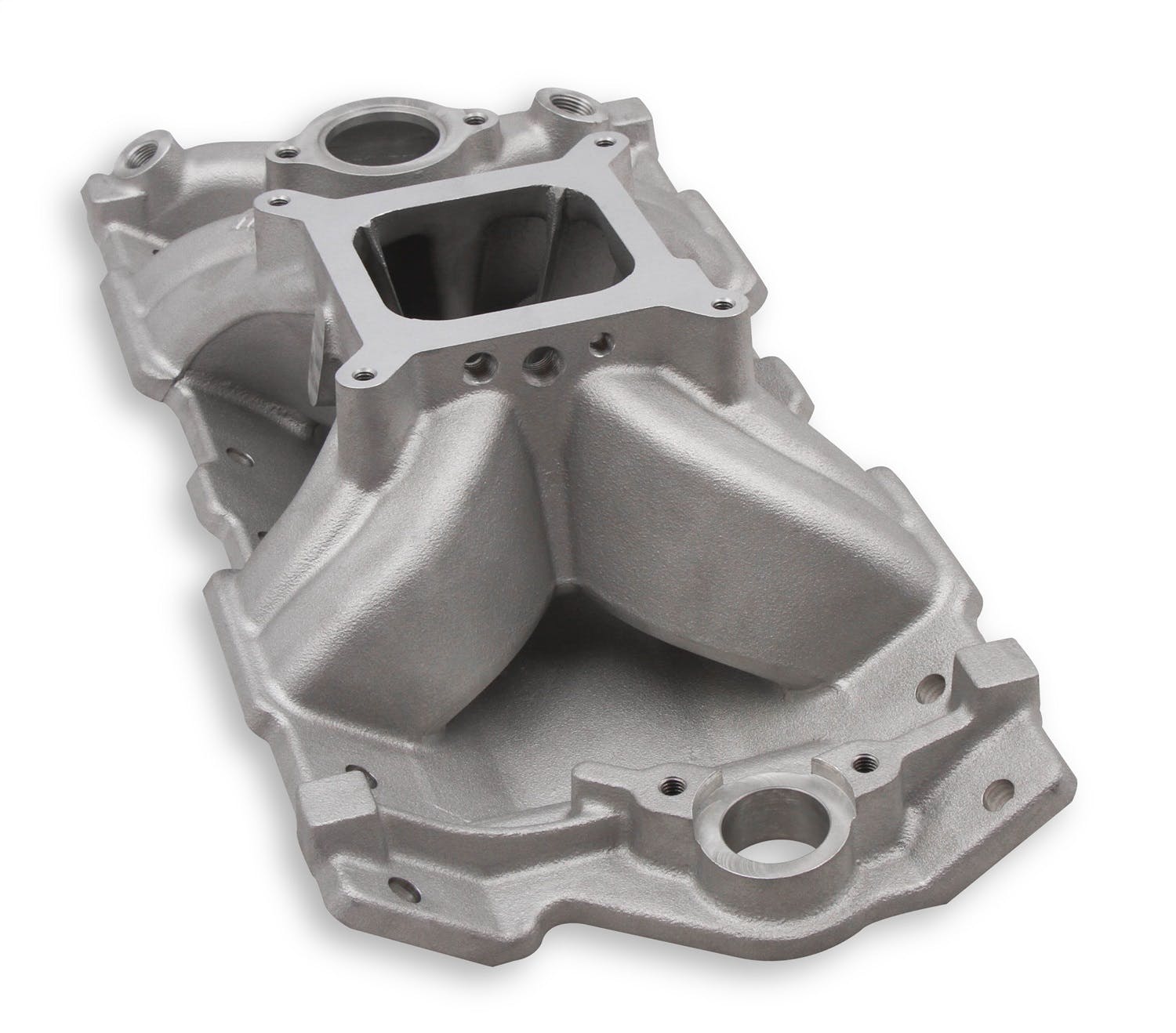

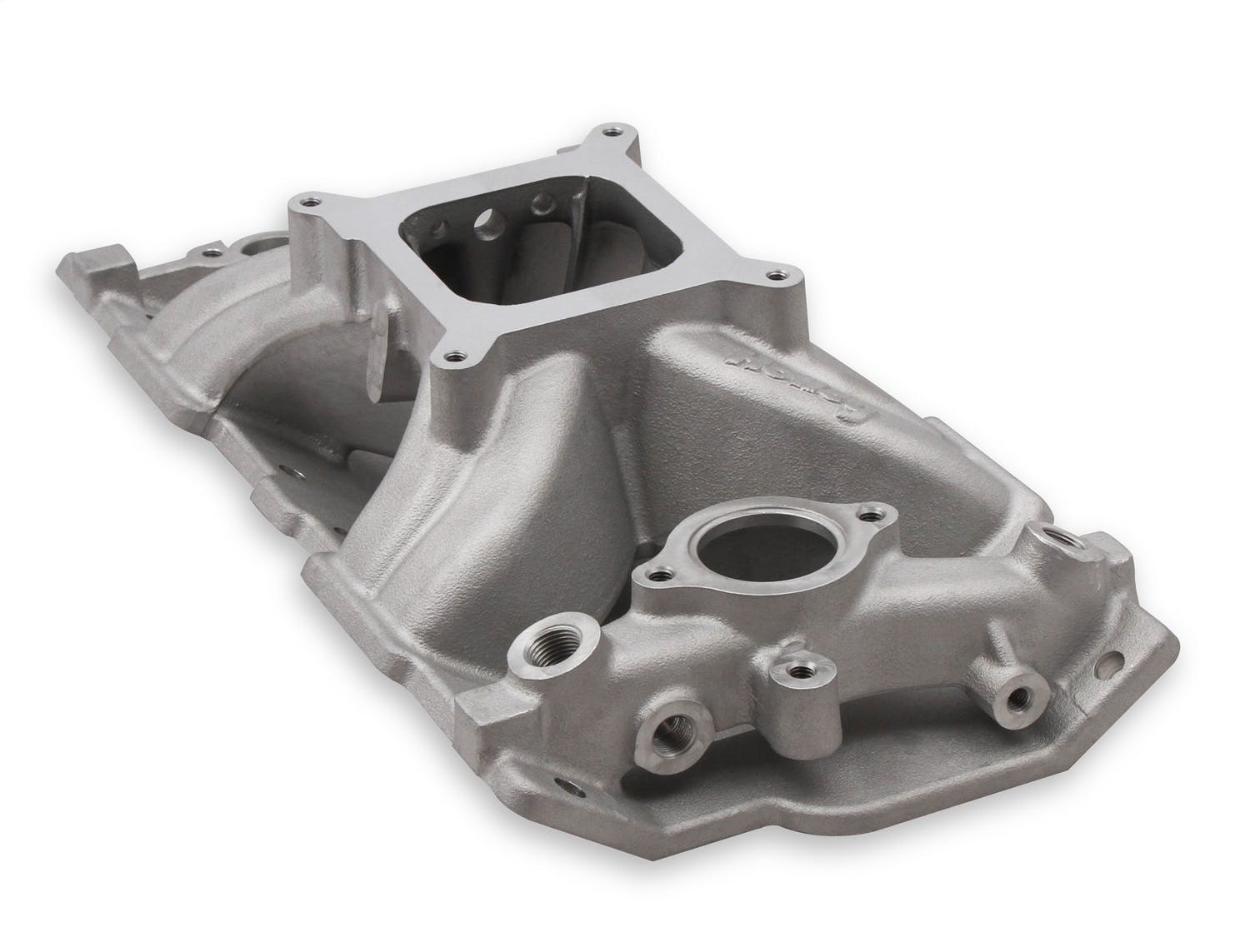

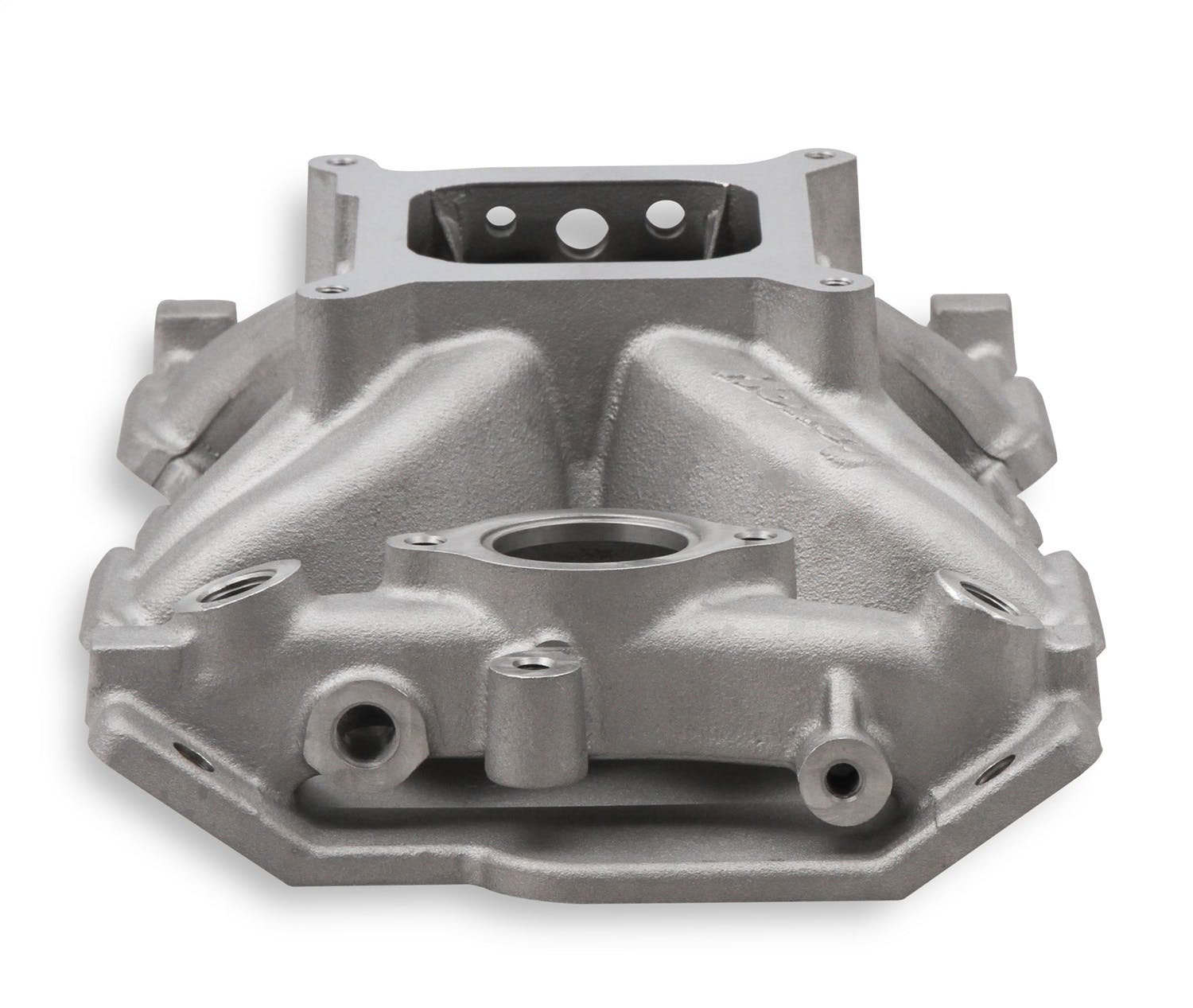

Holley 300-261 SBC CARB SINGLE PLANE INTAKE MANIFLD KIT

Single Plane Intake Manifold Kit; Upper; Square Bore Carb Mounting Flange; 2500-7500 RPM; Front 4.18 in./Rear 5.28 in. Height; 1.92 in. H/1.20 in. Wi Port Size;

---

The new single plane intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carburetor-mounting pad is designed to accept all stock or aftermarket square-bore carburetors with manual or electric chokes. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1 shorter height than the 300-25 manifold, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The 300-261 intake manifolds are designed for square-bore carburetor applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations.

• Single Plane With Isolated Plenum
• Square Bore Carburetor Mounting Flange
• Isolated Water Cross-Over
• Power Band 2500-7500 RPM

---

Application Summary:

Year	Make/Model
1965-1974	Avanti II
1976-1985	Avanti II
1977-1981	Buick Century
1978	Buick LeSabre
1982	Buick LeSabre
1977-1986	Buick Regal
1977-1979	Buick Skylark
1966-1974	Checker Aerobus
1969-1970	Checker Deluxe
1965-1982	Checker Marathon
1969-1974	Checker Taxicab
1959	Chevrolet 3B
1959	Chevrolet 3C
1959	Chevrolet 3D
1959	Chevrolet 3E
1959	Chevrolet 3F
1959	Chevrolet 3G
1955-1975	Chevrolet Bel Air
1981	Chevrolet Bel Air
1958-1972	Chevrolet Biscayne
1969-1974	Chevrolet Blazer
1958-1961	Chevrolet Brookwood
1969-1972	Chevrolet Brookwood
1975-1986	Chevrolet C10
1960-1974	Chevrolet C10 Pickup
1967-1986	Chevrolet C10 Suburban
1975-1986	Chevrolet C20
1960-1974	Chevrolet C20 Pickup
1967-1986	Chevrolet C20 Suburban
1975-1986	Chevrolet C30
1960-1974	Chevrolet C30 Pickup
1960-1962	Chevrolet C40
1967-1986	Chevrolet Camaro
1966-1986	Chevrolet Caprice
1964-1973	Chevrolet Chevelle
1963-1968	Chevrolet Chevy II
1955-1982	Chevrolet Corvette
1984-1986	Chevrolet Corvette
1957-1958	Chevrolet Del Ray
1959-1960	Chevrolet El Camino
1964-1986	Chevrolet El Camino
1969-1970	Chevrolet Estate
1975-1986	Chevrolet G10
1968-1974	Chevrolet G10 Van
1975-1986	Chevrolet G20
1967-1974	Chevrolet G20 Van
1975-1986	Chevrolet G30
1970-1974	Chevrolet G30 Van
1958-1985	Chevrolet Impala
1975-1986	Chevrolet K10
1960-1974	Chevrolet K10 Pickup
1967-1986	Chevrolet K10 Suburban
1975-1986	Chevrolet K20
1967	Chevrolet K20 Panel
1960-1974	Chevrolet K20 Pickup
1967-1986	Chevrolet K20 Suburban
1977-1986	Chevrolet K30
1968-1974	Chevrolet K30 Pickup
1975-1986	Chevrolet K5 Blazer
1959-1961	Chevrolet Kingswood
1969-1972	Chevrolet Kingswood
1973-1976	Chevrolet Laguna
1964-1967	Chevrolet Malibu
1973-1983	Chevrolet Malibu
1970-1986	Chevrolet Monte Carlo
1975-1979	Chevrolet Monza
1955-1961	Chevrolet Nomad
1969-1979	Chevrolet Nova
1955-1957	Chevrolet One-Fifty Series
1959-1961	Chevrolet Parkwood
1955-1958	Chevrolet Sedan Delivery
1955-1966	Chevrolet Suburban

---
