Turbo Exhaust Manifold; Fits w/Common LS Engine Swaps; Right; Passenger Side Only; 1.625 in. Tubing; 3 in. Collector; Incl. Hardware; Natural Finish;

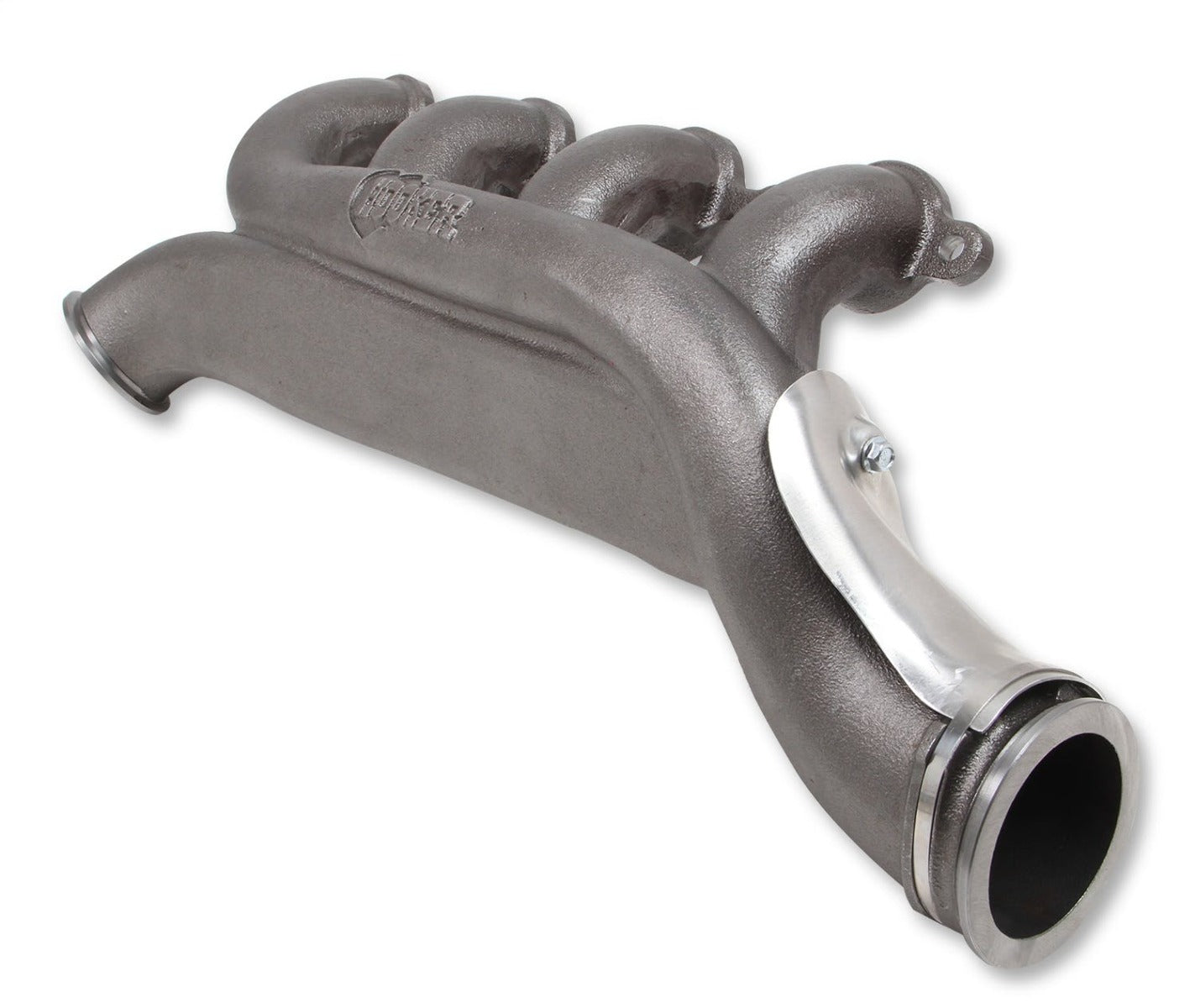

Holley's new LS Turbo Exhaust Manifolds are made from cast iron and allow a simpler and easier way to add a turbo to your muscle car. These manifolds are made from High-Silicon-Moly ductile iron and are much more durable & retain more heat than fabricated headers. The manifolds kits include v-band clamps & flanges, heater hose heat shield, and header bolts. A turbo cross-over tube is used to connect the two manifolds (sold separately). Choose the cross-over tube based on the transmission (and bell-housing) for optimal fit and ground clearance. The cross-over tubes are made from 16-gauge, mandrel bent 304 stainless steel and include a flex joint and v-band flanges welded on for an easy bolt-on fit. A universal cross-over component kit is also available for custom applications that need something a little different (requires fabrication & welding). These parts work with most common LS swap parts (i.e. motor mounts, swap oil pan, and accessory drive systems) & provide the basic building blocks needed to complete a custom turbo system for your GM LS engine.
- Designed To Integrate w/Most Common LS Swap Apps/Components
- 3 in. V Band Outlet/2.25 in. V Band Crossover Connections

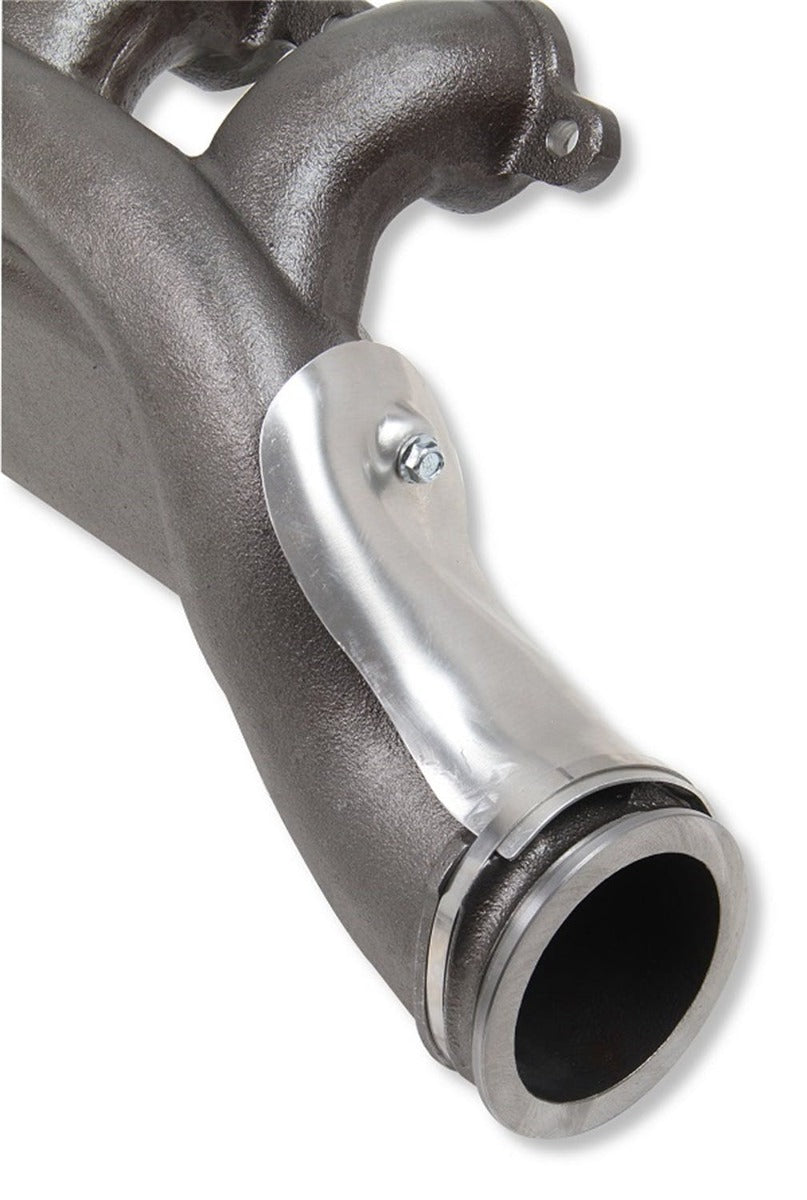

- Heat Shield To Protect Heater Hoses

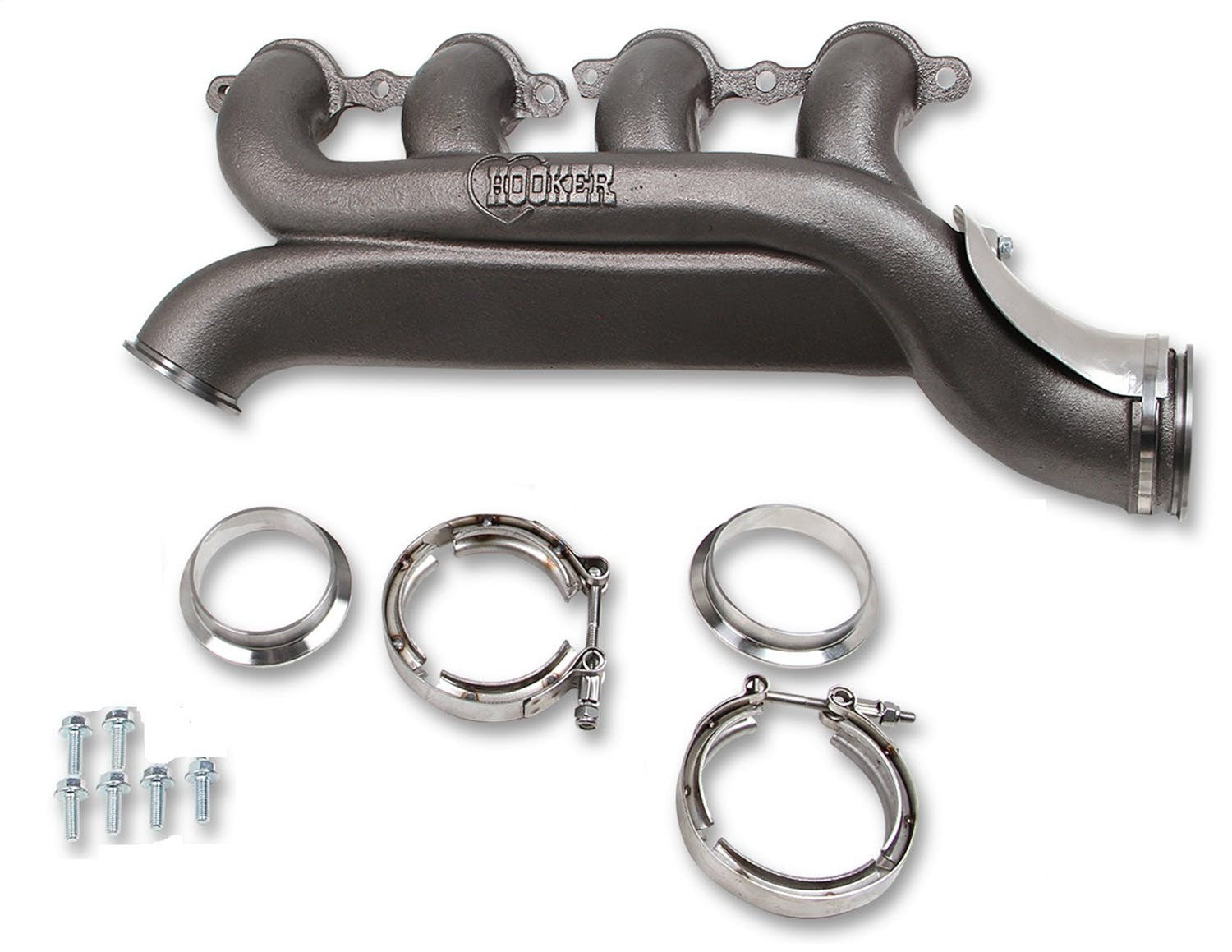

- Incl. Stainless Steel V Band Clamps/Flanges/Header Bolts
- Silicon Moly Ductile Iron Construction Retains Heat/More Durable
Application Summary:
| Year |
Make/Model |
| 2009-2015 |
Cadillac CTS |
| 2012-2015 |
Chevrolet Camaro |
