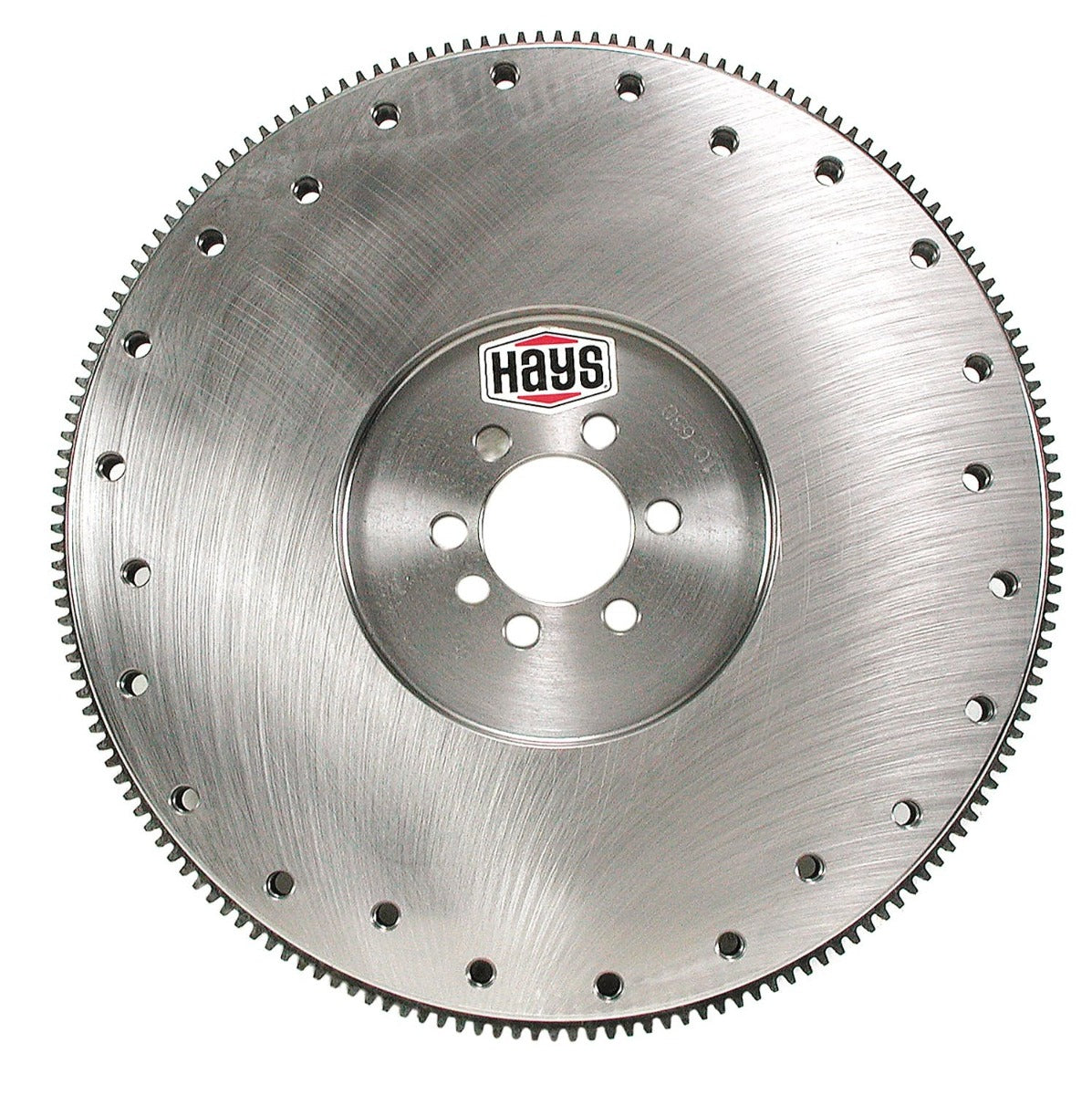

Hays 10-630 FLYWHEEL,LATE CHEV 168T STEEL

Performance Flywheel; Steel; Detroit External Balance; 168 Tooth; 30 lbs.; w/Small Journal;

---

Hays Steel Flywheels are manufactured from certified billet material that will not break up under the stress of high RPM and severe punishment of racing. All Hays flywheels are certified S.F.I. spec 1.1. This 168 tooth flywheel fits the external balance 4.3/5.0/5.7 liter Chevy, 1986 to 1993 models with a one piece real main seal. The flywheel is drilled for 10.5 in Borg-Beck diaphragm, 11 in Borg-Beck diaphragm, long style and Mark XII clutches. Its weighs 30 lbs. Flywheel bolts included. Other applications available.

• S.F.I. 1.1 Certified
• Fits External Balance 4.3/5.0/5.7L Chevy
• 168 Tooth Flywheel
• Drilled 10.5 In And 11 In Clutches
• Weighs 30 Lbs
• Limited 90 Day Warranty

---

Application Summary:

Year	Make/Model
1991-1993	Buick Commercial Chassis
1986-1987	Buick Regal
1991-1993	Buick Roadmaster
1990-1992	Cadillac Brougham
1992-1993	Cadillac Commercial Chassis
1993	Cadillac Fleetwood
1987-1993	Chevrolet Blazer
1986	Chevrolet C10
1986	Chevrolet C10 Suburban
1988-1993	Chevrolet C1500
1992-1993	Chevrolet C1500 Suburban
1986	Chevrolet C20
1986	Chevrolet C20 Suburban
1988-1993	Chevrolet C2500
1992-1993	Chevrolet C2500 Suburban
1986	Chevrolet C30
1988-1993	Chevrolet C3500
1986-1992	Chevrolet Camaro
1986-1993	Chevrolet Caprice
1991-1993	Chevrolet Commercial Chassis
1986-1993	Chevrolet Corvette
1986-1987	Chevrolet El Camino
1986-1993	Chevrolet G10
1986-1993	Chevrolet G20
1986-1993	Chevrolet G30
1986	Chevrolet K10
1986	Chevrolet K10 Suburban
1988-1993	Chevrolet K1500
1992-1993	Chevrolet K1500 Suburban
1986	Chevrolet K20
1986	Chevrolet K20 Suburban
1988-1993	Chevrolet K2500
1992-1993	Chevrolet K2500 Suburban
1986	Chevrolet K30
1988-1993	Chevrolet K3500
1986	Chevrolet K5 Blazer
1986-1988	Chevrolet Monte Carlo
1987	Chevrolet R10
1987-1988	Chevrolet R10 Suburban
1989-1991	Chevrolet R1500 Suburban
1987-1988	Chevrolet R20
1987-1988	Chevrolet R20 Suburban
1989	Chevrolet R2500
1989-1991	Chevrolet R2500 Suburban
1987-1988	Chevrolet R30
1989-1991	Chevrolet R3500
1987	Chevrolet V10
1987-1988	Chevrolet V10 Suburban
1989-1991	Chevrolet V1500 Suburban
1987	Chevrolet V20
1987-1988	Chevrolet V20 Suburban
1989-1991	Chevrolet V2500 Suburban
1987-1988	Chevrolet V30
1989-1991	Chevrolet V3500
1993	Excalibur Limited
1986-1989	Excalibur Phaeton
1986	GMC C1500
1988-1993	GMC C1500
1986	GMC C1500 Suburban
1992-1993	GMC C1500 Suburban
1986	GMC C2500
1988-1993	GMC C2500
1986	GMC C2500 Suburban
1992-1993	GMC C2500 Suburban
1986	GMC C3500
1988-1993	GMC C3500
1986-1987	GMC Caballero
1986-1993	GMC G1500
1986-1993	GMC G2500
1986-1993	GMC G3500
1986-1991	GMC Jimmy
1986	GMC K1500
1988-1993	GMC K1500
1986	GMC K1500 Suburban
