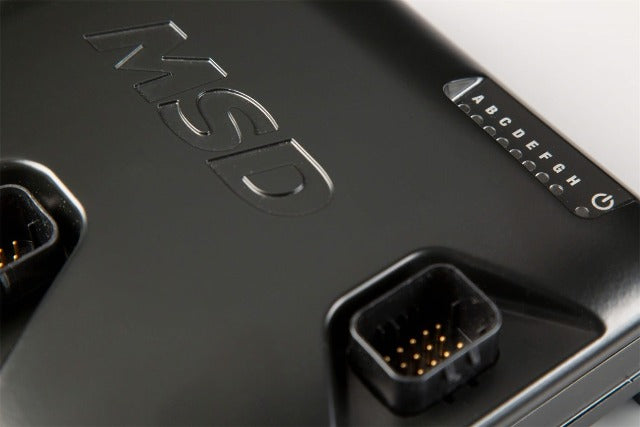

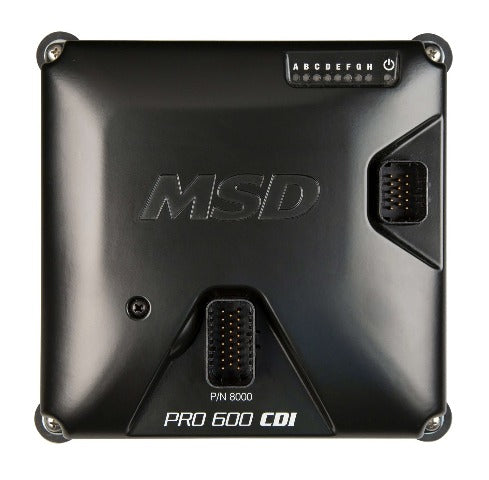

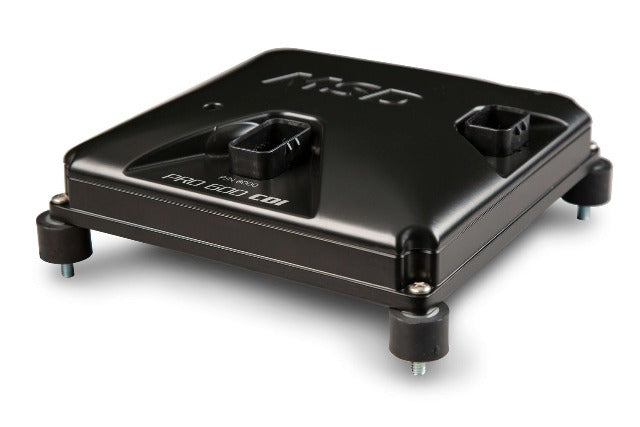

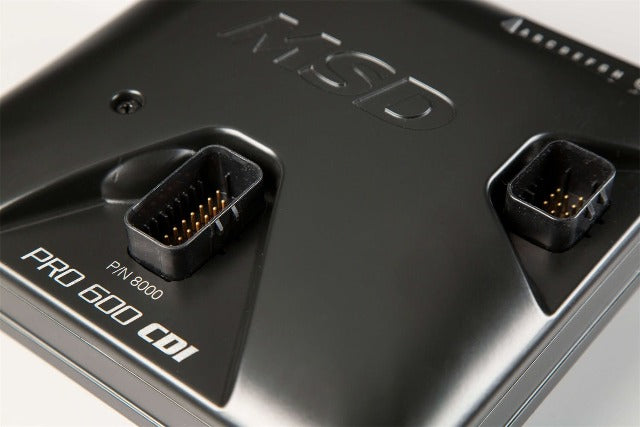

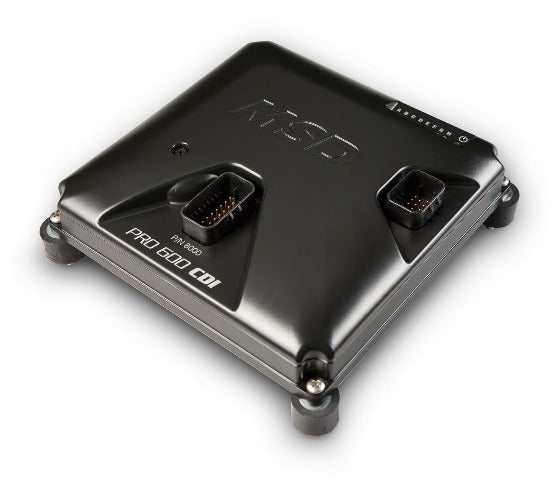

Pro 600 Capacitive Discharge Ignition; 8 Channel; For High Cylinder Pressure/High Horsepower Engines Running Coil Near Plug Ignition;
Introducing MSD's PRO 600 CDI 8-channel capacitive discharge ignition. Designed for coil-near-plug engine management systems such as Holley EFI, GM LS platforms, and most other EFI systems, the PRO 600 is also capable of easily converting any distributor type ignition into a coil-near-plug system.
- Eight Outputs Of Up To 680 Mj Of Energy
- 6 Volts Minimum Required For Starting And Running
- 12 Volts Minimum Required For 600 Mj Operation
- Maximum Operating Voltage 22V
- Direct Plugin To Holley Efi Systems
- Compatible With Most Efi Systems
- Including 5V Or 12V Drivers
- Reverse Battery Protection
- Diagnostic Leds Help Troubleshoot Issues Should They Arise

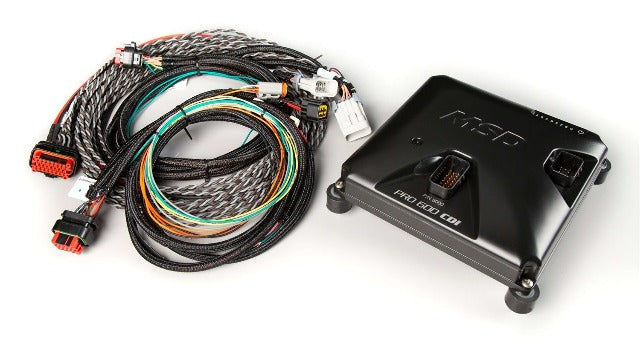

- All Necessary Wiring Harnesses Included
- 50 Kilovolts Output Voltage When Used With Msd Suggested Coils
- Spark Duration Of Greater Than 300 Microseconds
Application Summary:
| Year |
Make/Model |
| Pro |
Mod to Pro Street |
| or |
yanking a sled in the dirt with a pulling truck |
| Eight |
outputs of up to 680 mJ of energy |
