Pro Mag Generator Band Clamp; For Generator PN[81394]; Counter Clock Wise Rotation; Big Cap;

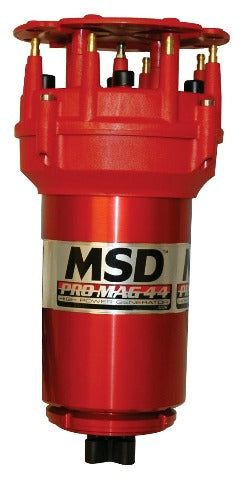

The Pro Mag 44 is the mother of all magnetos. With no magnets to recharge, no points to replace and by producing an amazing 44 A of primary current, it's no wonder that the Pro Mag 44 is the choice of top fuel dragster and funny car teams! The 44 utilizes a proprietary combination of rare earth magnets and windings to produce this incredible energy. To accurately trigger all of this energy, a magnetic pickup is mounted in the lower base of the generator and is triggered by one of eight precision paddles on a reluctor mounted to a 0.500 In. shaft. This pickup replaces weak and inaccurate points and never requires replacement or adjusting. When the pickup is triggered, the signal is sent to the electronic points box where the spark duration is controlled then directed to the 44's coil. The design also allows you to incorporate optional accessories such as a crank trigger, timing retard control or a rev limiter for improved consistency and safety.
- Pro Mag Generator Band Clamp
