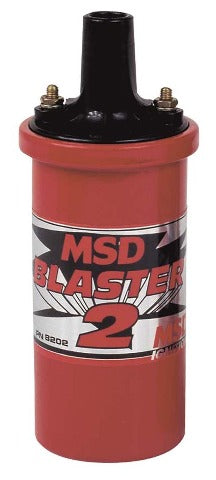

MSD Performance 8202 Blaster 2 Coil, Hi-Performance

Blaster 2 Ignition Coil; High Performance; w/MSD 6 Series; 8 mH Inductance; 45000 Max Volts; 140mA Peak Current; 350 uS Spark Duration; 100:1 Turns Ratio; Red;

---

If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD blaster ignition, MSD 5, 6 or 7, the blaster coil line is the right choice. All of the blaster coils are designed for improved spark output. Special 100:1 windings are used to provide maximum build-up of voltage. These windings are held secure and kept cool in an oil filled metal canister. The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark. There are several versions of the blaster coil available. All of them have the same internal specifications, but have different housings or components. Each blaster coil can be used with a stock ignition, blaster ignition, MSD 5, 6 or 7 ignition control. Most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application.

• Improved output coil for electronic ignitions
• Works w/Blaster Ignition Or MSD 5/6/7 Series
• Ballast Resistor Required If Used w/Stock Points Ignition
• Alkyd tower w/high dielectric properties lessens carbon tracking
• 100:1 Turns Ratio
• Lower primary resistance produces high voltage output
• Metal Canister Is Filled w/Premium Grade Oil For Cooling
• CARB E.O. Approved
• Available In Red And Black

---

Application Summary:

Year	Make/Model
1960-1974	American Motors Ambassador
1967-1968	American Motors American
1968-1970	American Motors AMX
1978-1979	American Motors AMX
1963-1966	American Motors Classic
1978-1979	American Motors Concord
1972-1976	American Motors Gremlin
1970-1977	American Motors Hornet
1968-1974	American Motors Javelin
1965-1967	American Motors Marlin
1971-1978	American Motors Matador
1978-1979	American Motors Pacer
1969	American Motors Rambler
1960-1961	American Motors Rebel
1967-1970	American Motors Rebel
1979	American Motors Spirit
1973-1975	Buick Apollo
1971-1973	Buick Centurion
1973	Buick Century
1960-1973	Buick Electra
1985	Buick Electra
1970-1973	Buick Estate Wagon
1965-1967	Buick Gran Sport
1970-1972	Buick GS
1968-1969	Buick GS 350
1968-1969	Buick GS 400
1970-1972	Buick GS 455
1960-1963	Buick Invicta
1960-1973	Buick LeSabre
1977-1979	Buick Opel
1973	Buick Regal
1963-1973	Buick Riviera
1961-1972	Buick Skylark
1961-1969	Buick Special
1964-1972	Buick Sportwagon
1963-1970	Buick Wildcat
1965-1973	Cadillac Calais
1960-1974	Cadillac DeVille
1960-1973	Cadillac Eldorado
1965-1974	Cadillac Fleetwood
1960-1964	Cadillac Series 60 Fleetwood
1960-1964	Cadillac Series 62
1960-1964	Cadillac Series 75 Fleetwood
1961-1974	Chevrolet Bel Air
1961-1972	Chevrolet Biscayne
1969-1973	Chevrolet Blazer
1969-1972	Chevrolet Brookwood
1961-1974	Chevrolet C10 Pickup
1967-1974	Chevrolet C10 Suburban
1961-1974	Chevrolet C20 Pickup
1967-1974	Chevrolet C20 Suburban
1961-1974	Chevrolet C30 Pickup
1967-1974	Chevrolet Camaro
1966-1976	Chevrolet Caprice
1964-1973	Chevrolet Chevelle
1962-1968	Chevrolet Chevy II
1961-1974	Chevrolet Corvette
1964-1974	Chevrolet El Camino
1964-1974	Chevrolet G10 Van
1967-1974	Chevrolet G20 Van
1970-1974	Chevrolet G30 Van
1961-1974	Chevrolet Impala
1961-1974	Chevrolet K10 Pickup
1967-1972	Chevrolet K10 Suburban
1961-1974	Chevrolet K20 Pickup
1967-1973	Chevrolet K20 Suburban
1968-1974	Chevrolet K30 Pickup

---
