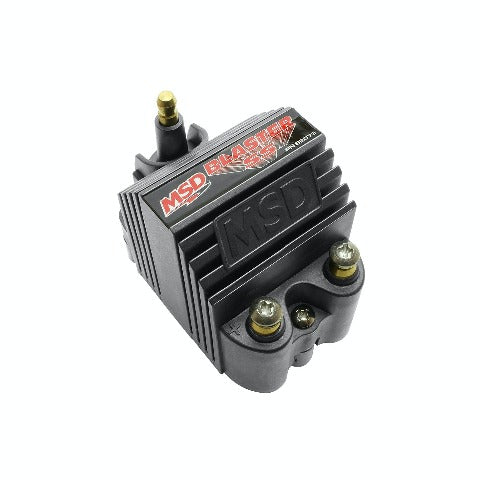

Blaster SS Ignition Coil; Compact Design; 6.9 mH Inductance; 300 mA Peak Current; 220 uS Spark Duration; 70:1 Turns Ratio; Black;
Don't let the compact size of the blaster SS Coil fool you, because it is packed with performance. The efficient e-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 series ignition, the blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts. The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The blaster SS features brass terminals and a sturdy rynite housing. It is supplied with a 90 degree boot, terminal and vibration mounts. A great addition to CD ignitions and some stock applications.
- Improved output coil for electronic ignitions and MSD Ignitions
- Efficient winding design and assembly creates a compact housing
- Primary and secondary windings are encased in Ciba polyurethane
- 70:1 Turns Ratio
- Lower primary resistance produces high voltage output
- Dupont Rynite housing w/tall tower and brass primary terminals
- CARB E.O. Approved
Application Summary:
| Year |
Make/Model |
| BLASTER |
SS |
| BLACK |
COIL |
