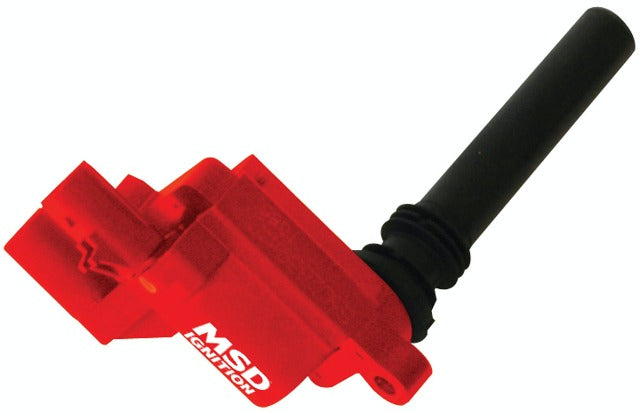

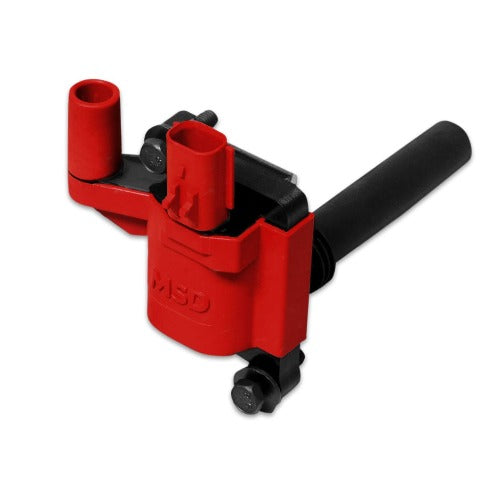

Hemi Coil-On-Plug Direct Ignition Coil; Direct Bolt-In To Factory Connectors; 30000 Max Voltage; 1150 mS Spark Duration; 62mJ Spark Energy; 63:1 Turns Ratio; Red; Single;
Fire up your late model hemi with a set of MSD's blaster coils. The coils are a direct bolt-in and are spec'd with superior materials and winding ratios to improve the output of the coil while retaining the factory fit.
- Improved High RPM Operation
- Patented Winding Design and Materials
- Direct Bolt-In to Factory Connectors
- Turns Ratio: 63.1
- Lower primary resistance produces high voltage output
- Primary Resistance: .6 ohms
- Secondary Resistance: 5.56K ohms
- Inductance: 4.2 mH
- Secondary Current (mA): 72 mA
- Spark Duration: 1150 mS
- Energy (mJ): 62 mJ
- Maximum Voltage: 30
- 000
Application Summary:
| Year |
Make/Model |
| 2005 |
Chrysler 300 |
| 2004-2005 |
Dodge Durango |
| 2005 |
Dodge Magnum |
| 2003-2005 |
Dodge Ram 1500 |
| 2003-2005 |
Dodge Ram 2500 |
| 2003-2005 |
Dodge Ram 3500 |
