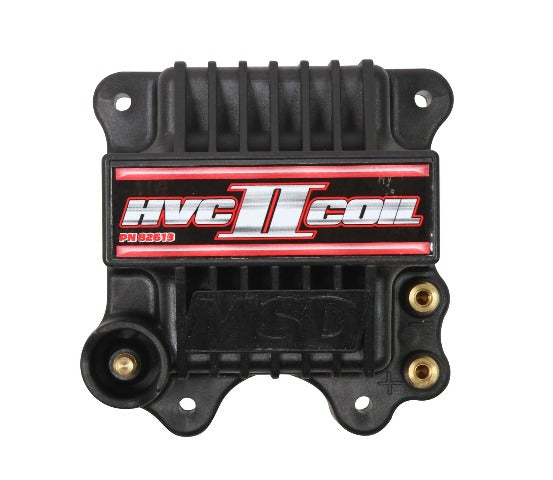

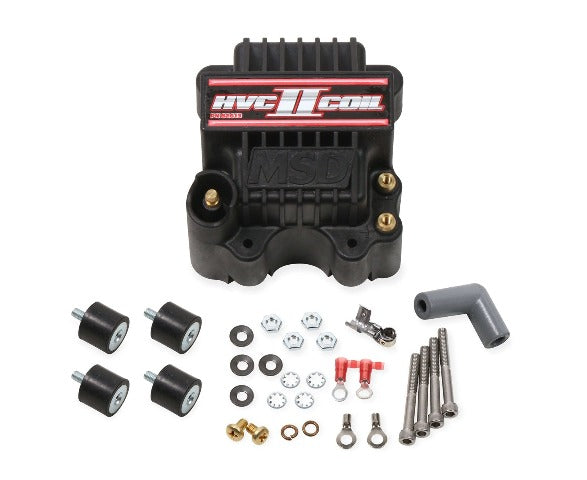

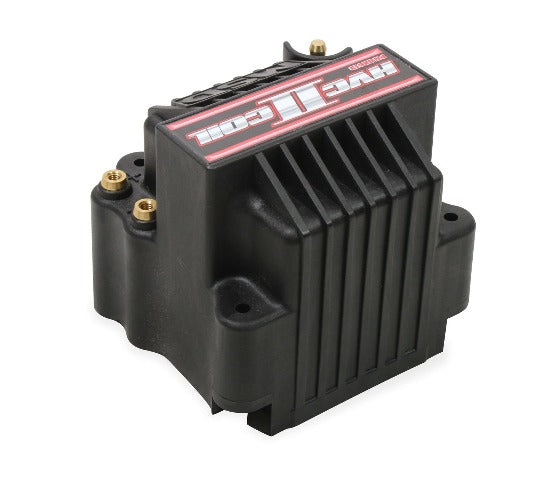

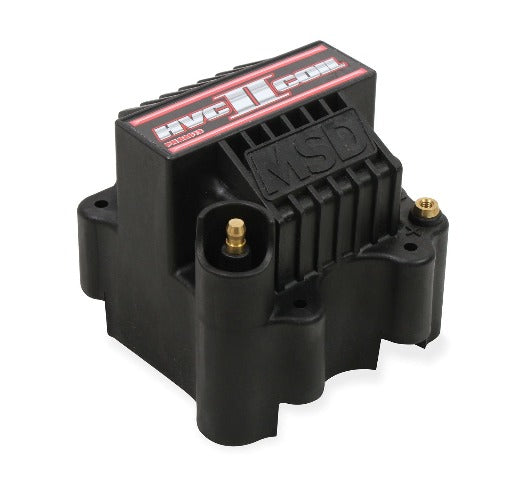

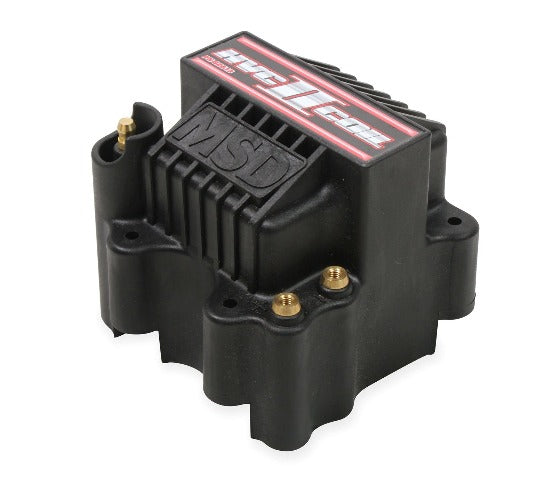

HVC-II Ignition Coil; For MSD7 / 8 Series; Incl. Coil/Mounts/Hdw; 0.250 mH Inductance; 45000 Max Volts; 2 amps Peak Current; 150uS Spark Duration; 70:1 Turns Ratio; Black;
The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.
- For racing applications w/MSD 7 or 8 Series Ignition Control
- U-Core Winding Design
- 70:1 Turns Ratio
- Tough Rigid Housing w/Isolated Tower
- Low Resistance Terminals

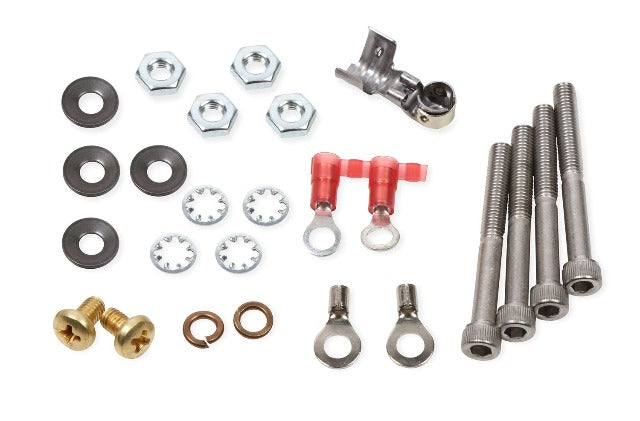

- Rubber Shock Mounts
