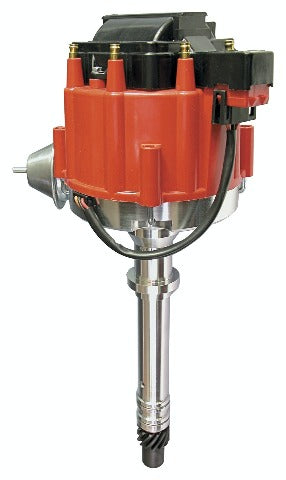

Pro-Billet Distributor; GM HEI Distributors w/4-Pin Ignition Module; Iron Gear; Red;
The Chevrolet HEI distributor is a favorite for muscle cars, street rods and even circle track racers. The integrated coil keeps under mount wiring clean, and for race cars, the idea of running one wire to the distributor keeps things simple. However, when it comes to performance, the stock HEI falls short. MSD answers the need for a strong, accurate and high performance HEI with our Pro-Billet HEI. The distributor is supplied with our digital HEI module and coil so there is plenty of spark energy combined with improved dwell and timing control. Tig welded on top of the distributor shaft is MSD's adjustable centrifugal advance assembly. Three sets of springs and four stop bushings let you dial in up to 24 different timing curves to match your driving needs. Plus, there's a vacuum advance for those concerned with economy. All of this is assembled around a precision and great looking CNC machined housing.
The Chevrolet HEI distributor is a favorite for muscle cars, street rods and even circle track racers. The integrated coil keeps under mount wiring clean, and for race cars, the idea of running one wire to the distributor keeps things simple. However, when it comes to performance, the stock HEI falls short. MSD answers the need for a strong, accurate and high performance HEI with our Pro-Billet HEI. The distributor is supplied with our digital HEI module and coil so there is plenty of spark energy combined with improved dwell and timing control. Tig welded on top of the distributor shaft is MSD's adjustable centrifugal advance assembly. Three sets of springs and four stop bushings let you dial in up to 24 different timing curves to match your driving needs. Plus, there's a vacuum advance for those concerned with economy. All of this is assembled around a precision and great looking CNC machined housing.
- Complete performance HEI distributor upgrade for Chevy V8 engines
- QPQ coated polished steel shaft
- guided by sealed ball bearings
- Supplied w/Brass Terminal Distributor Cap And Rotor
- Full Spark Energy Output To 9000 Rpm
- An 8.5 amp
- single spark
- inductive discharge ignition module
- Includes MSD PN[83647] and MSD HEI Coil PN[8225]
- Special oil tract improves lubrication to the dist./cam gear
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mech. advance assem. can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel
- QPQ coated for friction reduction
Application Summary:
Year | Make/Model |
---|---|
1977-1980 | Buick Century |
1978 | Buick LeSabre |
1977-1980 | Buick Regal |
1977-1979 | Buick Skylark |
1975 | Chevrolet Bel Air |
1975-1986 | Chevrolet C10 |
1975-1986 | Chevrolet C10 Suburban |
1975-1986 | Chevrolet C20 |
1975-1986 | Chevrolet C20 Suburban |
1975-1986 | Chevrolet C30 |
1975-1986 | Chevrolet Camaro |
1975-1986 | Chevrolet Caprice |
1975-1981 | Chevrolet Corvette |
1975-1986 | Chevrolet El Camino |
1975-1986 | Chevrolet G10 |
1975-1986 | Chevrolet G20 |
1974 | Chevrolet G20 Van |
1975-1986 | Chevrolet G30 |
1975-1985 | Chevrolet Impala |
1975-1986 | Chevrolet K10 |
1975-1986 | Chevrolet K10 Suburban |
1975-1986 | Chevrolet K20 |
1975-1981 | Chevrolet K20 Suburban |
1983-1986 | Chevrolet K20 Suburban |
1977-1986 | Chevrolet K30 |
1975-1986 | Chevrolet K5 Blazer |
1975-1976 | Chevrolet Laguna |
1975-1983 | Chevrolet Malibu |
1975-1986 | Chevrolet Monte Carlo |
1975-1979 | Chevrolet Monza |
1975-1979 | Chevrolet Nova |
1975-1978 | GMC C15 |
1975-1978 | GMC C15 Suburban |
1979-1986 | GMC C1500 |
1979-1986 | GMC C1500 Suburban |
1975-1978 | GMC C25 |
1975-1978 | GMC C25 Suburban |
1979-1986 | GMC C2500 |
1979-1986 | GMC C2500 Suburban |
1975-1978 | GMC C35 |
1979-1986 | GMC C3500 |
1978-1986 | GMC Caballero |
1975-1978 | GMC G15 |
1979-1986 | GMC G1500 |
1975-1978 | GMC G25 |
1979-1986 | GMC G2500 |
1975-1978 | GMC G35 |
1979-1988 | GMC G3500 |
1975-1986 | GMC Jimmy |
1975-1978 | GMC K15 |
1975-1978 | GMC K15 Suburban |
1979-1986 | GMC K1500 |
1979-1986 | GMC K1500 Suburban |
1975-1978 | GMC K25 |
1975-1978 | GMC K25 Suburban |
1979-1986 | GMC K2500 |
1979-1986 | GMC K2500 Suburban |
1977-1978 | GMC K35 |
1979-1986 | GMC K3500 |
1975-1977 | GMC Sprint |
1977 | Oldsmobile Custom Cruiser |
1978-1980 | Oldsmobile Cutlass |
1978-1980 | Oldsmobile Cutlass Calais |
1980 | Oldsmobile Cutlass Cruiser |
1982 | Oldsmobile Cutlass Cruiser |
1978-1980 | Oldsmobile Cutlass Salon |
1978-1980 | Oldsmobile Cutlass Supreme |
1977 | Oldsmobile Delta 88 |
1977-1979 | Oldsmobile Omega |
1977-1979 | Oldsmobile Starfire |
1983-1986 | Pontiac Bonneville |
1977-1986 | Pontiac Firebird |
1978-1980 | Pontiac Grand Am |
1977-1980 | Pontiac Grand LeMans |
1978-1980 | Pontiac Grand Prix |
