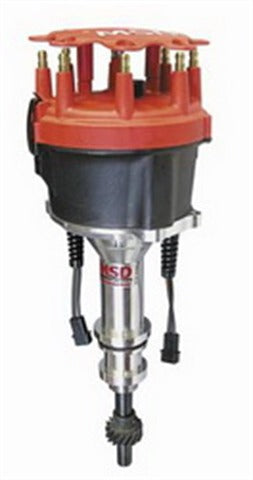

Pro-Billet Distributor; Incl. Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition; Dual Pickup; 351W; Iron Gear;
For demanding Ford racing applications, MSD's Pro-Billet dual pick-up DIS are the answer. Each distributor features a billet housing that is machined from 6061-T6 aluminum using computer controlled CNC machining technology. Additional features include a fully adjustable mechanical advance consisting of a hardened advance cam, chromoly weights and weight pins that are Tig-welded to the advance plate. The advance assembly can also be locked-out with no welding. Two high output magnetic trigger pick-ups are bolted to the billet base of the distributor so you can have a secondary ignition trigger source for a backup ignition and coil.
- Dual magnetic pickups are 180 deg. apart
- CNC machined billet aluminum housing and billet aluminum base
- Mech. advance assem. can be locked out for crank trigger systems
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Advance plate and weights are fine blanked from chrome moly steel
- Easy-to-adjust mech. advance w/supplied springs and stop bushings
- Provides a redundant ignition system for racing applications
- Must Be Used w/An MSD 6/7/8/10 Series Ignition
- Supplied w/Cap-A-Dapt Distributor Cap And Rotor
- Steel shaft is QPQ coated and guided by a sealed ball bearing
