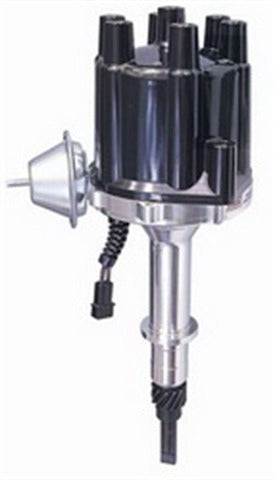

Pro-Billet Distributor; Incl. Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition;
There is a big following of AMC enthusiasts that are cruising a 401 equipped Javelin or trail blazing in a rock crawling Jeep with an inline 6-cylinder! MSD offers two Pro-Billet Distributors to deliver accurate trigger signals and are maintenance-free! This pick-up never requires adjustment and simply plugs right into an MSD Ignition Control. Just above it and under our strong race rotor is an adjustable mechanical advance assembly. The chro-moly weights of this assembly slide on nylon bushings producing smooth movement of the timing. You can easily adjust the curve to match your engine's requirements with the supplied springs and stop bushings. Each precision CNC-machined billet aluminum housing features a sealed ball-bearing and long sintered bushing for stability at any rpm and increased endurance. An oversized steel shaft receives a QPQ coating to reduce friction and prevent corrosion. Both distributors are supplied with a high quality cap, rotor and gear. There is even a vacuum advance canister for street cruising economy!
- Designed For Street/Performance Use w/Mech or Vacuum Advance
- Supplied w/Socket Style Distributor Cap And Rotor
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mech. advance assem. can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel
- QPQ coated for friction reduction
- QPQ coated polished steel shaft
- guided by sealed ball bearings
- Maintenance-free magnetic pickup and precision reluctor
- Creates stable trigger signals throughout the rpm range
- CNC machined billet aluminum housing and billet aluminum base
- Must Be Used w/An MSD Ignition Control
Application Summary:
| Year |
Make/Model |
| 1974-1983 |
Jeep Cherokee |
| 1972-1978 |
Jeep CJ5 |
| 1972-1975 |
Jeep CJ6 |
| 1976-1978 |
Jeep CJ7 |
| 1972-1973 |
Jeep Commando |
| 1972-1974 |
Jeep DJ5 |
| 1965-1967 |
Jeep Gladiator |
| 1984-1986 |
Jeep Grand Wagoneer |
| 1965-1971 |
Jeep J-100 |
| 1968-1973 |
Jeep J-2500 |
| 1968-1970 |
Jeep J-2600 |
| 1972-1973 |
Jeep J-2600 |
| 1968-1969 |
Jeep J-2700 |
| 1968-1970 |
Jeep J-3500 |
| 1968-1970 |
Jeep J-3600 |
| 1968-1970 |
Jeep J-3700 |
| 1968 |
Jeep J-3800 |
| 1974-1976 |
Jeep J10 |
| 1978-1987 |
Jeep J10 |
| 1974 |
Jeep J20 |
| 1976 |
Jeep J20 |
| 1981-1985 |
Jeep Scrambler |
| 1972-1973 |
Jeep Wagoneer |
| 1987-1988 |
Jeep Wrangler |
