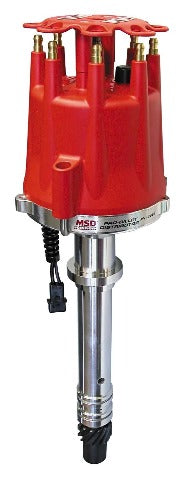

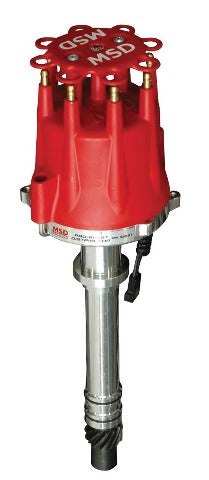

Pro-Billet Distributor; Incl. Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition; Iron Gear; Red;
This is our most popular performance distributor! The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high RPM stability, a .500 In. steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenance free! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application.
- CNC machined billet aluminum housing and billet aluminum base
- Will not accept a vacuum advance canister
- Must Be Used w/An MSD Ignition Control
- Supplied w/HEI style distributor cap/rotor (accepts Cap-A-Dapts)
- O-ring seals can be installed for oil press. control (Mods only)
- Special oil tract improves lubrication to the dist./cam gear
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mech. advance assem. can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel
- QPQ coated for friction reduction
- QPQ coated polished steel shaft
- guided by sealed ball bearings
Application Summary:
| Year |
Make/Model |
| 1975 |
Chevrolet Bel Air |
| 1975-1986 |
Chevrolet C10 |
| 1975-1986 |
Chevrolet C10 Suburban |
| 1975-1986 |
Chevrolet C20 |
| 1975-1986 |
Chevrolet C20 Suburban |
| 1975-1986 |
Chevrolet C30 |
| 1975-1986 |
Chevrolet Camaro |
| 1975-1986 |
Chevrolet Caprice |
| 1975-1981 |
Chevrolet Corvette |
| 1975-1986 |
Chevrolet El Camino |
| 1975-1986 |
Chevrolet G10 |
| 1975-1986 |
Chevrolet G20 |
| 1975-1986 |
Chevrolet G30 |
| 1975-1985 |
Chevrolet Impala |
| 1975-1986 |
Chevrolet K10 |
| 1975-1986 |
Chevrolet K10 Suburban |
| 1975-1986 |
Chevrolet K20 |
| 1975-1986 |
Chevrolet K20 Suburban |
| 1977-1986 |
Chevrolet K30 |
| 1975-1986 |
Chevrolet K5 Blazer |
| 1975-1976 |
Chevrolet Laguna |
| 1975-1983 |
Chevrolet Malibu |
| 1975-1986 |
Chevrolet Monte Carlo |
| 1975-1979 |
Chevrolet Monza |
| 1975-1979 |
Chevrolet Nova |
| 1975-1978 |
GMC C15 |
| 1975-1978 |
GMC C15 Suburban |
| 1979-1986 |
GMC C1500 |
| 1979-1986 |
GMC C1500 Suburban |
| 1975-1978 |
GMC C25 |
| 1975-1978 |
GMC C25 Suburban |
| 1979-1986 |
GMC C2500 |
| 1979-1986 |
GMC C2500 Suburban |
| 1975-1978 |
GMC C35 |
| 1979-1986 |
GMC C3500 |
| 1978-1986 |
GMC Caballero |
| 1975-1978 |
GMC G15 |
| 1979-1986 |
GMC G1500 |
| 1975-1978 |
GMC G25 |
| 1979-1986 |
GMC G2500 |
| 1975-1978 |
GMC G35 |
| 1979-1988 |
GMC G3500 |
| 1975-1986 |
GMC Jimmy |
| 1975-1978 |
GMC K15 |
| 1975-1978 |
GMC K15 Suburban |
| 1979-1986 |
GMC K1500 |
| 1979-1986 |
GMC K1500 Suburban |
| 1975-1978 |
GMC K25 |
| 1975-1978 |
GMC K25 Suburban |
| 1979-1986 |
GMC K2500 |
| 1979-1986 |
GMC K2500 Suburban |
| 1977-1978 |
GMC K35 |
| 1979-1986 |
GMC K3500 |
| 1975-1977 |
GMC Sprint |
