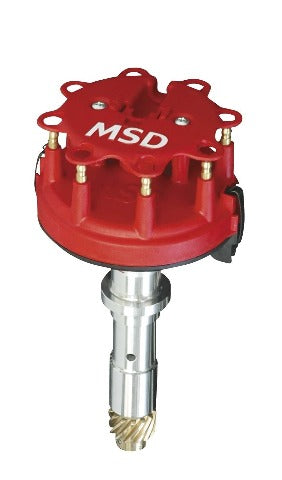

MSD Performance 8558 Distributor, Tall Block Chevy V8, L.P.

Crank Trigger Distributor; Billet Low Profile; Chevy V8 Tall Block; Bronze Gear; Red Distributor Cap;

---

The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs. The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. This includes a large diameter cap with wide spaced terminals and an injection molded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing. Since these distributors are used primarily in racing applications, an oversized steel shaft is responsible for delivering the sparks. This shaft is QPQ coated for friction reduction and receives guidance from a sealed ball-bearing assembly and an extra long, precision sintered bushing for smooth operation. Note: must be used with an MSD crank trigger and ignition control.

• Designed to fit low in the block to clear firewall/intake combos
• O-ring seals can be installed for oil press. control (Mods only)
• Special oil tract improves lubrication to the dist./cam gear
• QPQ coated polished steel shaft
• guided by sealed ball bearings
• Oversized Polished Steel Shaft w/QPQ Coating
• Adj. slip collar mounting flange for engines w/modified deck hts.
• CNC machined billet aluminum housing and Dupont Rynite base
• Red Cap
• Supplied w/Bronze Gear
• Supplied w/Large Diameter HEI Style Distributor Cap And Rotor
• Must Be Used w/An MSD Crank Trigger And MSD Ignition Control

---

Application Summary:

Year	Make/Model
1955-1974	Chevrolet Bel Air
1958-1972	Chevrolet Biscayne
1969-1974	Chevrolet Blazer
1969-1972	Chevrolet Brookwood
1961-1974	Chevrolet C10 Pickup
1967-1974	Chevrolet C10 Suburban
1961-1974	Chevrolet C20 Pickup
1967-1974	Chevrolet C20 Suburban
1961-1974	Chevrolet C30 Pickup
1967-1974	Chevrolet Camaro
1966-1974	Chevrolet Caprice
1964-1973	Chevrolet Chevelle
1963-1968	Chevrolet Chevy II
1955-1972	Chevrolet Corvette
1974	Chevrolet Corvette
1958	Chevrolet Del Ray
1959-1960	Chevrolet El Camino
1964-1974	Chevrolet El Camino
1968-1974	Chevrolet G10 Van
1968-1974	Chevrolet G20 Van
1970-1974	Chevrolet G30 Van
1959-1974	Chevrolet Impala
1961-1974	Chevrolet K10 Pickup
1967-1974	Chevrolet K10 Suburban
1961-1974	Chevrolet K20 Pickup
1967-1974	Chevrolet K20 Suburban
1968-1974	Chevrolet K30 Pickup
1969-1972	Chevrolet Kingswood
1973-1974	Chevrolet Laguna
1964-1967	Chevrolet Malibu
1973-1974	Chevrolet Malibu
1970-1974	Chevrolet Monte Carlo
1969-1974	Chevrolet Nova
1955-1957	Chevrolet One-Fifty Series
1961-1966	Chevrolet Suburban
1969-1972	Chevrolet Townsman
1955-1958	Chevrolet Truck
1960	Chevrolet Truck
1955-1957	Chevrolet Two-Ten Series
1967-1974	GMC C15/C1500 Pickup
1967-1974	GMC C15/C1500 Suburban
1967-1974	GMC C25/C2500 Pickup
1967-1974	GMC C25/C2500 Suburban
1967-1974	GMC C35/C3500 Pickup
1967-1974	GMC G15/G1500 Van
1967-1974	GMC G25/G2500 Van
1971-1974	GMC G35/G3500 Van
1970-1974	GMC Jimmy
1967-1974	GMC K15/K1500 Pickup
1968-1974	GMC K15/K1500 Suburban
1967-1974	GMC K25/K2500 Pickup
1968-1974	GMC K25/K2500 Suburban
1968-1974	GMC K35/K3500 Pickup
1971-1975	GMC Sprint
1971-1972	Pontiac Ventura
