Universal Relay; SPST Waterproof; High Current; w/Socket Harness; 30 Amp Continuous/40 Amp Momentary Rating; 7 in. Long Leads; HD 12 And 18 Gauge Wire;
MSD's waterproof relay is ideal for use on electric fuel pumps, water pumps, cooling fans, off-road lights, and any other application that is exposed to muddy or wet conditions. This relay handles 40 amps momentary and 30 amps for continuous use. The pigtail harness has 7 long leads w/ heavy duty 12 & 18 gauge wire. The connector has the wires molded in rubber and a gasket for a leak proof seal. Ideal for use on marine applications and vehicles that are power-washed out (Jeeps, 4x4 Trucks, UTV's, and dirt track race cars).

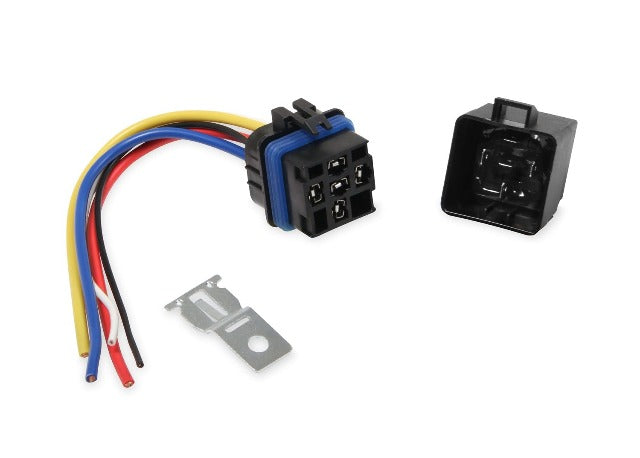

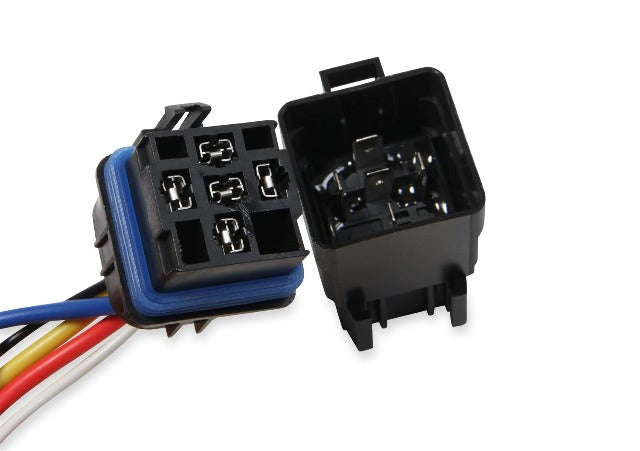

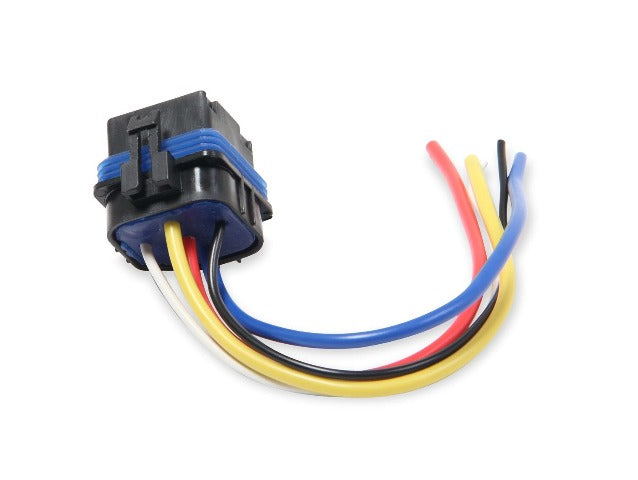

- Waterproof Relay w/Pigtail Harness And Sealed Connector
- 40/30Amp - 30 Amp Continuous And 40 Amp Momentary
- 12V DC
- Works In Normally Open Or Normally Closed Circuits
- Pigtail Wires Are 7 in. Long
- [3] 12 ga. Wires - [2] 18 ga. Wires
- Metal Mounting Bracket Can Be Mounted Anywhere
- Ideal For Marine/Dirt Tack Cars/Off-Road Trucks/Jeeps
